GS700TS Smart Switch Software Administration Manual
4-13 Configuring Switching Settings
v1.0, June 2009
The LACP Configuration screen contains the following field:
• LACP System Priority – Enter the system priority value. The field range is 1-65535. The
field default is 1.
2. Enter the LACP System Priority in the provided field.
3. Click APPLY to update the device.
LACP Port Configuration
The LACP Port Configuration screen provides information and parameters for configuring the
LACP Priority and Timeout fields on interfaces.
To configure LACP port priority:

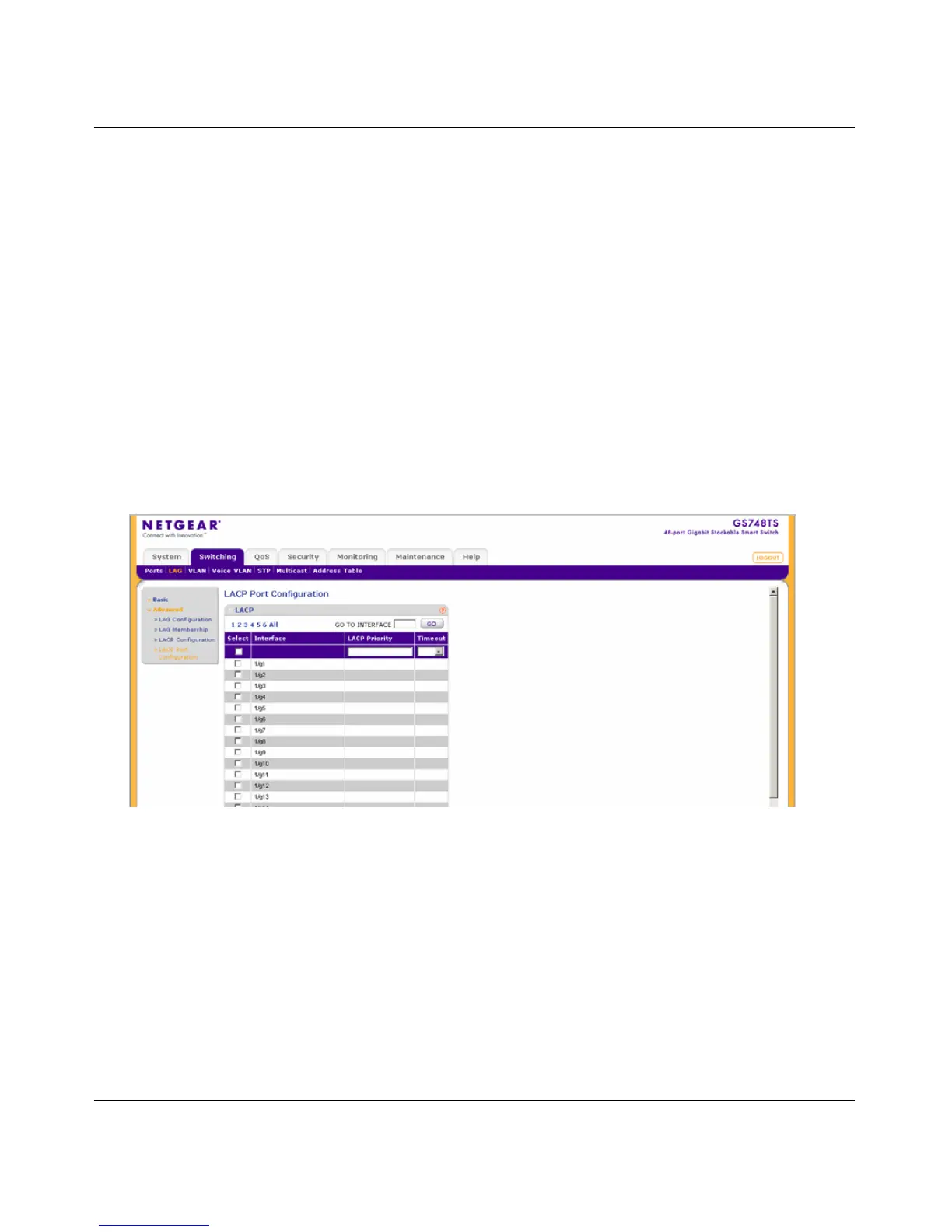

1. Click Switching > LAG > Advanced > LACP Port Configuration. The LACP Port
Configuration screen displays:
The LACP Port Configuration screen contains the following fields:
• Interface – Displays the interface number to which timeout and priority values are
assigned.
• LACP Priority – Enter the LACP port priority value. The field range is 1-65535.
• Timeout – Select the administrative LACP timeout. The possible field values are:
– Long – Indicates a long timeout value (90 seconds).
– Short – Indicates a short timeout value (3 seconds). This is the default.
Figure 4-9
