There are two operational modes for IP Phones:
• IP phones are configured with VLAN-mode as enabled, ensuring that tagged packets are used
for all communications.
• If the IP phone’s VLAN-mode is disabled, the phone uses untagged packets. The phone uses
untagged packets while retrieving the initial IP address through DHCP. The phone eventually
uses the Voice VLAN and starts sending tagged packets.
The Voice VLAN menu contains the following options:
• “Basic”
• “Advanced”
Basic
The Voice VLAN Basic menu contains the following options:
• “Properties”
Properties
The Voice VLAN Basic Properties screen contains information about Voice VLAN on the device,
including the ports enabled and included in the Voice VLAN.
To define Voice VLAN settings:
1. Click Switching > Voice VLAN > Basic > Properties. The Voice VLAN Basic Properties
screen displays:

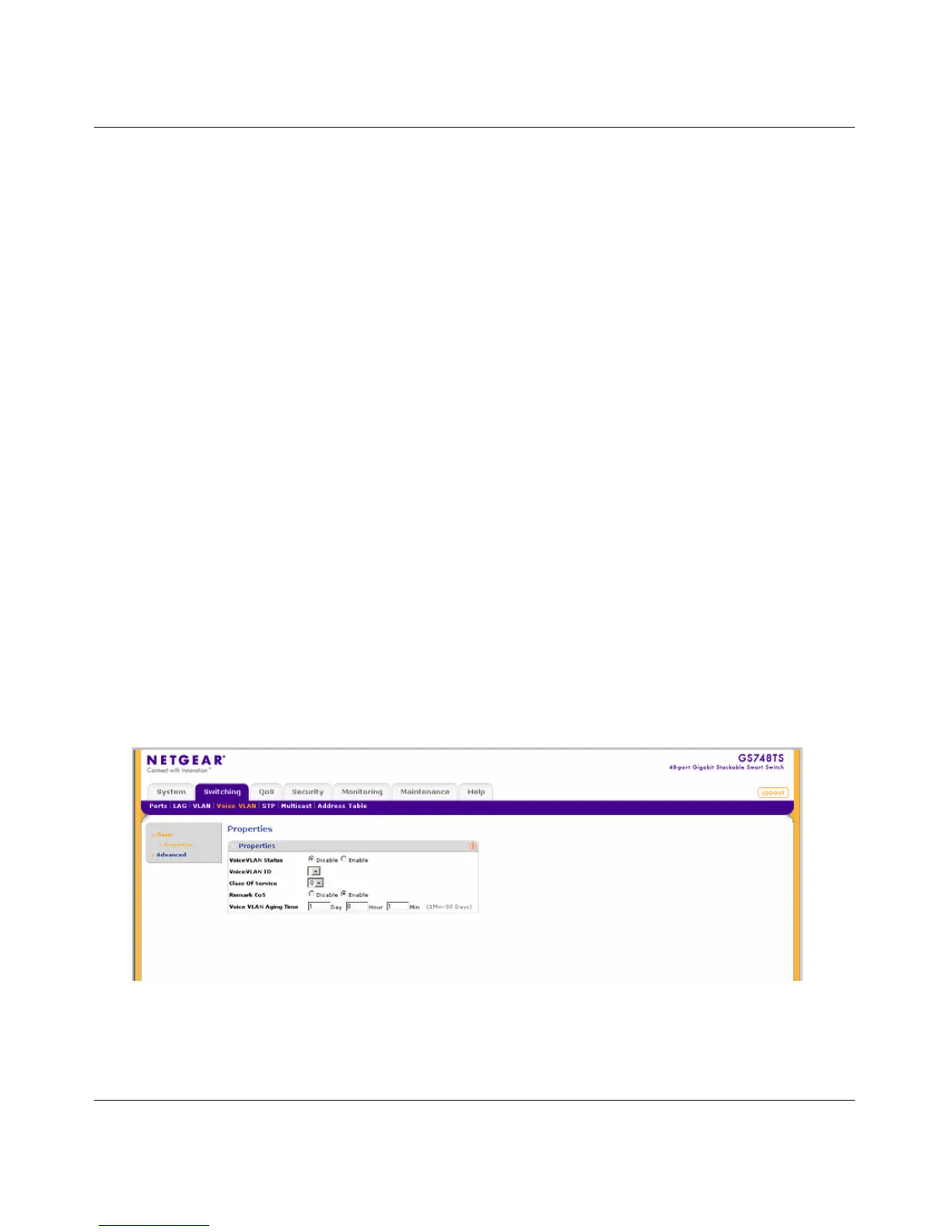

Figure 4-16
