GS700TS Smart Switch Software Administration Manual
3-39 Managing System Settings
v1.0, June 2009
Basic
The LLDP Basic menu contains the following option:
• “LLDP Configuration”
LLDP Configuration
The Basic LLDP Configuration screen allows network managers to assign global LLDP and
LLDP-MED (LLDP - Media Endpoint Discovery) parameters.
To configure LLDP settings:

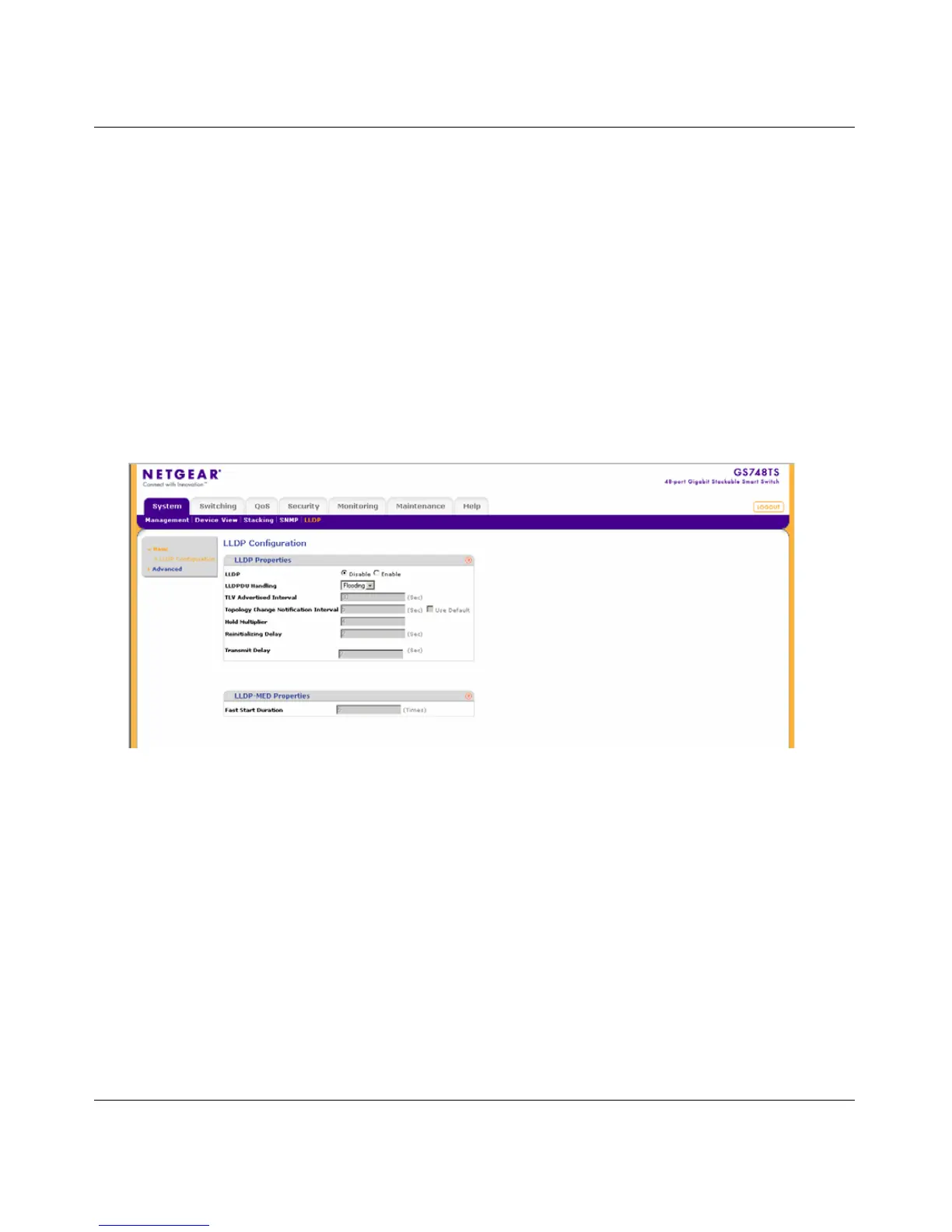

1. Click System > LLDP > Basic > LLDP Configuration. The Basic LLDP Configuration
screen displays:
The Basic LLDP Configuration screen contains the following fields:
LLDP Properties
• LLDP – Select the LLDP global status on the device. The possible field values are:
– Disable – Disables LLDP on the device. This is the default value.
– Enable – Enables LLDP on the device.
• LLDPDU Handling – Select LLDPDU (LLDP Data Unit) packet handling when LLDP is
disabled. The possible field values are:
– Flooding – Indicates LLDPDU packets are flooded to all ports in the system.
– Filtering – Indicates LLDPDU packets are filtered. This is the default.
Figure 3-21
