GS700TS Smart Switch Software Administration Manual
Configuring Switching Settings 4-52
v1.0, June 2009
To query the Basic Address Table:

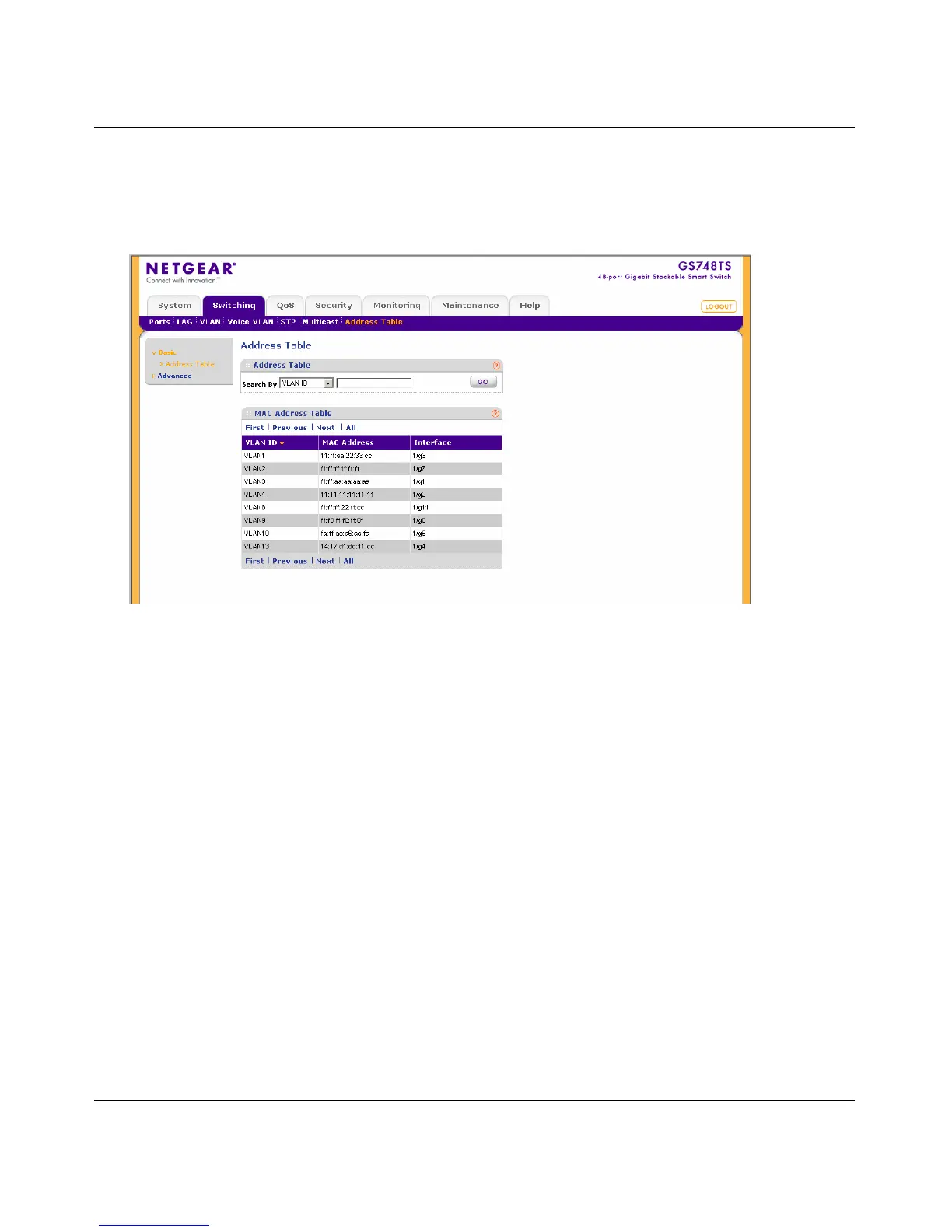

1. Click Switching > Address Table > Basic > Address Table. The Basic Address Table screen
displays:
The Basic Address Table screen contains the following fields:
• Search By – Display the MAC Address list according to selected category and query field.
The possible field values are:
– VLAN ID – Display the MAC Address table entries that relate to the specific VLAN
ID.
– MAC Address – Display the MAC Address table entries that relate to MAC Address.
– Interface – Display the MAC Address table entries that relate to the specific interface.
• VLAN ID – Displays the VLAN ID number to which the entry refers.
• MAC Address – Displays the MAC address to which the entry refers.
• Interface – Displays the interface to which the entry refers.
2. Select the Search By key from the list in the provided field.
3. Enter the value to be searched for in the provided box.
4. Click GO to execute the query.
Figure 4-32
