GS700TS Smart Switch Software Administration Manual
Monitoring the Switch 7-12
v1.0, June 2009

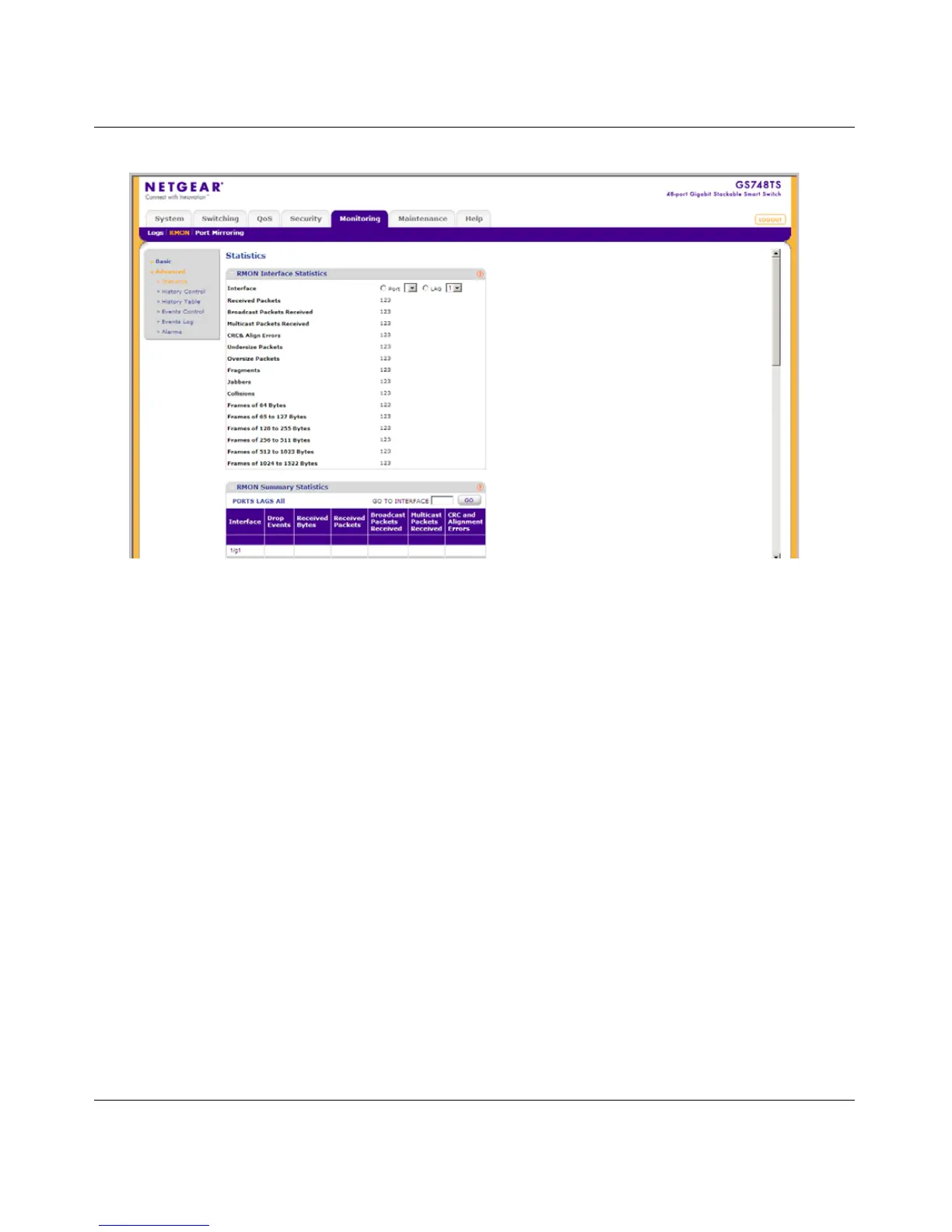

The RMON Advanced Statistics screen contains the following fields:
RMON Interface Statistics
• Interface – Select the device for which statistics are displayed. The possible field values
are:
– Port – Select the specific port for which RMON statistics are displayed.
– LAG – Select the specific LAG for which RMON statistics are displayed.
• Received Bytes – Displays the number of octets received on the interface since the device
was last refreshed. This number includes bad packets and FCS octets, but excludes
framing bits.
• Broadcast Packets Received – Displays the number of good broadcast packets received
on the interface since the device was last refreshed. This number does not include
Multicast packets.
• Multicast Packets Received – Displays the number of good Multicast packets received
on the interface since the device was last refreshed.
• CRC & Align Errors – Displays the number of CRC and Align errors that have occurred
on the interface since the device was last refreshed.
Figure 7-7
