GS700TS Smart Switch Software Administration Manual
3-41 Managing System Settings
v1.0, June 2009
• “LLDP-MED Network Policy”
• “LLDP-MED Port Settings”
• “Local Information”
• “Neighbors Information”
• , “LLDP Statistics”
LLDP Configuration
The Advanced LLDP Configuration screen allows network managers to assign global LLDP and
LLDP-MED (LLDP - Media Endpoint Discovery) parameters.
To configure LLDP settings:

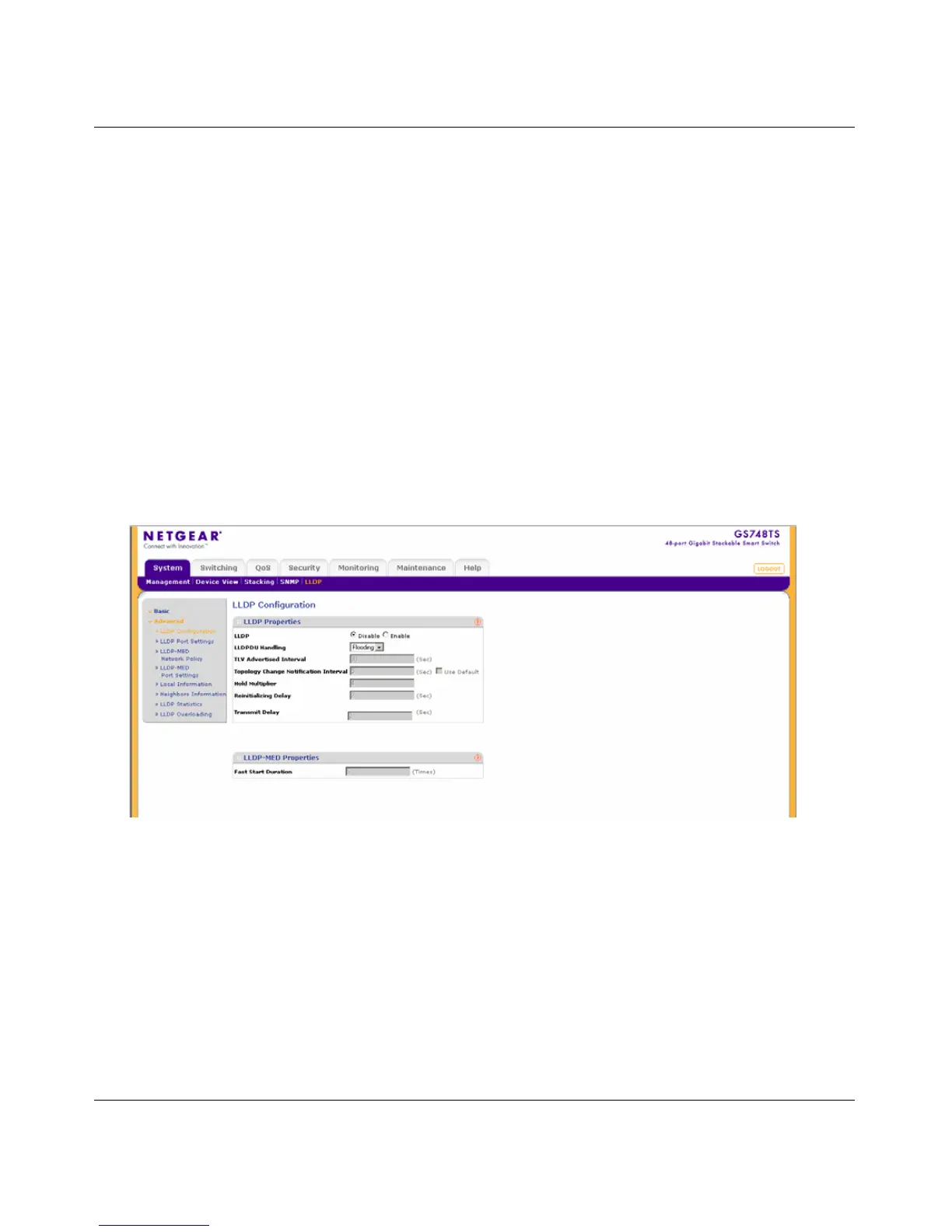

1. Click System > LLDP > Advanced > LLDP Configuration. The Advanced LLDP
Configuration screen displays:
The Advanced LLDP Configuration screen contains the following fields:
LLDP Properties
• LLDP – Select the LLDP global status on the device. The possible field values are:
– Disable – Disables LLDP on the device. This is the default value.
– Enable – Enables LLDP on the device.
Figure 3-22
