Power, Fan, LED mode, PoE Max,
Link/Speed/ACT LEDs
10/100/1000M PoE capable Ethernet Ports
Combo and Dedicated
SFP Ports
Reset Button
and Stack Master LEDs
Factory
Defaults Button
Stack ID LED
Select Button
14 | Chapter 2. Physical Description
GS728TS, GS728TPS, GS752TS, and GS752TPS Smart Switch Hardware Installation Guide

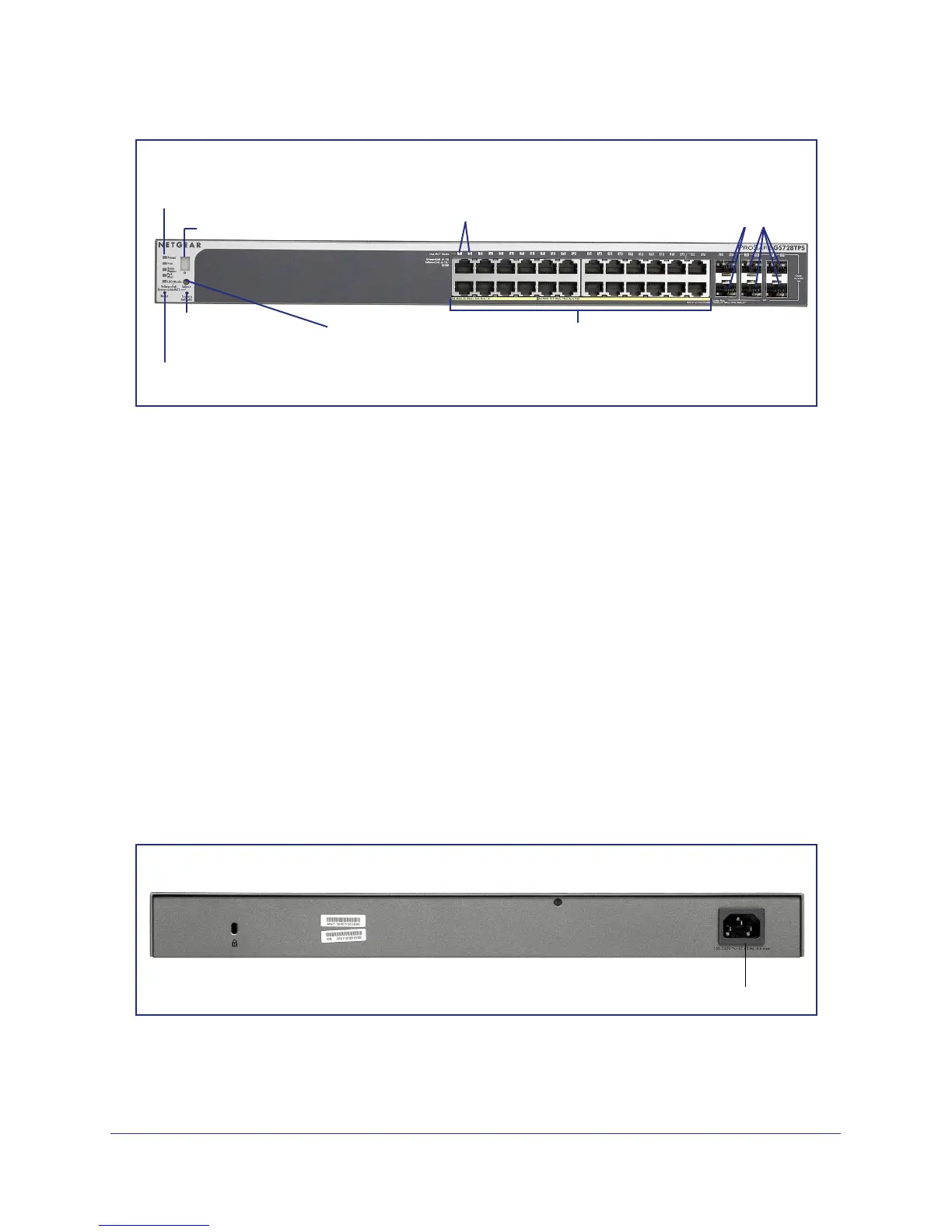

Figure 4. GS728TPS Front Panel
The front panel contains the following:
24 RJ-45 connectors for 10/100/1000 Mbps autosensing Gigabit Ethernet switching ports.
2 Combo ports (port 23 and 24) to support 10/100/1000 Mbps copper or 100M/1G optical
module.
2 dedicated SFP ports (port 25 and 26) to support 1G optical module.
2 dedicated SFP ports (port 27 and 28) to support 1G optical module (uplink) or 2.5G
stacking (via stacking cable).
Up to two of these ports (ports 27 and 28) can alternatively be used as stacking ports
Reset button to restart the device.
Select button to change the working mode of the port LEDs with either PoE Mode or
Ethernet Mode.
Recessed default reset button to restore the device back to the factory defaults.
Link, Speed, and Activity LEDs for each port.
Power, Fan Status, Stack Master, LED mode, PoE Max, and Stack ID LEDs.
Figure 5 illustrates the NETGEAR GS728TPS Smart Switch back panel.
Power Connector
Figure 5. GS728TPS Back Panel
The back panel contains a power connector.
