NETGEAR GS728TS Hardware Installation Guide

``
Green=Link at 1G
Yellow=Link at 10/
100M
Power
Reset
ID
Fan
Stack
Master
Facto ry
Defaults
1
2
3
4
5
6
7
8
9
10
11 13 15 17 19 21
12 2214 16 18 20
23 25 27 29 31 33
24 3426 28 30 32
35 37 39 41 43 45 47
36 38 40 42 44 46 48
GS752TXS
50F
49F
Green=10G Link Yellow=1G
Blink=ACT
SFP
+
52F
51F
Link/Act Mode —
Chapter 4. Installation | 27
GS728TS, GS728TPS, GS752TS, and GS752TPS Smart Switch Hardware Installation Guide

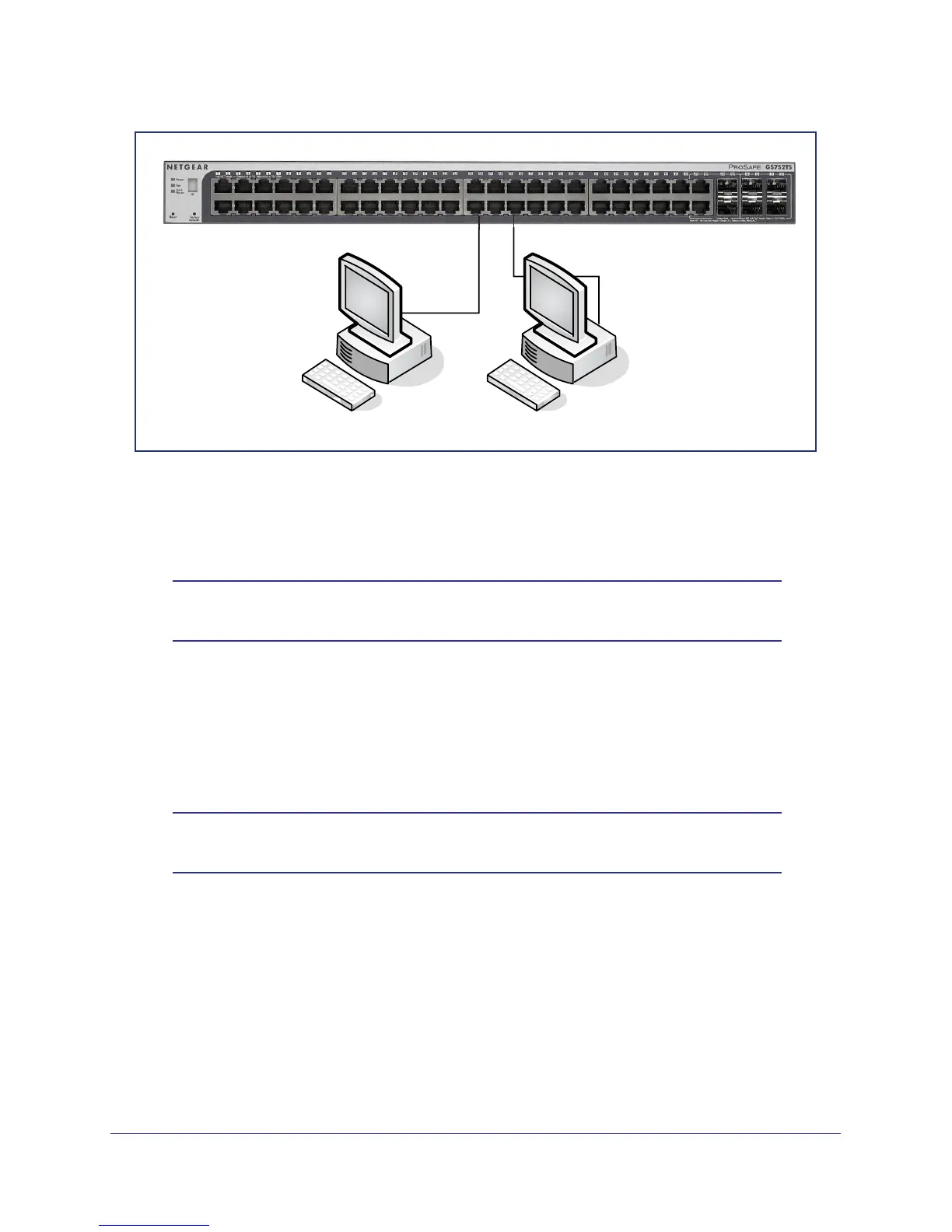

Figure 13. Connecting Devices to the Switch
Connect each PC to an RJ-45 network port on the Switch front panel (Figure 13). Use
Category 5 (Cat5) Unshielded Twisted-Pair (UTP) cable terminated with an RJ-45 connector
to make these connections.
Note: Ethernet specifications limit the cable length between the switch and
the attached device to 100m (328 ft.).
Step 5: Installing an SFP Transceiver Module
The following procedure describes how to install an optional SFP transceiver module into one
of the SFP ports of the switch.
Note: Contact your NETGEAR sales office to buy these modules. If you do
not want to install an SFP module, skip this procedure.
To install an SFP transceiver, insert the transceiver into the SFP port. Press firmly on the
flange of the module to seat it securely into the connector.

NETGEAR GS728TS Specifications

General

Product Type	Managed Switch
Form Factor	Rack-mountable
Switching Capacity	56 Gbps
MAC Address Table Size	16K
PoE	No
Power Supply	Internal
Layer	Layer 3
Operating Temperature	0 to 40 °C
Operating Humidity	90% Max (Non-Condensing)
Ports	28 (24 x 10/100/1000 Mbps + 4 x 1G/10G SFP+)
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	9216 bytes
Dimensions	17.32 x 10.24 x 1.72 in (440 x 260 x 43.7 mm)
