Hardware descriptions of the LED tiles model
with 2.5 Gbps ports
This section describes the switch hardware features for model M4250-12M2XF (SKU
MSM4214X).
Front panel of the LED tiles model
The following figure illustrates the front panel of the LED tiles model with 2.5 Gbps
ports, model M4250-12M2XF.

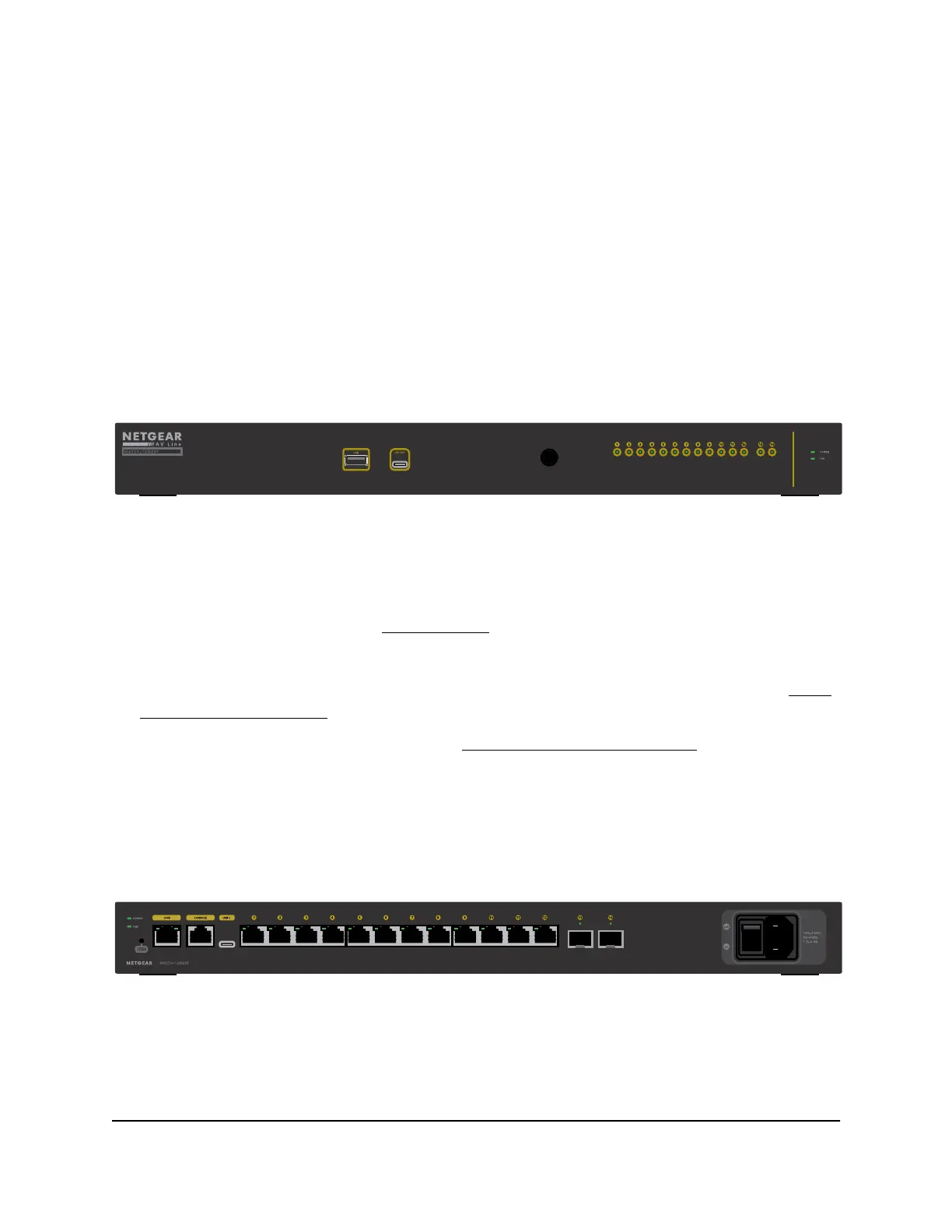

Figure 19. Front panel model M4250-12M2XF
From left to right, the front panel of model M4250-12M2XF provides the following
components, which are clearly named or numbered on the front panel:
•
USB: One USB 2.0 port (see USB 2.0 port on page 37).
•
LED EXT: One LED extension port. This feature is currently not in use.
•
LEDs 1 through 14: Ports LEDs that are replicated from the back panel (see LEDs
of the LED tiles model on page 29).
•
POWER and FAN: System LEDs. (see LEDs of the LED tiles model on page 29).
Back panel of the LED tiles model
The LED tiles model with 2.5 Gbps ports, model M4250-12M2XF, provides twelve
2.5GBASE-T RJ-45 ports and two 10G SFP+ fiber uplink ports.
Figure 20. Back panel model M4250-12M2XF
Hardware Installation Guide28Hardware Overview
AV Line of Fully Managed Switches M4250 Series
