Start Using a VPN Tunnel to Activate It
To use a VPN tunnel, use a Web browser to go to a URL whose IP address or range is
covered by the policy for that VPN tunnel.
Verify the Status of a VPN Tunnel

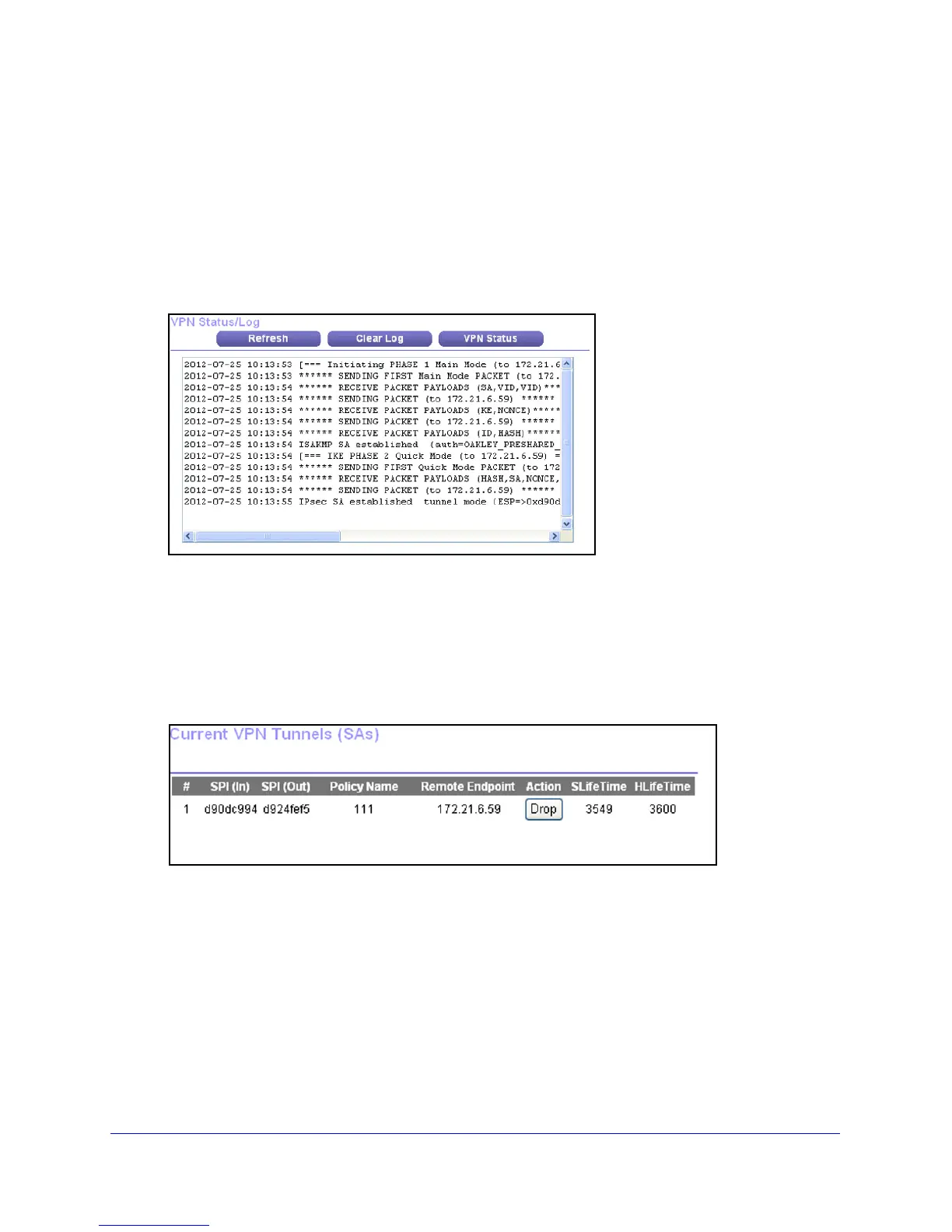

1. Select Advanced > Advanced - VPN > VPN Status. The VPN Status/Log screen
displays:
This log shows the details of recent VPN activity, including the building of the VPN tunnel.
If there is a problem with the VPN tunnel, refer to the log for information about what might
be the cause of the problem.
• Click Refresh to se
e the most recent entries.
• Click Clear
Log to delete all log entries.
2. Click the VP
N Status button to display the Current VPN Tunnels (SAs) screen.
This table lists the following data for each active VPN tunnel.
• SPI. Each
SA has a unique SPI (Security Parameter Index) for traffic in each
direction. For manual key exchange, the SPI is specified in the policy definition. For
automatic key exchange, the SPI is generated by the IKE protocol.
• Policy Nam
e. The VPN policy associated with this SA.
• Remote End
point. The IP address on the remote VPN endpoint.
• Action. Either a Drop
or a Connect button.
• SLifeT
ime (Secs). The remaining soft lifetime for this SA in seconds. When the soft
lifetime becomes 0 (zero), the SA (security association) is re-negotiated.
