NETGEAR ProSafe GS108 Installation Guide

Install the Switch and Connect the
Other Devices
1. Place the switch on a flat surface or hook onto the screws.
2. For each device, insert one end of an Ethernet cable into the port in the device and insert
the other end into one of the Ethernet ports on the switch.
3. Connect the power adapter’s cord into the back of the switch and then plug the adapter
into a power source (such as a wall socket or power strip).
The Power light
should light up.
The corresponding
Link LED for each
connected and
powered device
should light and flash when activity occurs. If the connection is 1,000 Mbps or 100
Mbps, the LED in the RJ-45 jack will light up. If the connection is 10 Mbps, the 10M
LED on the left side of the front panel will light up.
Note: If any light doesn’t operate as indicated, go to the Troubleshooting section.
3
3
Pwr
10M: On=Link, Blink=Act
On=Link, Blink=Act
1000M 100M
Green=FDX, Yellow=Collision
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
10/100/1000 Mbps Gigabit Switch GS108
12VDC 1.2A
87654321
LOCAL
10/100M
INTERNET
OFF ON
DSL
modem

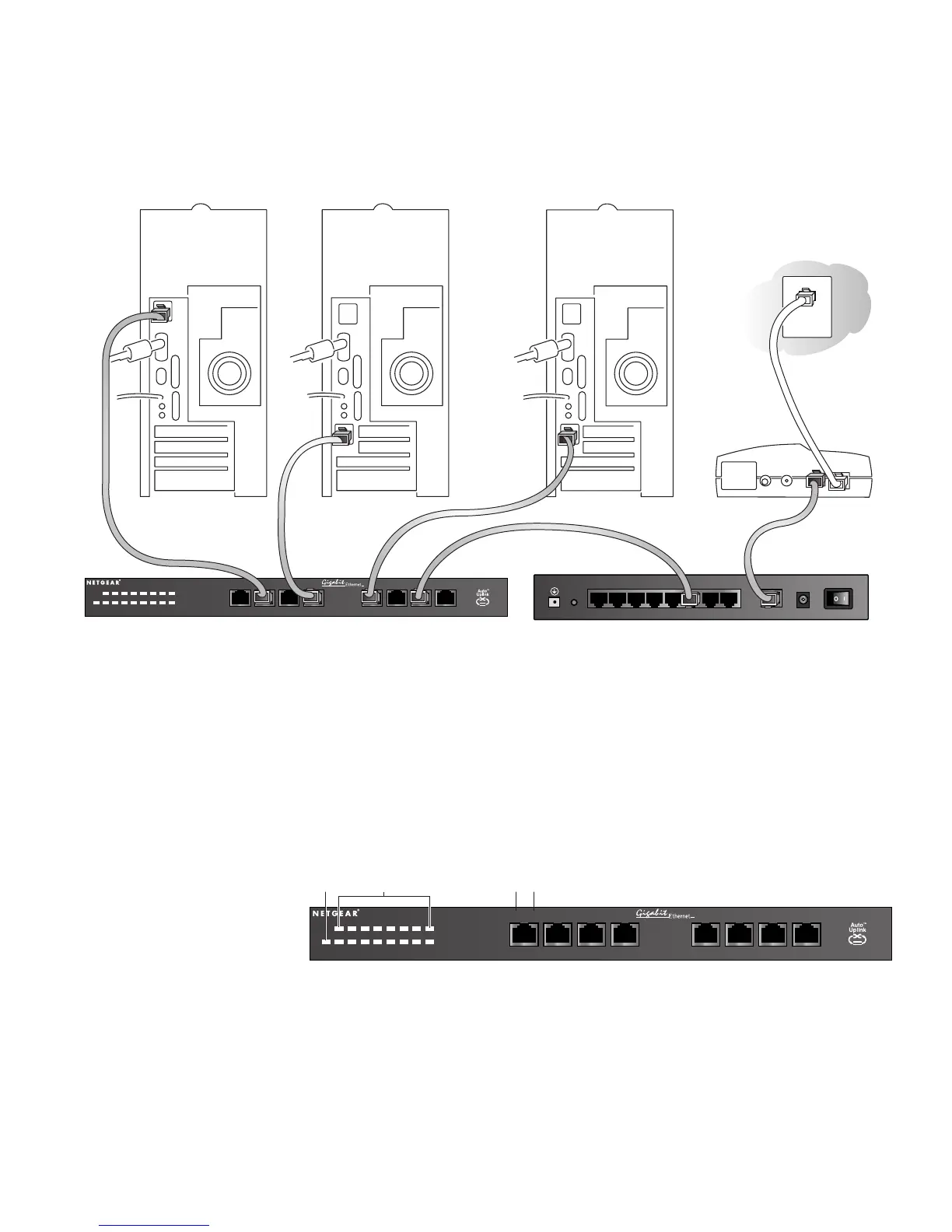

Apple G4 PC with
GA302T
Adapter
Server with GA622T
Adapter
GS108 8-Port 10/100/1000 Mbps
Gigabit Ethernet Switch
FVS318 Cable/DSL ProSafe VPN Firewall
Pwr
10M: On=Link, Blink=Act
On=Link, Blink=Act
1000M 100M
Green=FDX, Yellow=Collision
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
10/100/1000 Mbps Gigabit Switch GS108
Model GS108 8-Port 10/100/1000 Mbps Gigabit Ethernet Switch
Power
1000M
LED
100M
LED
Link, Act, FDX,
Collision LED

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
