ProSafe
®
Plus Switch Configuration Utility User Guide
Quality of Service Configuration 4-3
v1.0, February 2010
To assign Port Based priorities:
1. Select System and click on the radio button for the switch you want to configure.

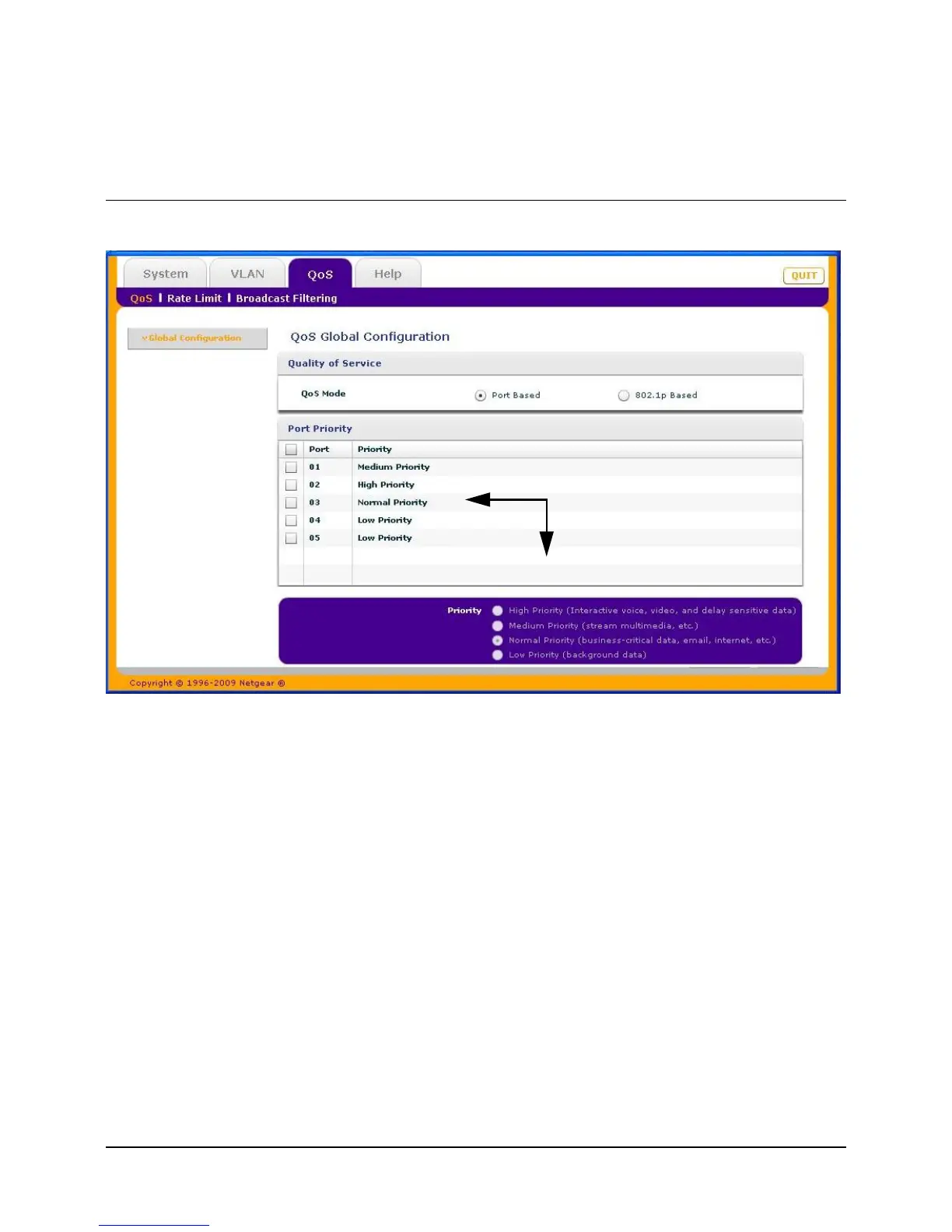

2. Select QoS. The QoS Global Configuration screen displays.
3. Select the ports that you want to have that priority.
4. Select a priority level that you want to assign from the list at the bottom of the display.
5. Click Apply. The selected ports will be displayed with the new priority.
6. Repeat for the remaining ports.
802.1p Based Priority
802.1p Based priority uses a header in the data packet that identifies the class of data (for example, voice or
video) in the packet. When 802.1p based priority is used, the switch reads information in the packet header
to determine the priority to assign to the data packet. When 802.1p Based Priority is used, all ports on the
switch will check the packet header and transmit the packet according to its content.
To select 802.1p Based priority:
1. Select System and click on the radio button for the switch you want to configure.
2. Select QoS. The QoS Global Configuration screen displays.
4 priority levels
