NETGEAR USB Multifunction Printer Server PS121v2 User Manual
Getting Started 1-3
v2.0, April 2007
Hardware Description
The PS121v2 USB Multifunction Print Server LEDs indicate the status of the server and the
Ethernet traffic. It has one 10/100 Mbps network port. The port operates in 10/100 Mbps when
connected to a 10/100Mbps Ethernet network. It has one USB port. It has a power adapter
receptacle that accepts a 12V 1A DC power adapter. It has a diagnostic/reset button.
LED Indicators

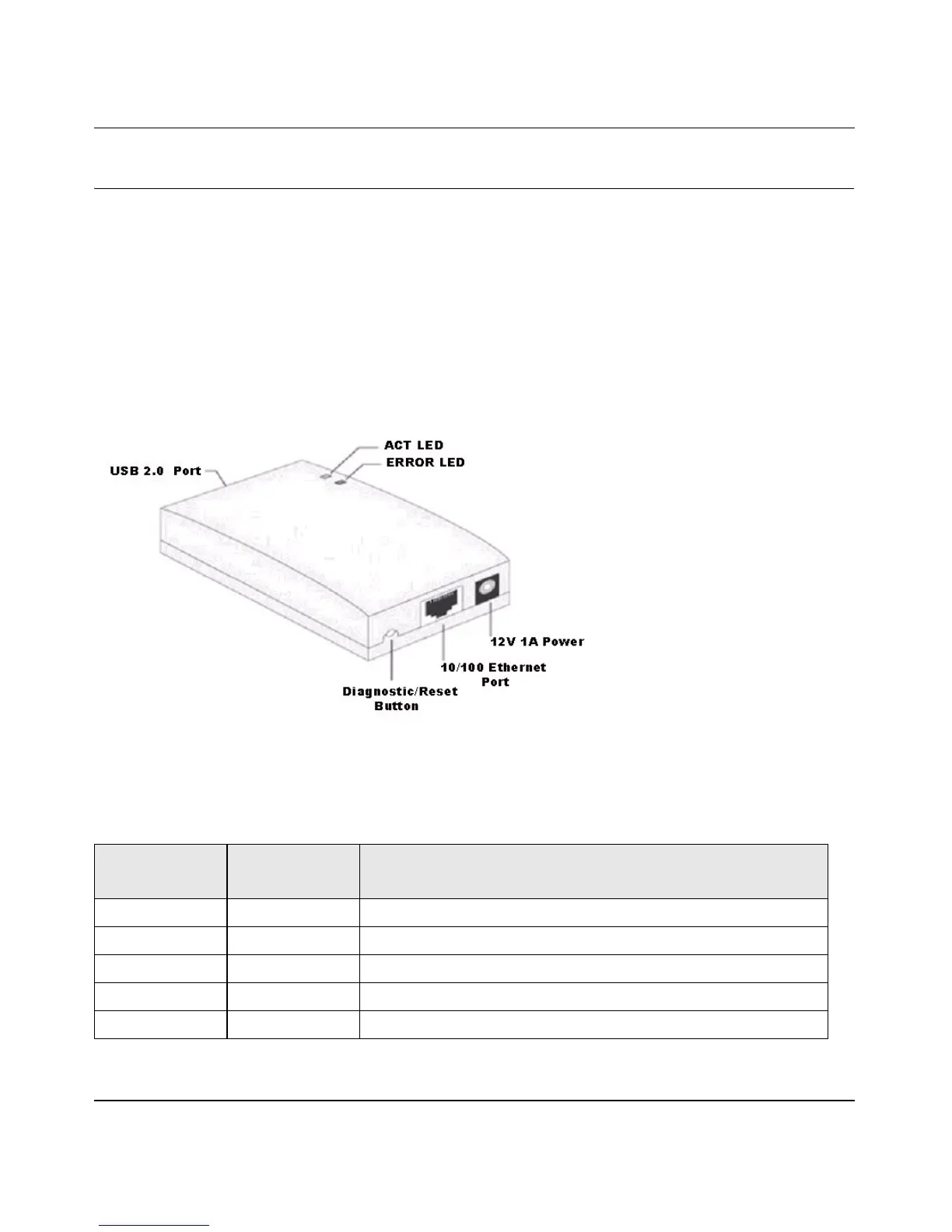

As illustrated in the figure below, the USB Multifunction Print Server has 2 LEDs.
See the table below for a description of the LED indicator lights:
Figure 1-2
Table 1-1. LED Descriptions
ACT Status LED
(Green)
ERROR LED
(Red)
Description
Off Off No power
On Off Power on, idle normal operation
Flashing Off Normal operation transmitting or receiving data from the network.
On On No USB printer attached.
Flashing Flashing (LEDs flash in turn) Firmware upgrade in progress
