NETGEAR USB Multifunction Printer Server PS121v2 User Manual
3-4 Managing the Print Server
v2.0, April 2007
Viewing the Printer Port Status
To view the port status:
1. Open your Web browser and type in the IP address of the print server in the browser’s Address
text box.

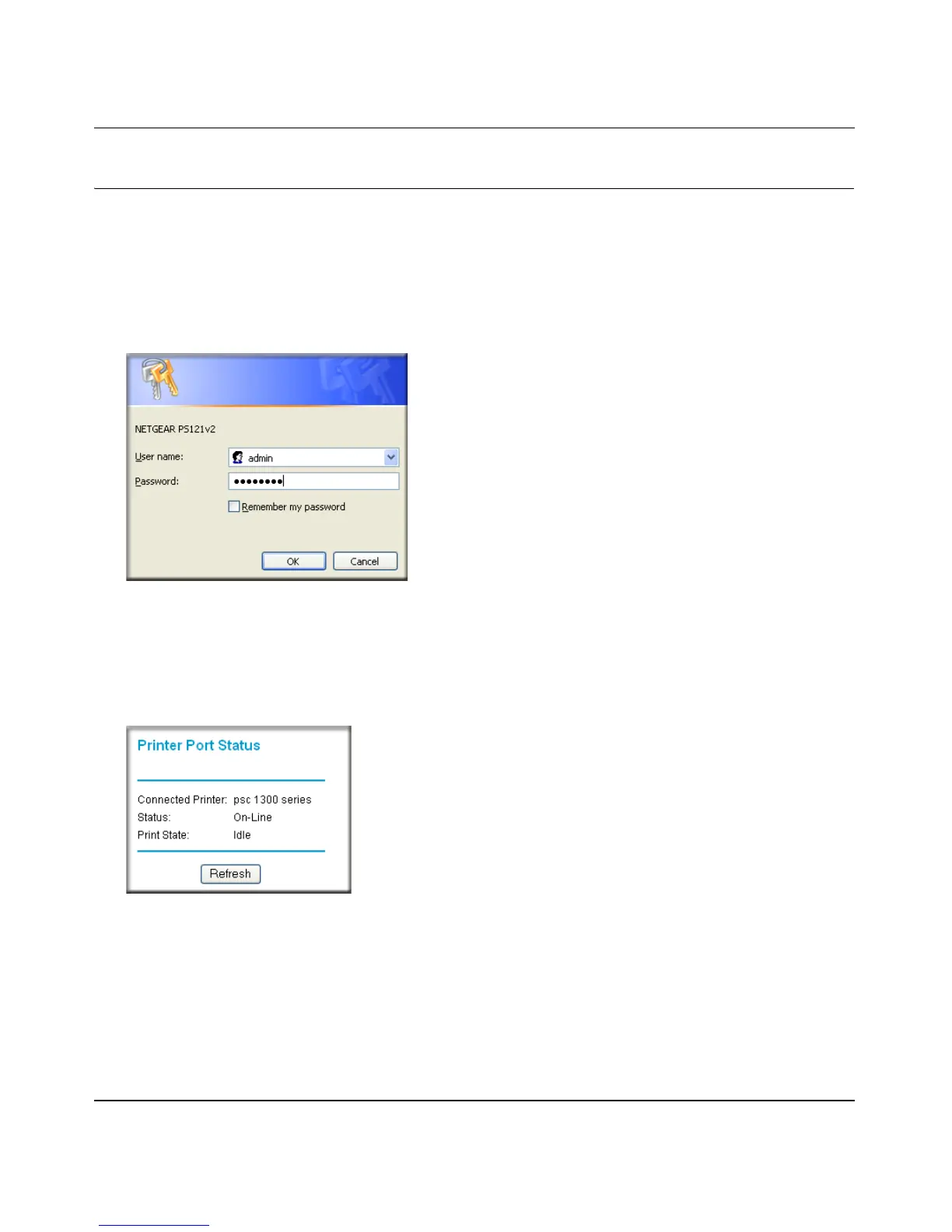

The browser displays a pop-up window prompting you for the user name and password.
2. For the user name, type admin. If you have assigned a password enter it in the password box.
If you have not changed the password, type the default value of password.
The status screen is displayed as follows:
The status will indicate On-line, Off-line, or Out of paper.
The print state will show either Idle or Printing.
Figure 3-4
Figure 3-5
