Genie Advanced Home
45
Dual Band 11ac WiFi Router R6200

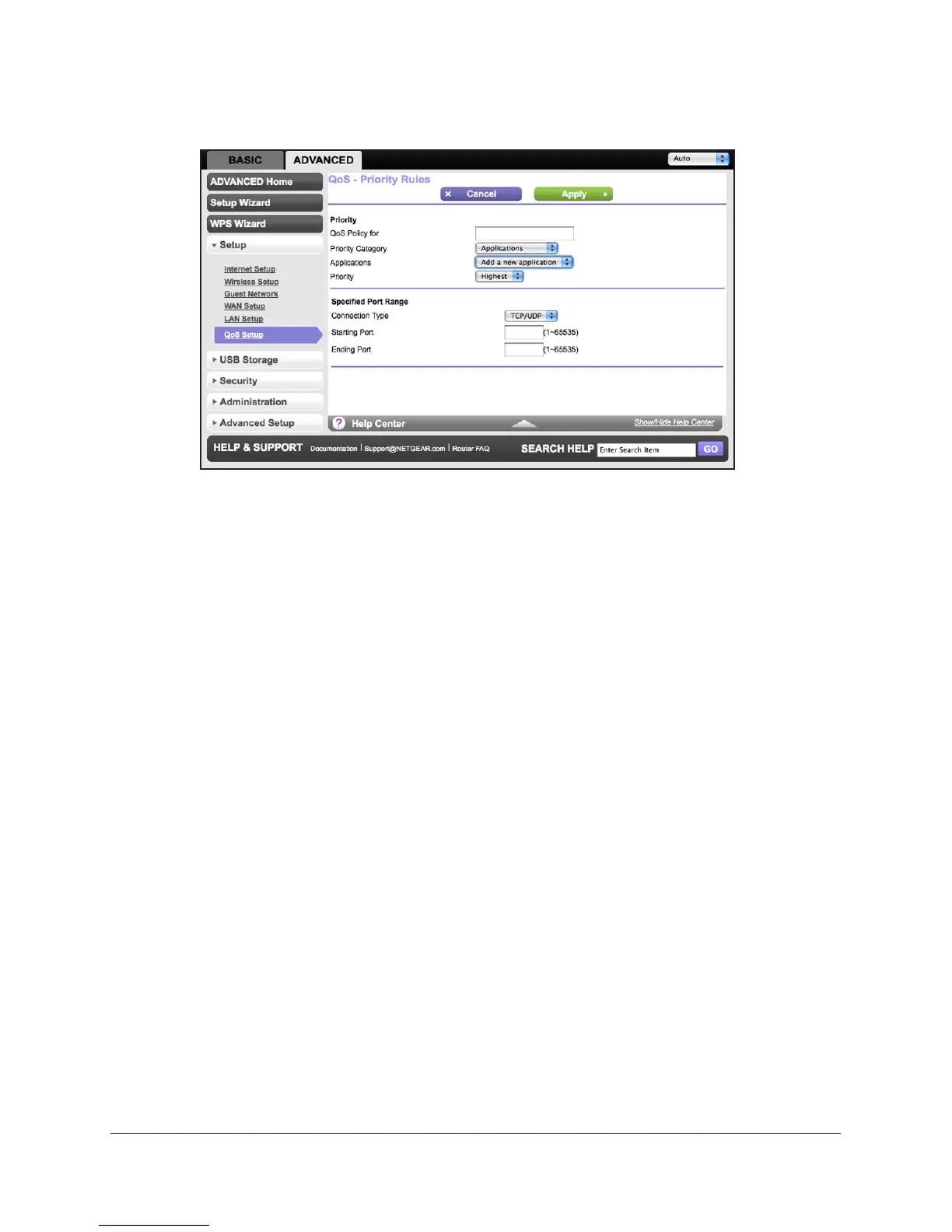

a. If you add an entry, the Priority Rules screen expands as shown:
b. In the QoS Policy for field, enter a descriptive name for the new application or game.
c. In the Connection T
ype list, select either TCP, UDP, or both (TCP/UDP). Specify the
port number or range of port numbers that the application or game uses.
7. From the Priority list, select the priority for Internet access for this traffic relative to other
applications and traf
fic. The options are Low, Normal, High, and Highest.
8. Click Apply to save this rule to the QoS Policy list and return to the QoS Setup screen.
QoS for a Router LAN Port
To create a QoS policy for a device connected to one of the router’s LAN ports:
1. Select Advanced > Setup > QoS Setup to display the QoS Setup screen. Select the
Turn Internet
Access QoS On check box.
2. Click the Setup QoS Rule button.
3. Click the Add Priority Rule button.
