NETGEAR RangeMax WPN824 User Manual

Reference Manual for the RangeMax Wireless Router WPN824
Wireless Configuration 4-9
202-10072-01, March 2005
2.
Click Wireless Settings in the main menu of the WPN824 firewall.

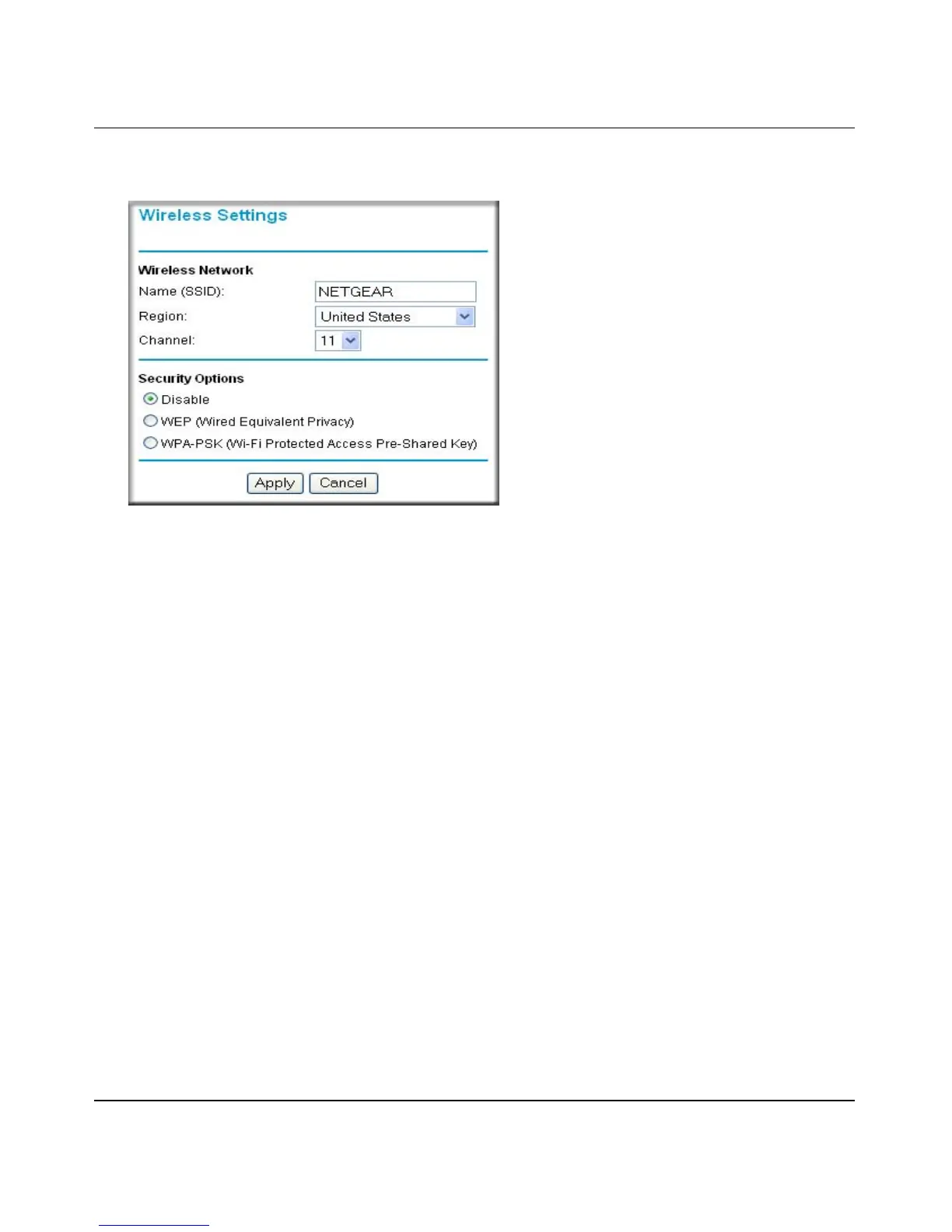

Figure 4-5: Wireless Settings menu
3.
Choose a suitable descriptive name for the wireless network name (SSID). In the SSID box,
enter a value of up to 32 alphanumeric characters. The default SSID is NETGEAR.
Note: The SSID is case sensitive; NETGEAR is not the same as nETgear. Also, the SSID of
any wireless access adapters must match the SSID you configure in the RangeMax Wireless
Router WPN824. If they do not match, you will not get a wireless connection to the WPN824.
4. Set the Region. Select the region in which the wireless interface will operate.
5. Set the Channel. The default channel is 11.
This field determines which operating frequency will be used. It should not be necessary to
change the wireless channel unless you notice interference problems with another nearby
wireless router or access point. Select a channel that is not being used by any other wireless
networks within several hundred feet of your firewall. For more information on the wireless
channel frequencies please refer to “Wireless Channels” on page D-7.
6. For initial configuration and test, leave the Wireless Card Access List set to “Everyone” and
the Encryption Strength set to “Disabled.”
7. Click Apply to save your changes.

NETGEAR RangeMax WPN824 Specifications

General

Bandwidth	2.4 GHz
xDSL connection	Yes
Dimensions (WxDxH)	223 x 153 x 31 mm
Maximum data transfer rate	0.108 Gbit/s
Security algorithms	WPA-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
Ethernet LAN (RJ-45) ports	4

Weight and Dimensions

Weight	500 g
