NETGEAR RP114 User Manual

Reference Guide for the Model RP114 Web Safe Router
Setting Up the Hardware 2-3
The Router’s Front Panel
The front panel of the Model RP114 Web Safe Router (Figure 2-1) contains port connections and
status LEDs.

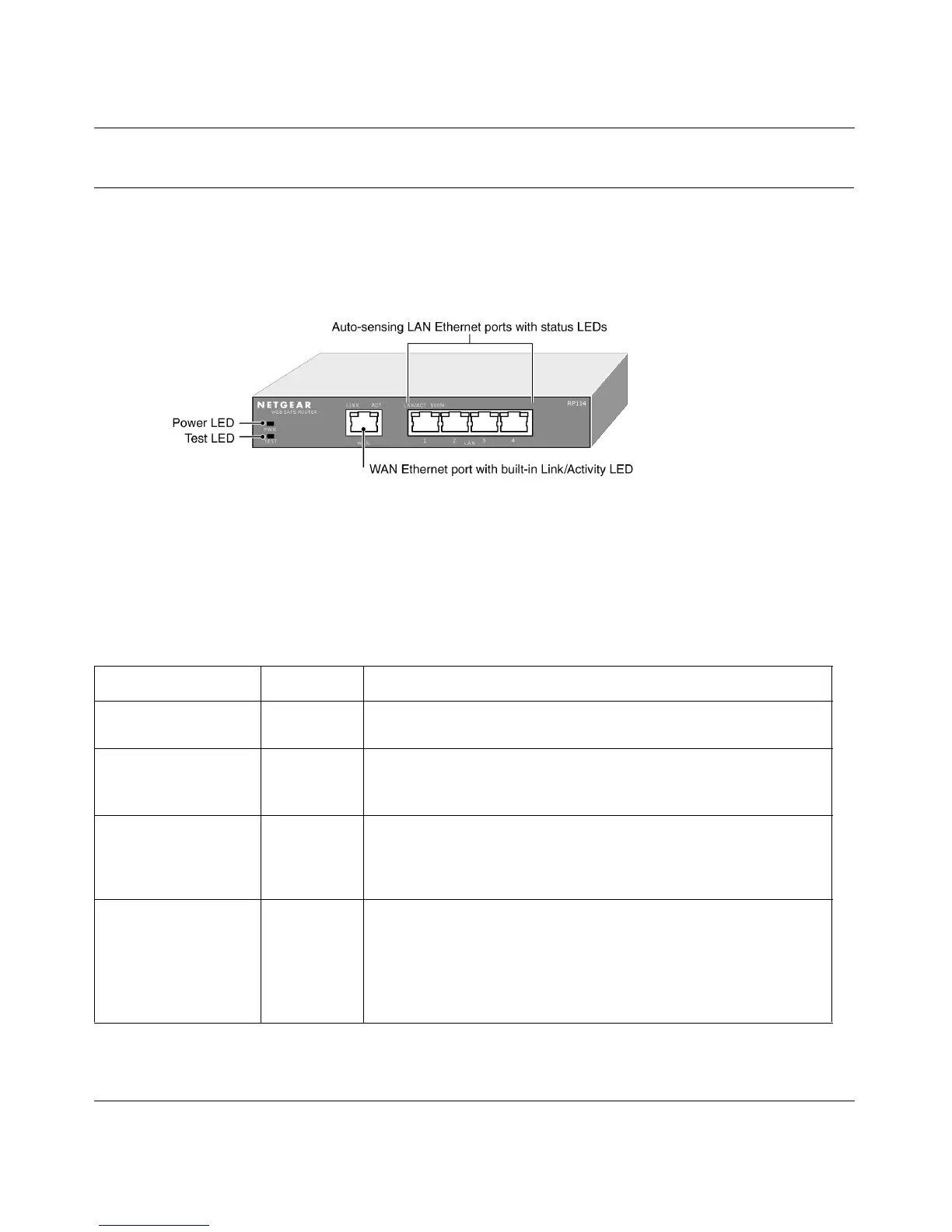

Figure 2-1. RP114 Front Panel
You can use some of the LEDs to verify connections. Table 2-1 lists and describes each LED on
the front panel of the router. These LEDs are green when lit.
Table 2-1. LED Descriptions
Label Activity Description
PWR (Power) On
Off
Power is supplied to the router.
Power is not supplied to the router.
TEST On
Off
Blinking
The system is not ready or has failed to start up.
The system is ready and running.
The system is initializing.
WAN
LNK On The WAN port has detected a link with an attached device.
ACT (Activity) Blinking Data is being transmitted or received by the WAN port.
LAN
LNK/ACT
(Link/Activity)
On
Blinking
The LAN port has detected a link with an attached device.
Data is being tranmitted or received by the LAN port.
100 (100 Mbps) On
Off
The LAN is operating at 100 Mbps.
The LAN is operating at 10 Mbps.

NETGEAR RP114 Specifications

General

Dimensions (WxDxH)	159 x 102 x 32 mm
Connectivity technology	Wired
Supports ISDN connection	Yes
Product color	Blue
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	2750 g
