Reference Manual for the 54 Mbps Wall-Plugged Wireless Range Extender WGX102
7-2 Content Filtering in Router Mode
September 2004 202-10042-01

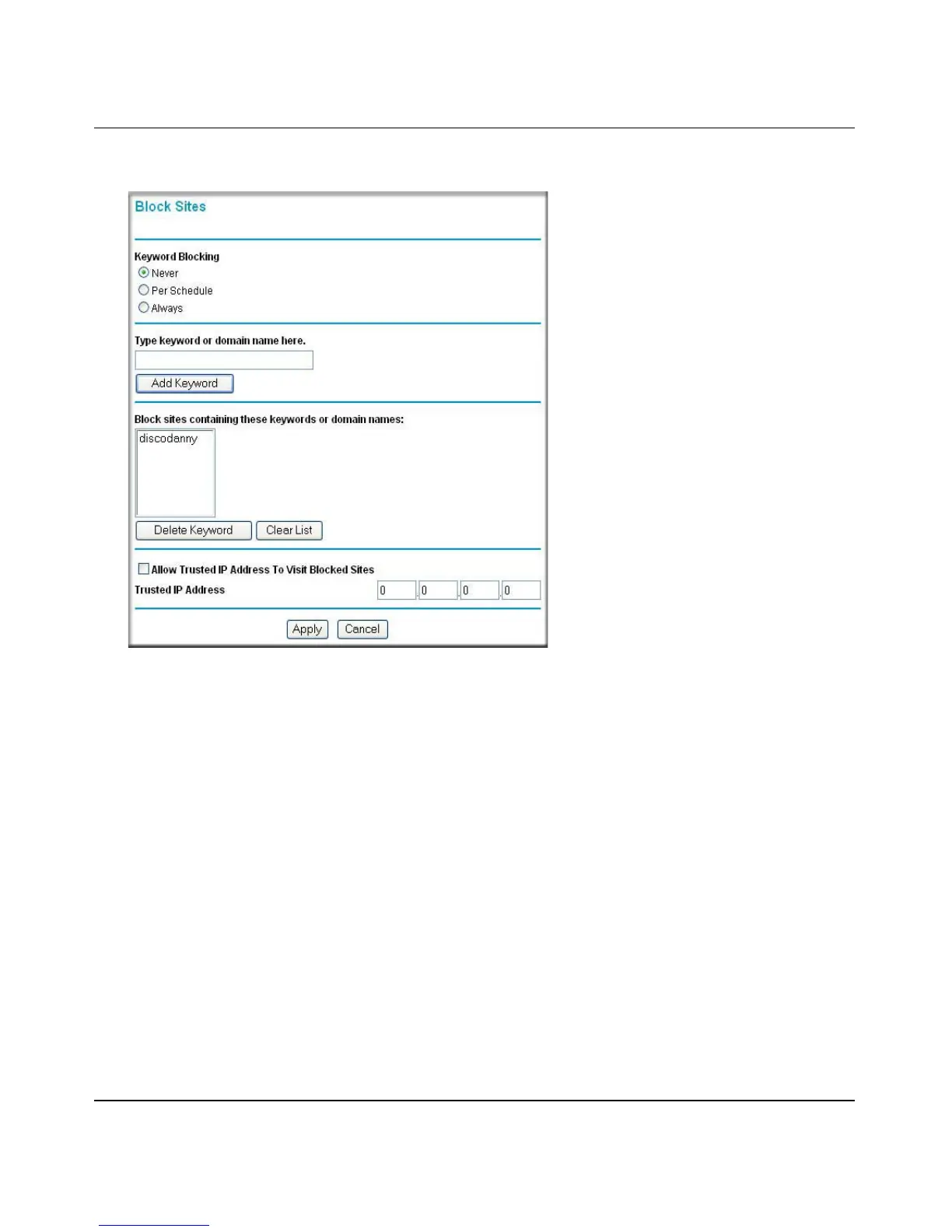

The Block Sites menu is shown in the figure below:
Figure 7-1: Block Sites menu
• To enable keyword blocking, select either “Per Schedule” or “Always”, then click Apply. If
you want to block by schedule, be sure that a time period is specified in the Schedule menu.
• To add a keyword or domain, type it in the Keyword box, click Add Keyword, then click
Apply.
• To delete a keyword or domain, select it from the list, click Delete Keyword, then click Apply.
• To specify a Trusted User, enter that PC’s IP address in the Trusted User box and click Apply.
You may specify one Trusted User, which is a PC that is exempt from blocking and logging.
Since the Trusted User is identified by an IP address, you should configure that PC with a
fixed IP address.
