Reference Manual for the 54 Mbps Wall-Plugged Wireless Range Extender WGX102
Advanced Configuration of the WGX102 8-3
September 2004 202-10042-01
• Incoming Ports — the port or port range used by the remote system when it responds to the
outgoing request. A response using one of these ports is forwarded to the PC that triggered this
rule.
To see which rules are currently being used, click the Status button. The following data is
displayed:
• Rule — the name of the Rule.
• LAN IP Address — the IP address of the PC currently using this rule.
• Open Ports — the Incoming ports which are associated the this rule. Incoming traffic using
one of these ports is sent to the IP address above.
• Time Remaining — the time remaining before this rule is released, and thus available for other
PCs. This timer is restarted whenever incoming or outgoing traffic is received.
Before starting to configure an Internet Game or Application, you need to know which service,
application or game you will be configuring. Also, you need to have the outbound port (triggering
port) address for this game or application.
Follow these steps to set up a computer to play Internet games or use Internet applications:
1. Click Add.

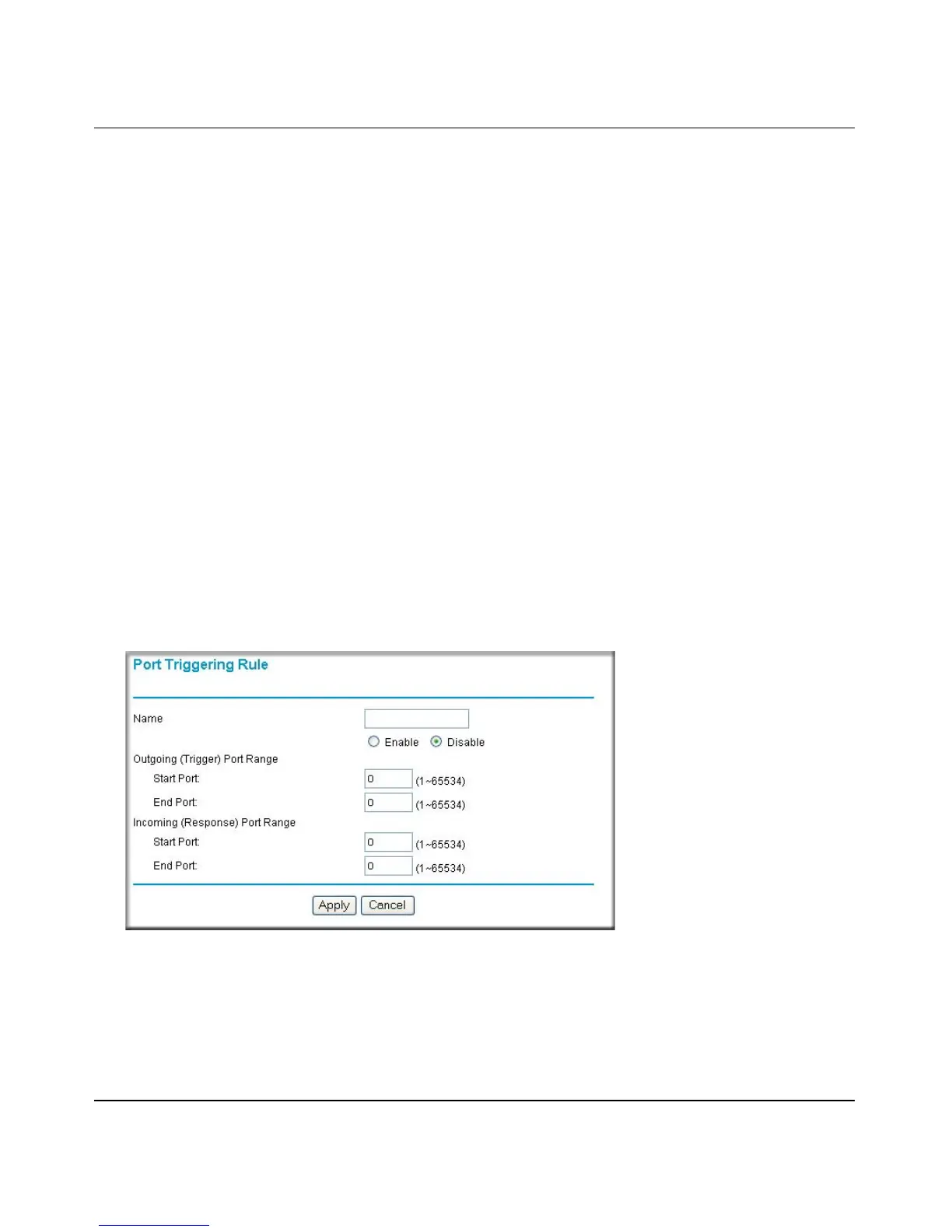

Figure 8-2: Add Port Triggering Rule menu
2. For the Name, enter a suitable name for this rule (the name of the application).
3. Enable the rule.
