Advanced Settings
104
N750 Wireless Dual Band Gigabit Router WNDR4300
forwards your request to the company where you are employed, and the request is likely to
be denied by the company’s firewall.
In this case you have to define a static route, telling your router that 134.177.0.0 should be
accessed through the ISDN router at 192.168.1.100. In this example:
• The Destination IP Address and IP Subnet Mask fields specify that this static route
applies to all 134.177.x.x addresses.
• The Gateway IP
Address field specifies that all traffic for these addresses should be
forwarded to the ISDN router at 192.168.1.100.
• A metric value of 1 works since the ISDN router is on the LAN.
• Private is selected only as a precautionary security measure in case RIP is activated.
To set up a static route:

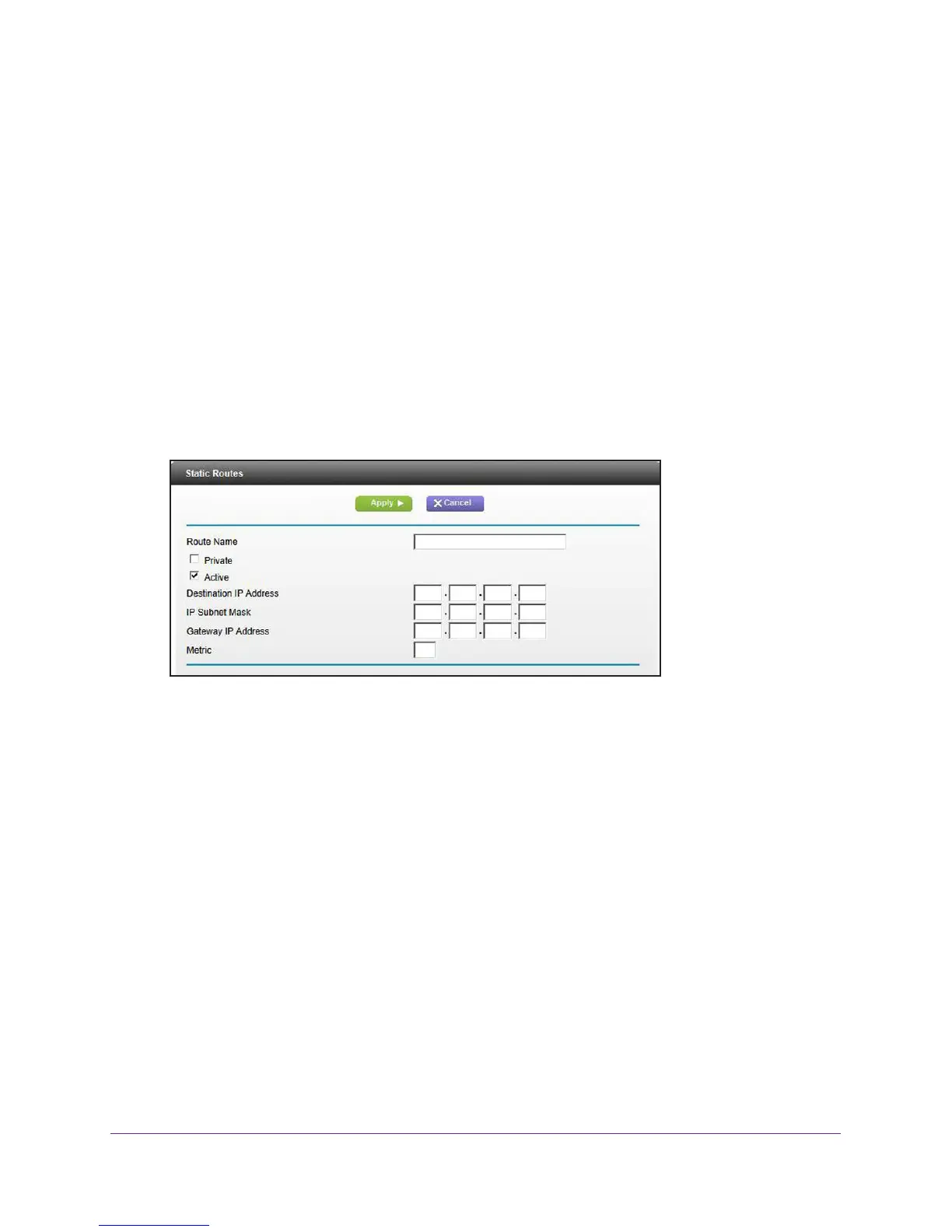

1. Select Advanced >
Advanced Setup > Static Routes, and click Add to display the
following screen:
2. In the Route Name field, type a name for this static route (for identification purposes only.)
3. Select the Private check box if you want to limit access to the LAN only
. If Private is
selected, the static route is not reported in RIP.
4. Select the Active check box to make this route ef
fective.
5. T
ype the IP address of the final destination.
6. T
ype the IP subnet mask for this destination. If the destination is a single host, type
255.255.255.255.
7. T
ype the gateway IP address, which has to be a router on the same LAN segment as the
router.
8. T
ype a number from 1 through 15 as the metric value.
This value represents the number of routers between your network and the destination.
Usually
, a setting of 2 or 3 works, but if this is a direct connection, set it to 1.
9. Click Apply to add the static route.
