AUG3201-IP Cong Guide
© Copyright Netgenium Systems 2017 Page 10
Line In
Line In provides a low level analogue audio input to the gateway.
A signal input voltage of approximately 1 V is required. This input is not suitable
for a microphone.
Signal +, Signal - and Chassis GND terminals are provided for balanced and un-
balanced signals
Microphone In
Microphone In provides a low level analogue audio input to the gateway.
An input voltage of approximately 1 mV is required.
Signal +, Signal - and Chassis GND terminals are provided for balanced and un-
balanced signals
Line Out
Line Out provides a low level analogue audio output from the gateway.
A signal output voltage of approximately 1 V is supplied. This output is suitable
for an input to an analogue audio amplier
Signal +, Signal - and Chassis GND terminals are provided for balanced and
un-balanced signals

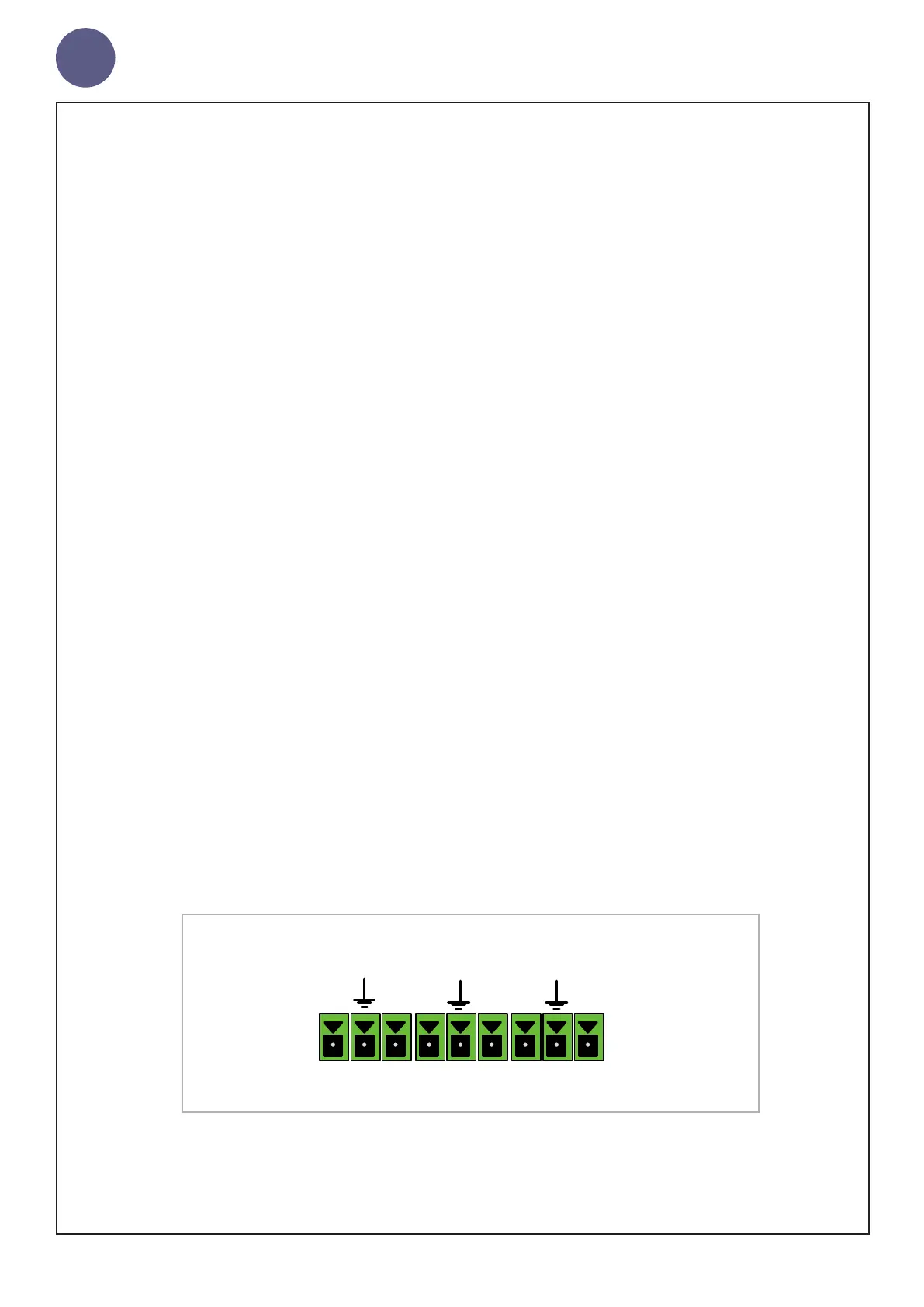

Line IN Mic IN Line OUT
-
+
-
+
-
+
