1. Push the WPS button in the Router until the WPS LED is flashing several times.
2. Push the WPS button in the wireless network card for about 3-5seconds.
3. The safe connection will be established automatically.
Method 2:
1. Input the PIN code of the adapter’s WPS page into the router’s WPS configure page, then
click ’connect’.

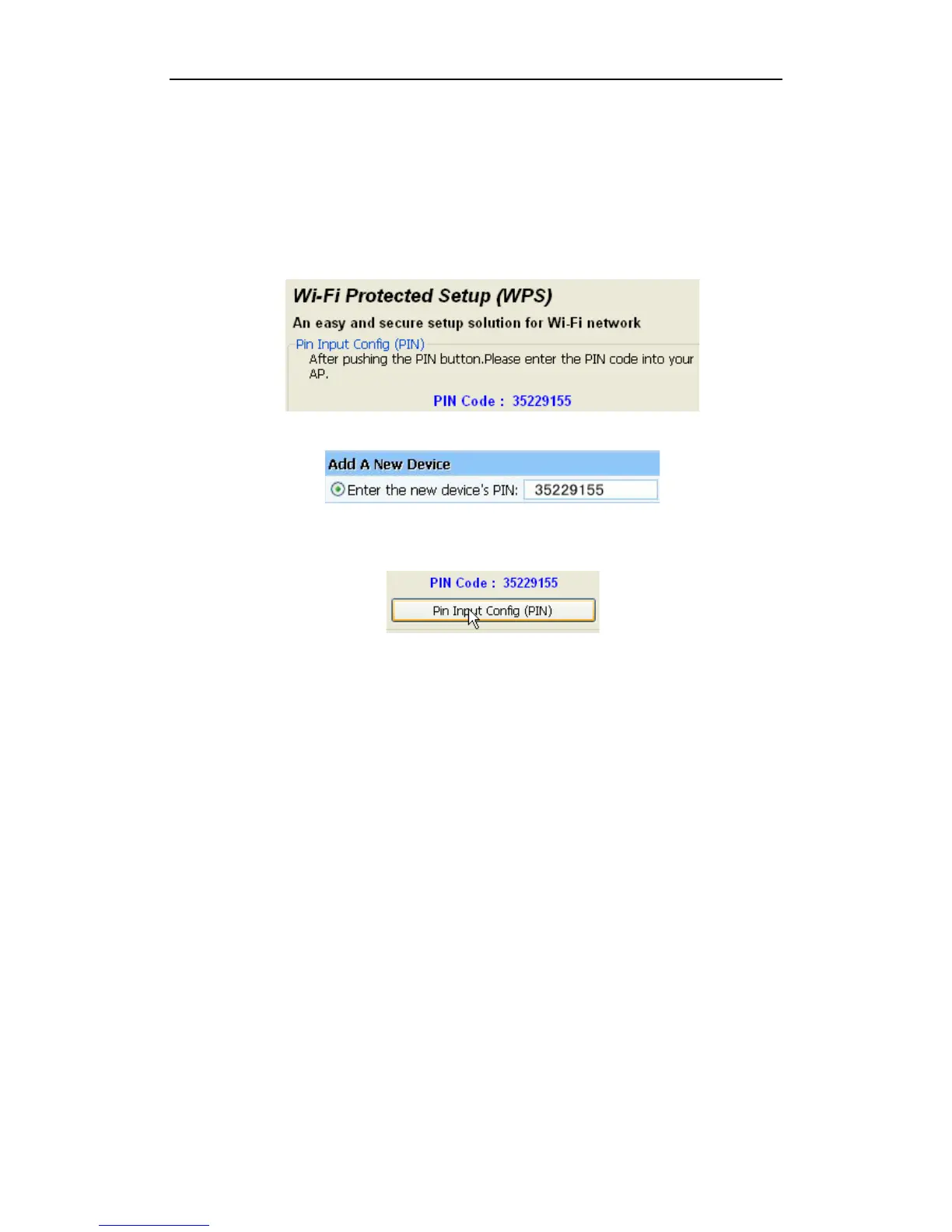

Figure 4-14
Figure 4-15
2. Push the ‘PIN Input Config (PIN)’ in the Wi-Fi protect setup of the adapter
Figure 4-16
3. Select this router in the pop-up window, then click ‘Select’
4. The connection between the adapter and the router is be established automatically.
Method 3:
1. Select ‘Input PIN from AP’ in WI-FI protect setup page, input PIN of the router, then click
‘PIN Input Config (PIN)’
2. Select this router in the pop-up window, then click ‘Select’
3. The connection between the adapter and the router is be established automatically.
Remark
If there is more than one AP in the PBC mode when you use the method 1, there will be session
overlap. Please using method 2/3 or wait for a while push the button again.
4.3.3. WPS Configuration
Display the WPS configuration information.
