Netis WF-2406 - L2 TP Client + Static IP; Wireless Configuration

WF-2406 User Manual
34
4.2.2. L2TP Client + Static IP

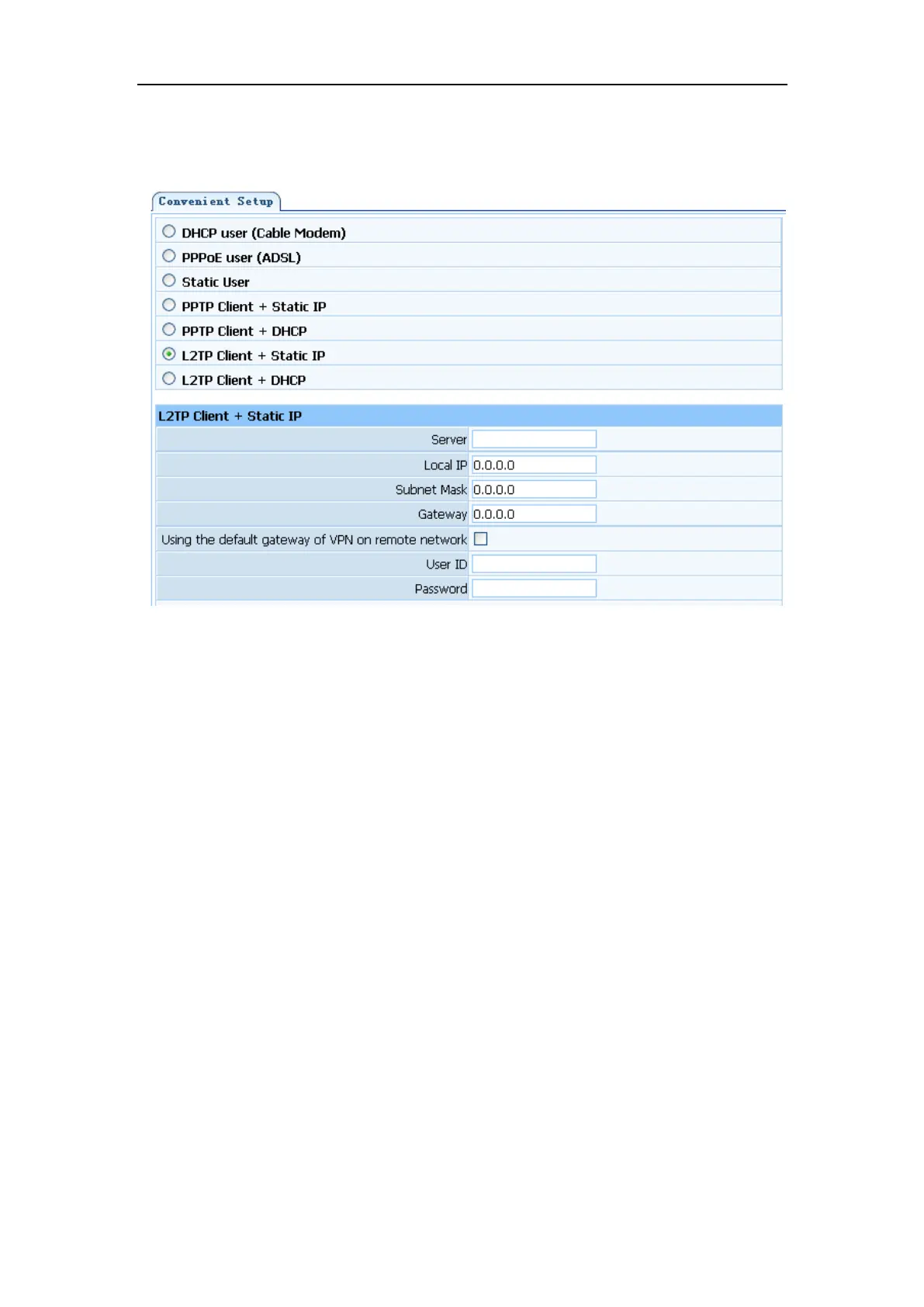

Figure 4-11
If your ISP provides you the Static L2TP service, please select this item. In the “Convenient
configuration” You can input your L2TP Server, username and password to access the Internet.
 Server
The Server IP address that your Internet access into
 Local IP
The Local IP address that your Internet access into Subnet mask
 Subnet mask
Specify a Subnet Mask for your WAN segment
 Default gateway
It is provided by your ISP
 User ID
Iput User name your ISP provides
 Password
It is provided by your ISP
4.2.3. Wireless Configuration
You can choose “Enable” or “Disable” to enable or disable the wireless function. The default
setting is “enable”. If you chose the “Disable” status, the router will become a wired Gigabit
router without wireless function, so be careful when you choose this status.
