Netis WF-2406 User Manual

WF-2406 User Manual
44

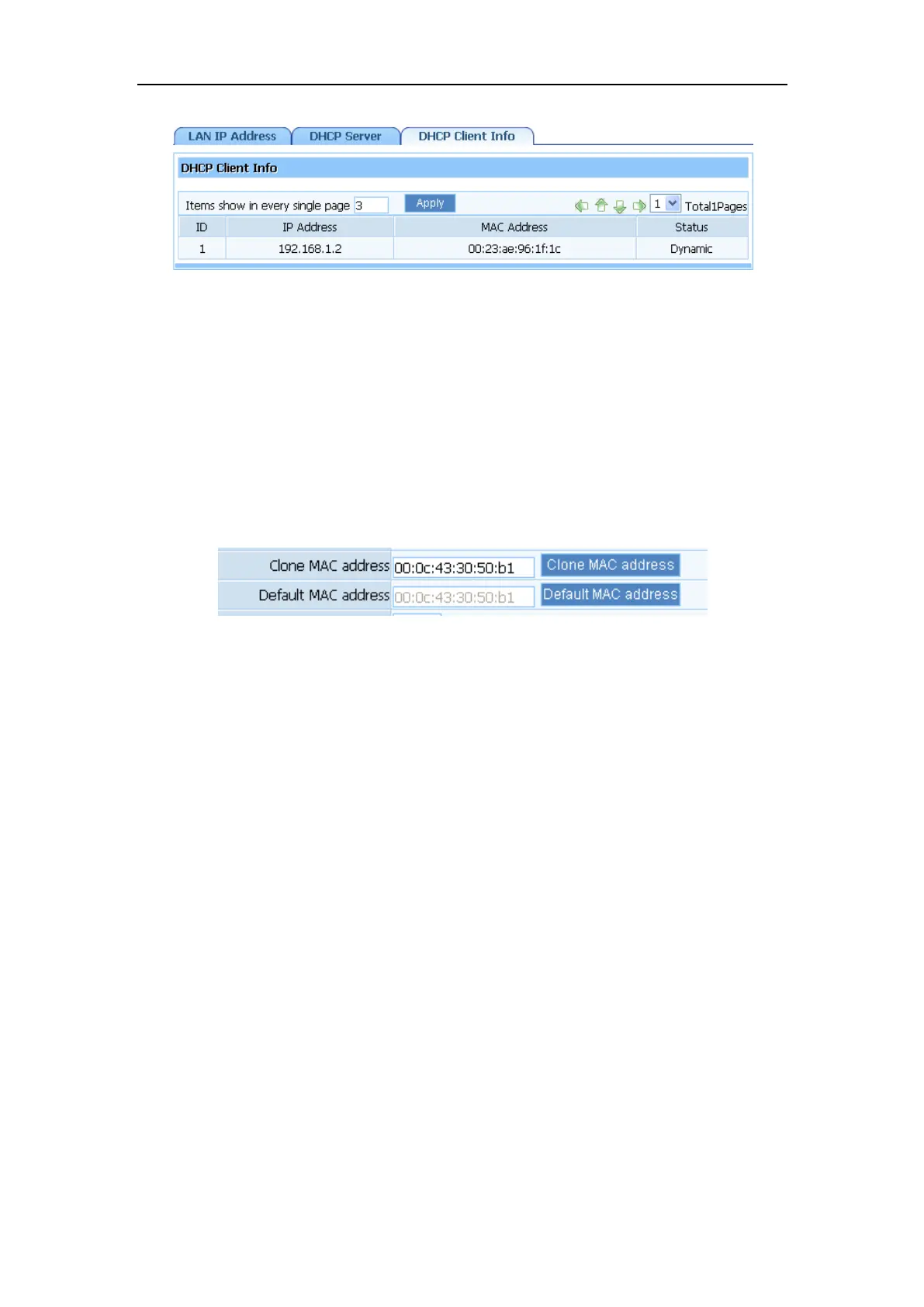

Figure 4-29
Display the state of assigned IP by DHCP Server
4.4.3. MAC Clone
The WAN port of router has a unique MAC address assigned by manufacturer; it called as
“Default MAC”. The “Clone MAC” is used for some special situations; For example, ISP only
allows certain MAC address to access the Internet, thus you can modify your WAN port‟s MAC
address in accord with the requirement of ISP, avoiding ISP‟s detection.
Figure 4-30
4.5. Wireless Management
4.5.1. Wireless Setup Basic
Providing basic configuration items for wireless router users, including “wireless network
status”, “SSID”, “Radio Band”, “Radio Mode”, “MAC”, “SSID broadcasting”, “Channel
width”, “Channel sideband”, “Region” and “Channel” several basic configuration items.

Netis WF-2406 Specifications

General

Brand	Netis
Model	WF-2406
Category	Wireless Router
Language	English
