2.0 INSTALLATION
Select the location of the DP8 with due regard of safety and ease of operation. Keep it clear of moving parts
and coolant spray. Ensure that the natural ventilation around the digital sending unit (DSU) is not restricted.
To ensure correct operation of the DP8, it is recommended that the digital sending unit (DSU) is grounded to
the machine from the equipotential terminal. A ground strap is provided in the fitting kit. The strap should be
cut to a suitable length once the DSU had been fixed to the machine. A terminal is provided for crimping to
the ground strap. This operation should be conducted by a suitably qualified engineer. The machine must
also be grounded to a good earth point.
The DP8 can be mounted in two basic ways as shown in Figure 2.1
ack view)

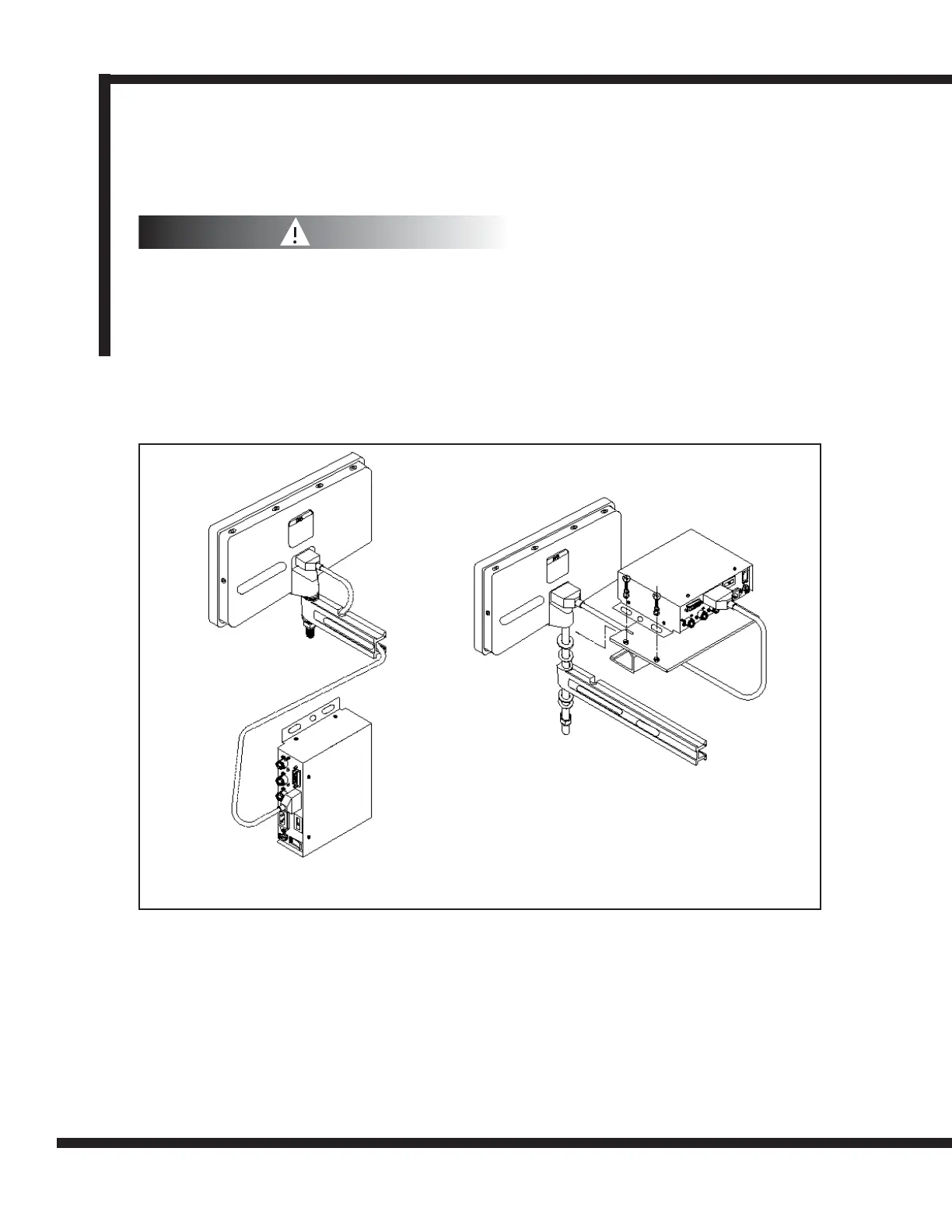

Figure 2.1 - Mounting Procedures
2.1.1 Display and digital sending unit (DSU) mounted separately (Figure 2.1a)
The keypad/display unit incorporates an M10 tapped hole in the rear of the unit. The M10 hole can be used
to mount the display in any of the standard methods as shown in Figure 2.2. The M10 stud mount is
provided as standard. The swivel mount assembly (Part No. 294-37740), the DP8 mounting arm (Part No
294-40050) and the DSU mounting assembly (Part No 600-65590) are all optional items as detailed on the
price list.
(a) Mounting DSU separately (b) Mounting DSU with display
2.1 Mounting
