Newmac WAO E - General Assembly and Parts Identification

26
26

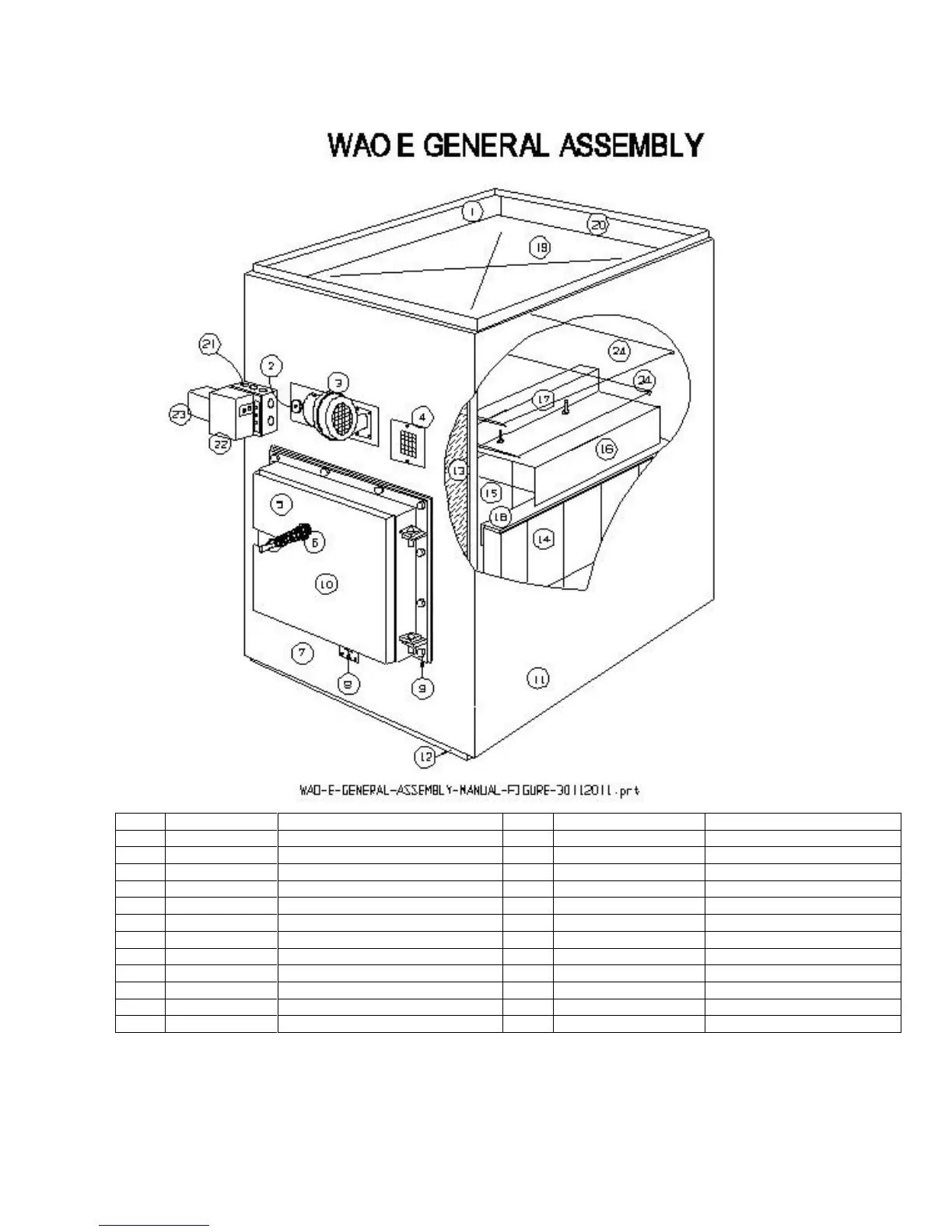

FIG. 14 – GENERAL ASSEMBLY
ITEM
PART NO.
DESCRIPTION
ITEM
PART NO.
DESCRIPTION
1
4120220G
LEFT SIDE PANEL
13
2080004
FRONT GASKET
2
2140006
DRAFT SLIDE KNOB
14
5110003 (Box of 10)
FULL BRICK (30 Req’d)
3
2040001
DRAFT FAN 50 CFM
15
5110006 (Box of 6)
SPLIT BRICK (8 Req’d)
4
*5300021
SECONDARY AIR INLET
16
3100569
BAFFLE (LEFT & RIGHT)
5
4120508
DOOR HEAT SHIELD
17
4060436
SECONDARY AIR SYSTEM
6
*5300019
WIRE SPRING DOOR HANDLE
18
4060010
BRICK RACK
7
4120248
FRONT PANEL
19
4060153
HEAT EXCHANGER
8
*5300022
LOWER PRIMARY AIR INLET
20
4120105G
REAR PANEL
9
*5300017
DOOR FRAME
21
4120424G
4” JUNCTION BOX
10
*5300017
LOADING DOOR
22
2010050
TRANSFORMER
11
4120219G
RIGHT SIDE PANEL
23
2010020
RELAY
12
4120415G
BASE PANEL
24
3100570
AUXILLIARY BAFFLES (2)
*Sold as a set
