FIG. 18 – SECONDARY AIR SYSTEM & BAFFLES

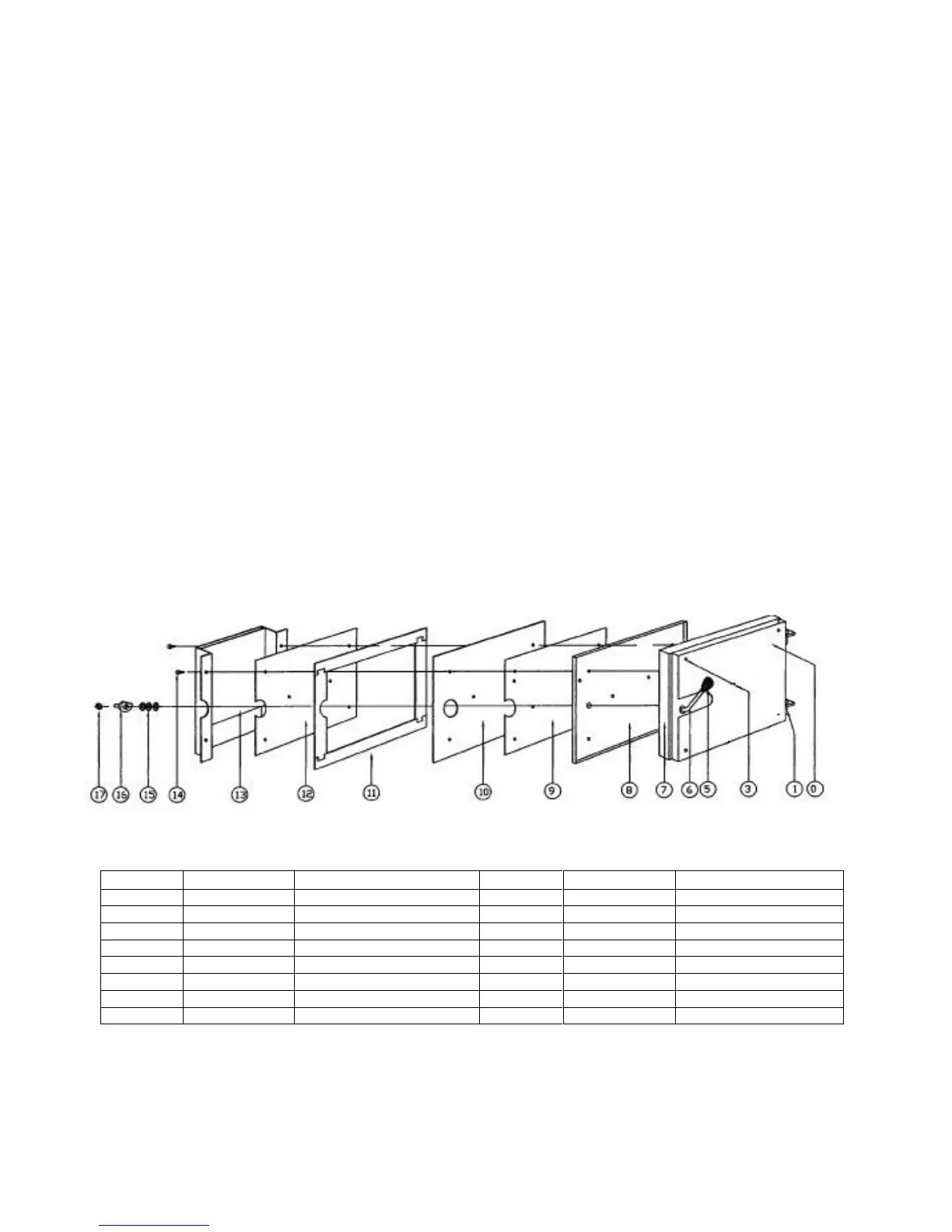

FIG. 19A – FIREDOOR GENERAL ASSEMBLY
FIG. 19B – FIREDOOR PARTS LIST
ITEM NO.
PART. NO.
DESCRIPTION
ITEM NO.
PART NO.
DESCRIPTION
0
4120508
Firedoor Shield
10
*5300020
Gasket
1
2160001
Hinge Pins (2)
11
*5300020
Door Seal Gasket (4 pc)
3
Screws for Heat Shield (4)
12
*5300020
Metal Gasket Retainer
5
*5300019
Cool Touch Spring Handle
13
4060474
Air Chute
6
*5300019
½” Rod Through Door
14
2120008
Air Chute Screws (4)
7
*5300017
12 Gauge Steel Door
15
*5300019
Washers (3)
8
*5300020
Insulator
16
*5300019
Latch
9
3160366
Spacer
17
*5300019
¼” Locknut
*Items sold as a set
