HUMIDIFIER:
Install the humidifier on the oil-firing furnace. This prevents possible damage due to excessive temperatures
when there is a power failure.

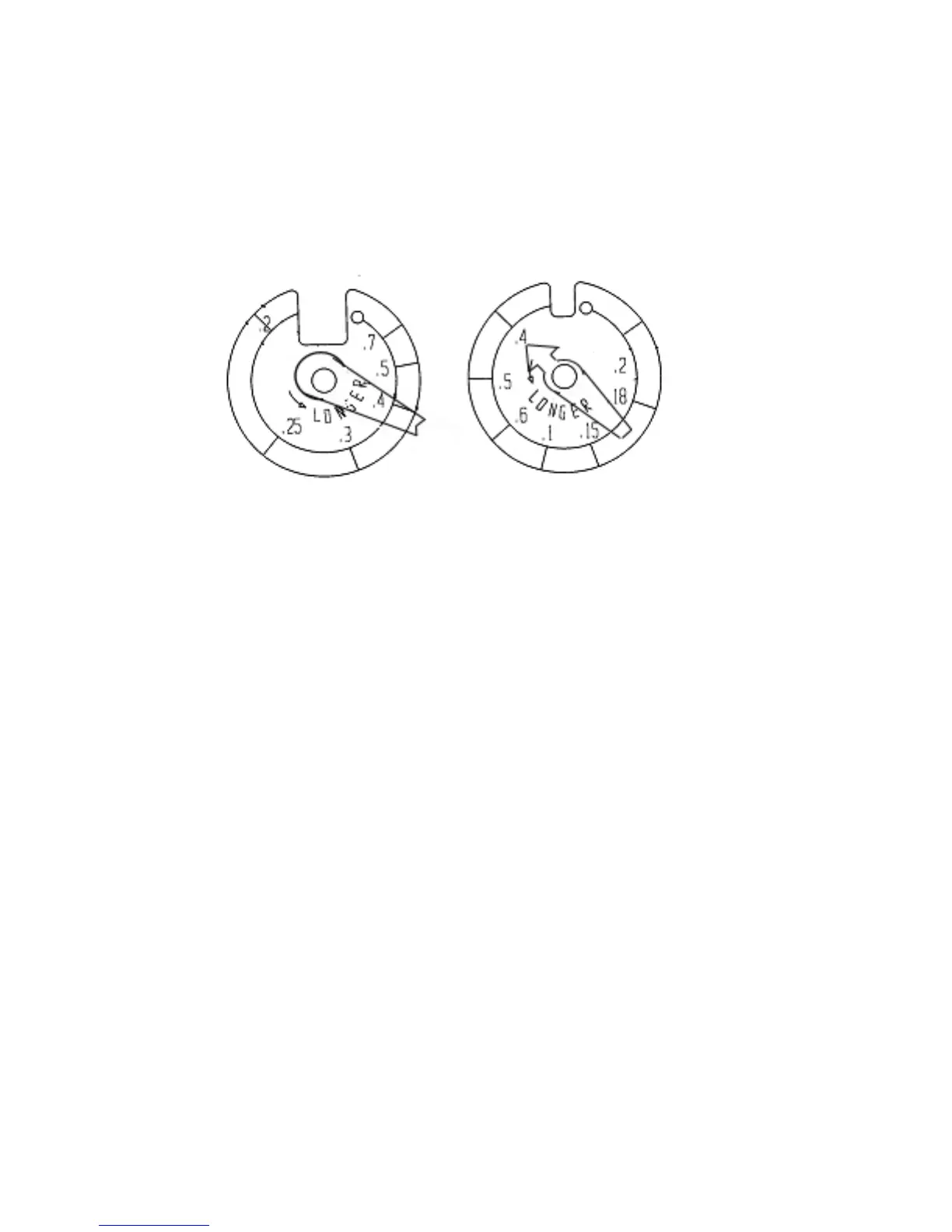

THERMOSTAT HEAT ANTICIPATOR
In order to prevent short cycling, the heat anticipator in the thermostats must be set at 0.4 amps as indicated in
the diagrams below.
WARNING: The heat anticipator will BURN OUT if 25 volts are applied directly to thermostat by shorting out
primary control during testing or incorrect wiring. If this happens the warranty on the thermostat is void.
HONEYWELL T822 WHITE ROGERS 1F30
PELLET BURNER: For furnaces equipped with the Newmac pellet burner, refer to the pellet burner installation
and operating instructions.
OPTIONAL BLOWER SECTION INSTALLATION
Installation of the Optional Blower Section converts add-on (supplementary) furnace models to a central heating
furnace. When installed or converted to a central furnace: NOT TO BE CONNECTED TO DUCTWORK THAT
IS STILL CONNECTED TO ANOTHER FURNACE. When installed or converted to a central furnace, return air
ducts must be constructed of metal.
PLENUMS and AIR DUCTS: Metal supply and return air plenums are required. Supply air ducts must be
constructed of metal.
ELECTRICAL DATA
Average electrical power consumption: 0.315 kw
Electrical Supply: 115 vac, 60 HZ, 1 ph, less than 12A
Refer to the electrical nameplate located on the blower section.
Connect wiring according to Wiring Diagram – FIG. 13
