Newmac WAO E - Technical Specifications and Component Diagrams; Motor and Blower Assembly Details

5
FIG. 1 – MOTOR AND BLOWER ASSEMBLY
MOUNTING MOTOR: If motor is equipped with oil caps, rotate motor in mounting base so oil caps are up

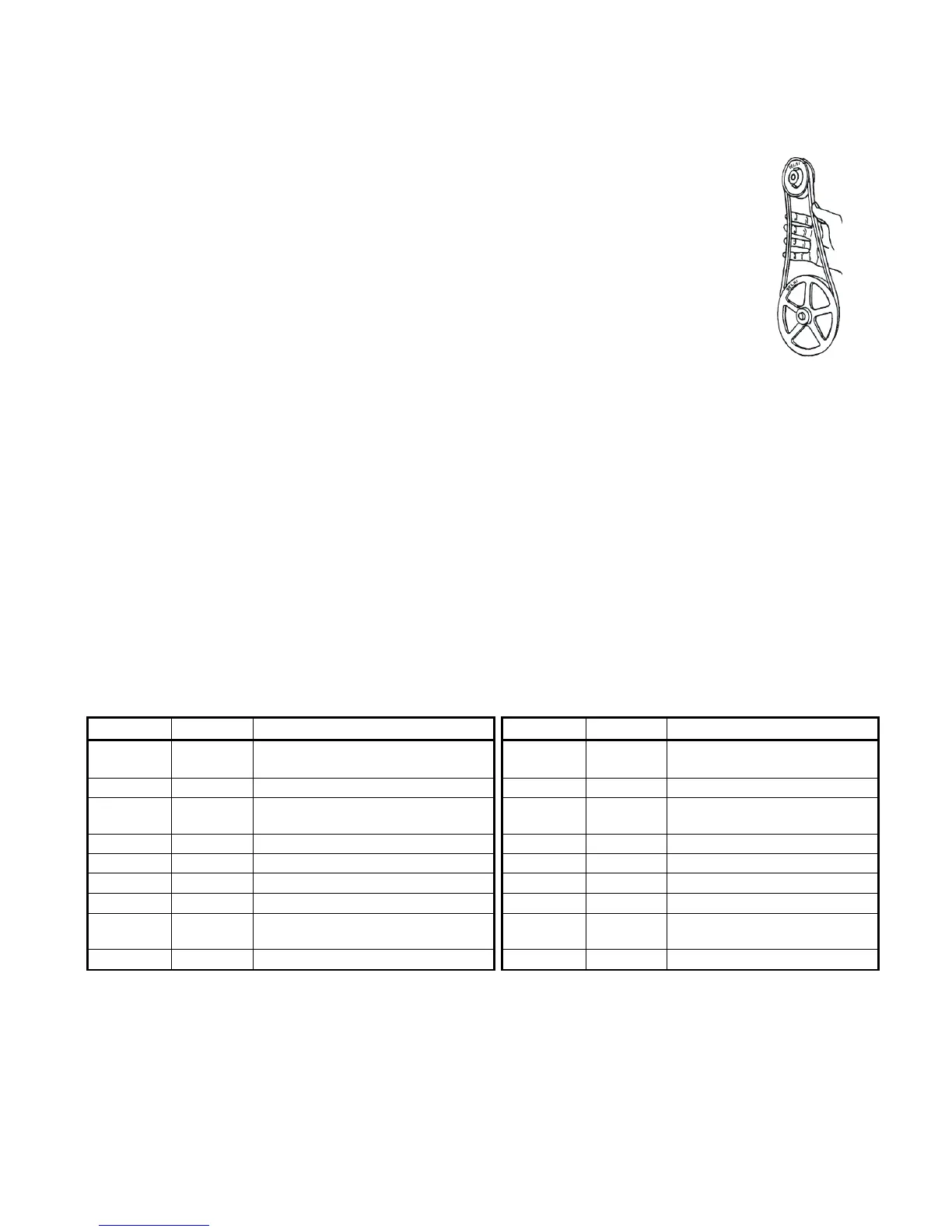

BELT TENSION: When adjusting the proper pulley setting make certain that the belt is able to flex at least one
inch without movement of the motor pulley. The belt should be just tight enough to avoid slippage. Align pulleys
with straight edge.
ITEM NO
PART NO
DESCRIPTION
ITEM NO
PART NO
DESCRIPTION
1
2040103
G12 Blower c/w 8” Pulley
10
2040137
Blower Motor Mounting
Bracket
2
2240003
8” x ¾” Blower Pulley
11
2120027
5/16” x ¾” Sq. Head Screw
3
2240001
3 ¼” x ½” Variable Speed Motor
Pulley
12
2150001
5/16” Washer
4
2240046
46” x ½” Belt
13
2130002
5/16” Nut
5
2130010
Motor Adjustment
14
2130002
5/16” Nut
6
2140002
¾” x ¼” Hex Cap Screw (2)
15
2130010
Motor Adjustment
7
Motor Frame
16
2130011
Motor Adj. Leg Rubber Foot
8
2150004
¼ Washer
17
2020003
1/2 HP Belt Drive Blower
Motor
9
2130003
¼” Hex Nut
