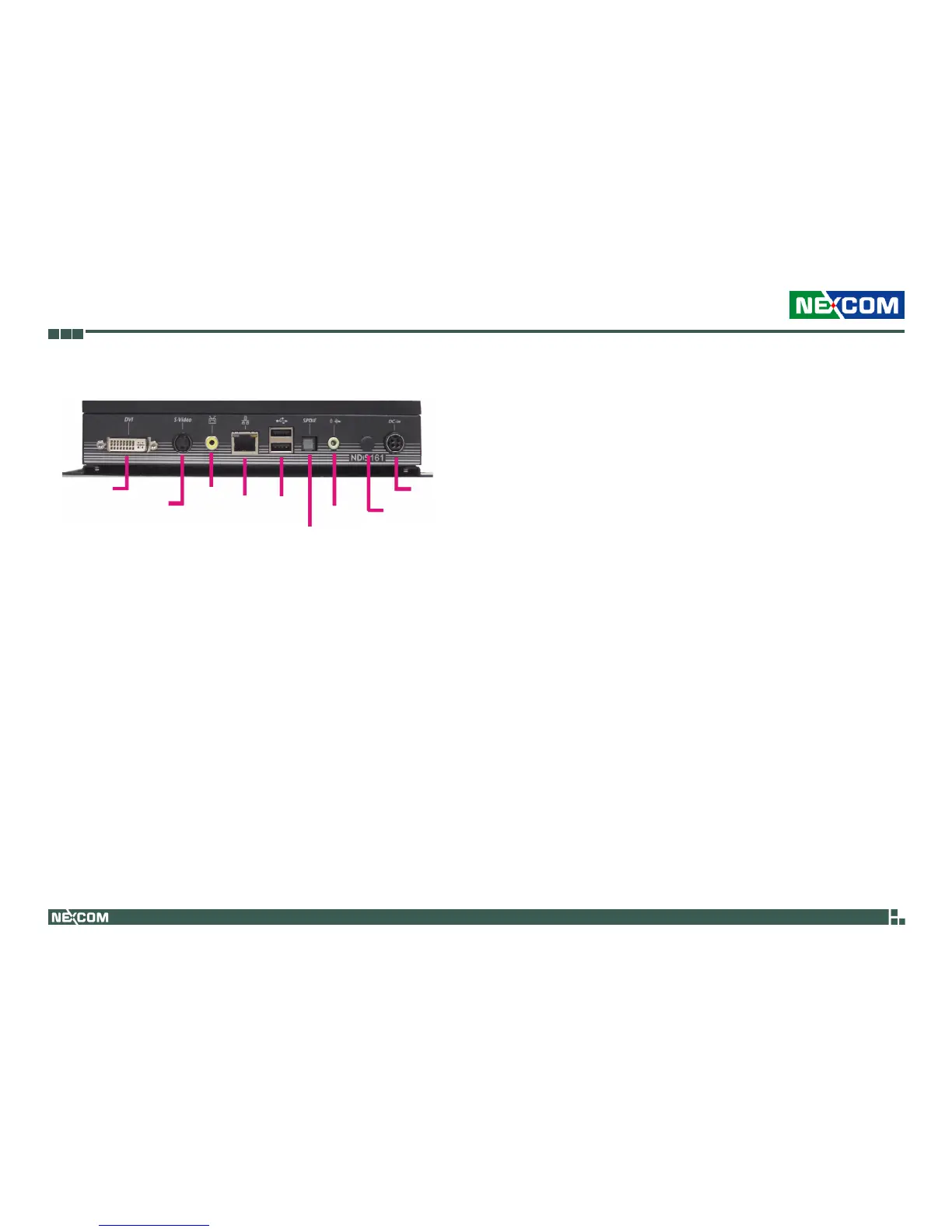

12V
DC-in
WiFi
antenna
hole
Line-out
S/PDIF
USBLAN
TV-out
S-Video
DVI
Side panel
Hardware Specifications
Main Board (NEX 661)
mPGA478 ZIF socket •
Supports Intel•
®
Core™ 2 Duo, Core™ Duo, Core™ Solo family proces-
sors with FSB 533/667MHz
Intel embedded processor list (Intel™ Longevity CPU)•
- Core™ Duo T2500
- Celeron-M 440
- FANLESS for onboard low power processor
- Core™ 2 Duo L7400
- Core™ Duo L2400, U2500
- Celeron
®
M 423
Chipset
Intel•
®
945GME
Intel•
®
ICH7-M
Main Memory
One 25° angled DIMM socket •
Supports DDR2 533/667MHz SDRAM with unbuffered and non-ECC •
memory module
Supports up to 2GB memory•
I/O Interface - Front
DB9 port x1 for RS232•
Power-on LED x1•
HDD LED x1•
USB ports x2•
ATX Power-on button x1•
Reset button x1•
I/O Interface - Side
DVI x1 (DVI-I for CRT and DVI-D output via Y-cable)•
S-Video x1•
Phone-jack x1 for composite video•
RJ45 with LED x1 for 10/100/1000Mbps Ethernet•
USB x2•
S/PDIF x1•
Phone-jack for line-out x1•
Optional antenna for WiFi x1•
+12V DC-in power x1•
Storage
SATA 2.5” HDD storage x1•
u-DOC x1•
CF type I/II x1 (optional)•
