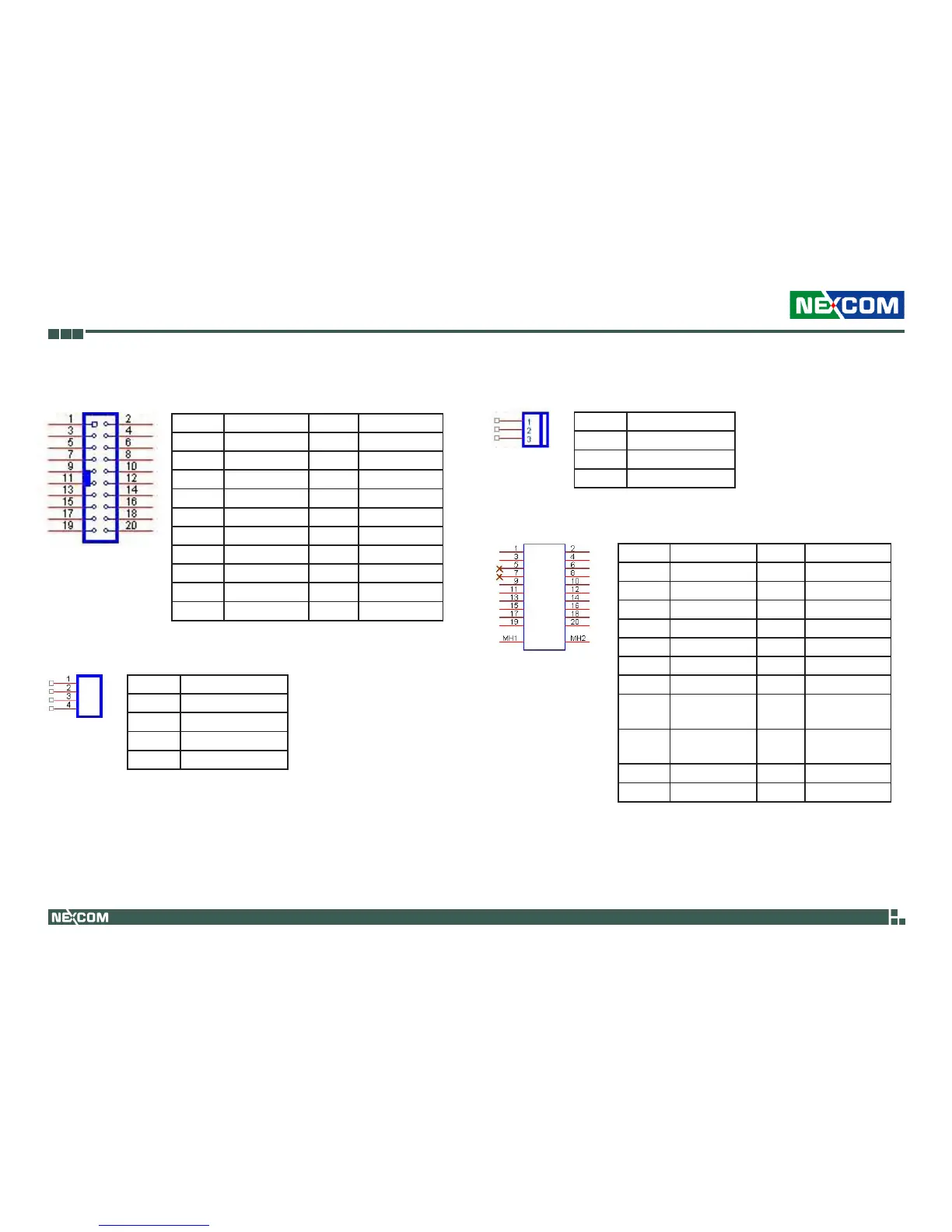

Chapter 2: Jumpers and Connectors
NDiS 161 User Manual
MIO Port
CN14
Pin Description Pin Description
01 RESET#_SW 02 GND
03 PWRBT_SW 04 GND
05 PWR_LED_P 06 PWR_LED_N
07 HD_LED_P 08 HD_LED_N
09 5VDUAL 10 5VDUAL
11 USB_4N 12 USB_5N
13 USB_4P 14 USB_5P
15 GND 16 GND
17 VCC5 18 USB_OC45
19 NC 20 NC
CPU Fan
J9
Pin Signal
1 GND
2 +12V
3 VCC5
4 CPU_FAN_J
System Fan
J4
Pin Signal
1 GND
2 +12V
3 VCC5
LVDS
CN6
Pin Signal Pin Signal
1 L_DDC_CLK 2 L_DDC_DATA
3 PANEL1_VDD 4 LA_DATAP0
5 NC 6 LA_DATAN0
7 NC 8 PANEL1_VDD
9 LVDS_GND 10 LA_DATAP1
11 LA_CLKP 12 LA_DATAN1
13 LA_CLKN 14 LVDS_GND
15 LVDS_GND 16 PANEL1_BACK-
LIGHT
17 LA_DATAP2 18 PANEL1_BACK-
LIGHT
19 LA_DATAN2 20 LVDS_GND
MH1 GND MH2 GND
