Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved.
10
Chapter 2: Jumpers and Connectors
NDiS 161 User Manual

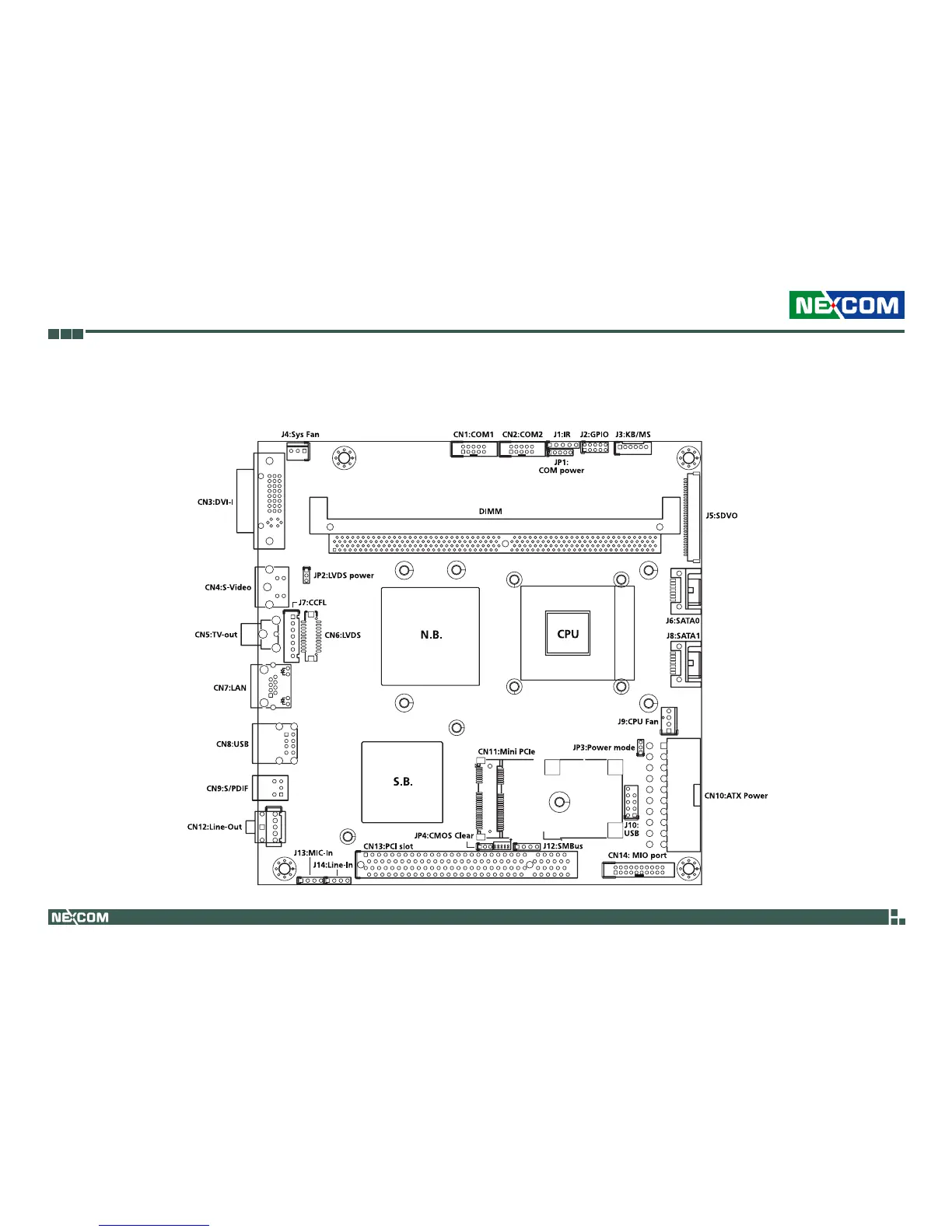

Locations of the Jumpers and Connectors
The following figure is the board used in the NDiS 161 system. It shows the locations of the jumpers and connectors.
