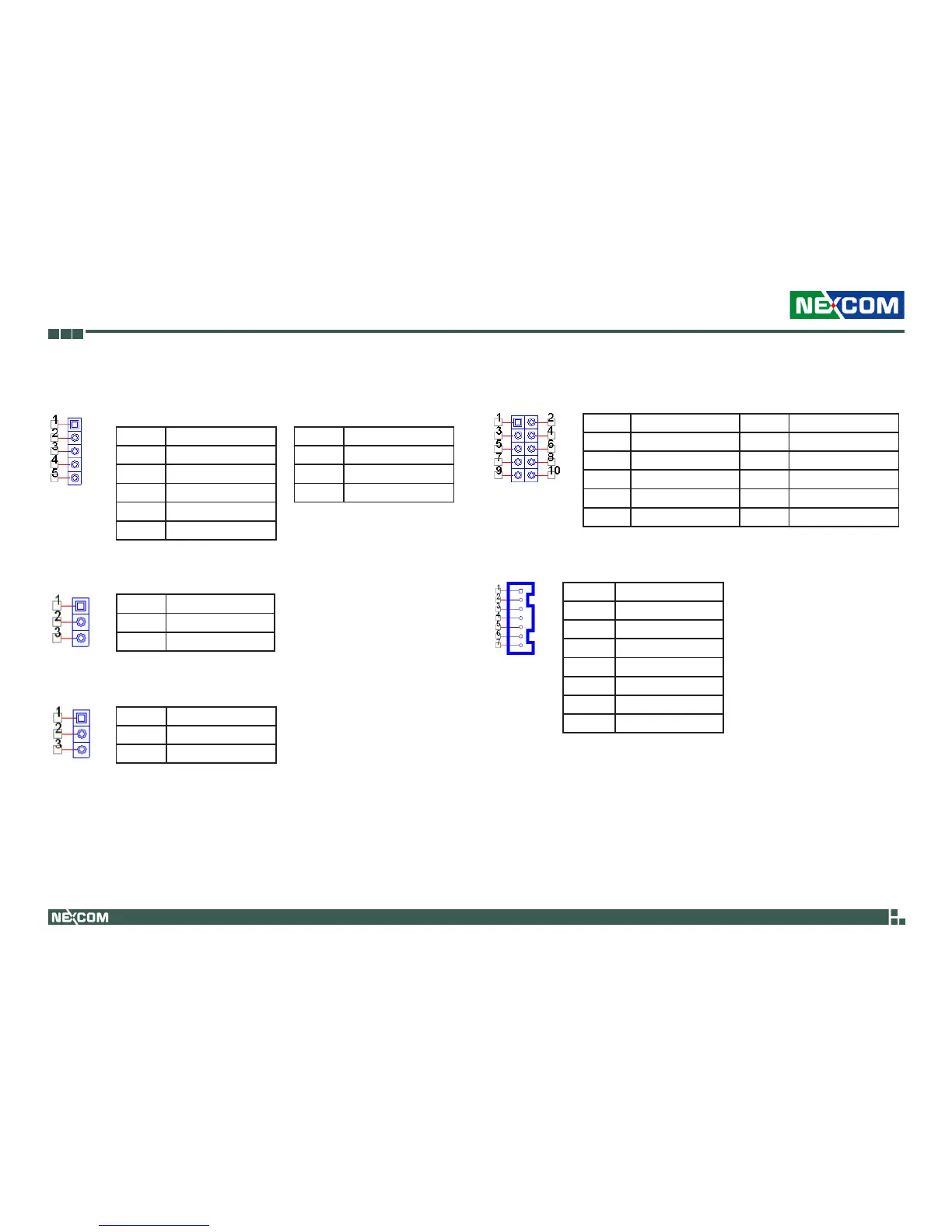

Chapter 2: Jumpers and Connectors
NDiS 161 User Manual
COM2 RS232 RI# Power Select
JP1
Pin Signal
1 VCC5
2 SP_RI2_T
3 +12V
4 SP_RI2_T
5 SP_RI2
Pin Signal
1-2 +5V
2-3 +12V
4-5* ring
Pin Definition COM2 RS232 RI# Pin Select
LVDS Power Control
JP2
Pin Description
1-2 VCC5_PANEL1
2-3* VCC3_ PANEL1
ATX Power
JP3
Pin Description
1-2 AT MODULE
2-3* ATX MODULE
USB
J10
Pin Signal Pin Signal
1 P5V_USB_P23 2 P5V_USB_P23
3 USB2- 4 USB3-
5 USB2+ 6 USB3+
7 GND_USB23 8 GND_USB23
9 NC 10 USB_OC23#
CCFL
J7
Pin Signal
1 VCC5
2 PANEL1_BACKLIGHT
3 PANEL1_BACKLIGHT
4 L_BKLTCTL
5 GND
6 GND
7 L_BKLTEN
