Chapter 2: Jumpers and Connectors
NDiS 161 User Manual

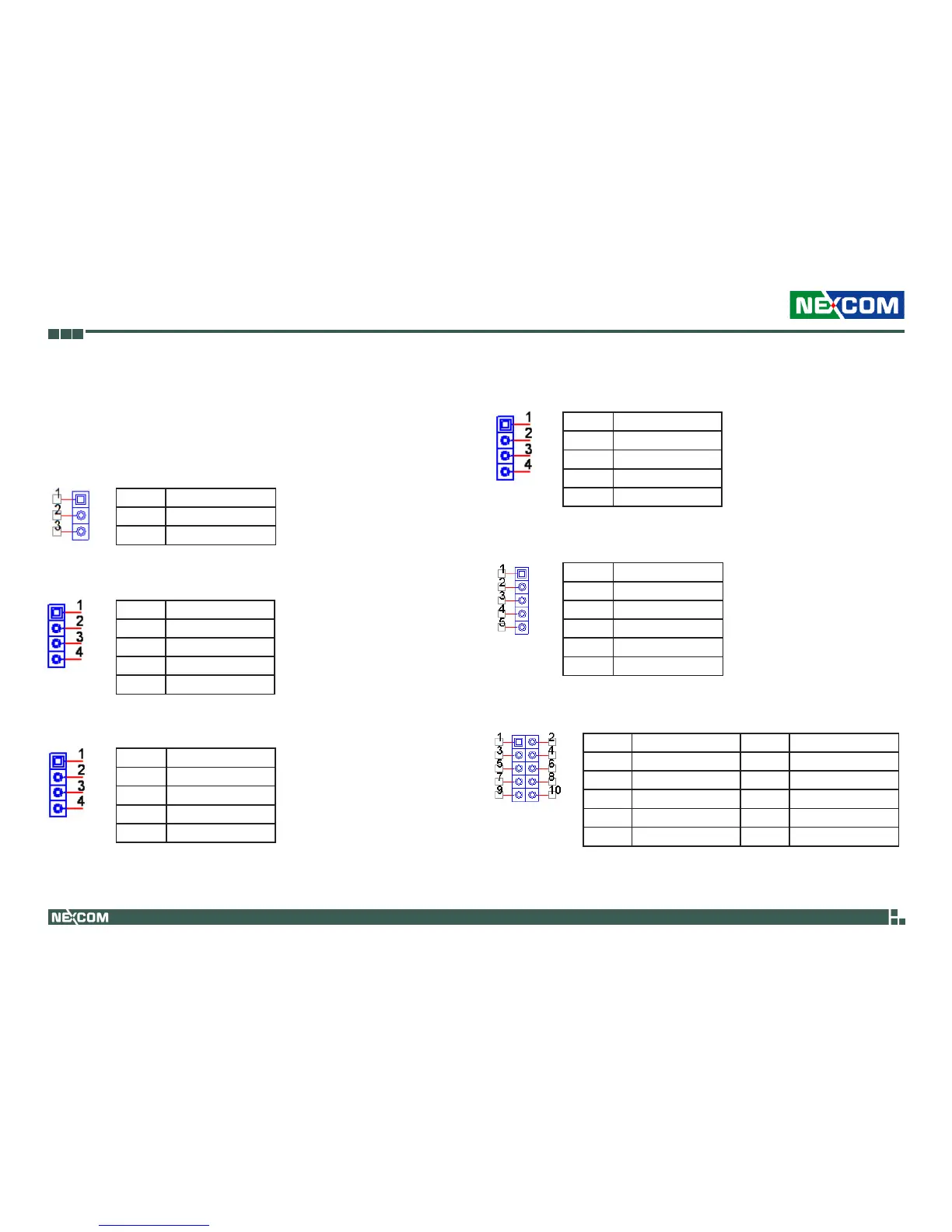

Pin Definitions
This section provides descriptions, illustrations and pin definitions of the
jumpers and connectors.
CMOS Clear
JP4
Pin Signal
1-2* Normal
2-3 Clear CMOS
SMBus
J12
Pin Signal
1 3VSB
2 SMB_CLK_RESUME
3 SMB_DATA_RESUME
4 GND
Mic-in
J13
Pin Signal
1 MIC1 _L3
2 GND
3 NC
4 MIC3 R3
Line-in
J14
Pin Signal
1 LINE_L3
2 GND
3 NC
4 LINE_R3
IR
J1
Pin Signal
1 VCC5
2 CIRRX
3 IRRX
4 GND
5 IRTX
GPIO
J2
Pin Signal Pin Signal
1 VCC5 2 GND
3 SIO_GP20 4 SIO_GP24
5 SIO_GP21 6 SIO_GP25
7 SIO_GP22 8 SIO_GP26
9 SIO_GP23 10 SIO_GP27
