Nexcom NDiS 161 - Pci Cn13

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved.
16
Chapter 2: Jumpers and Connectors
NDiS 161 User Manual

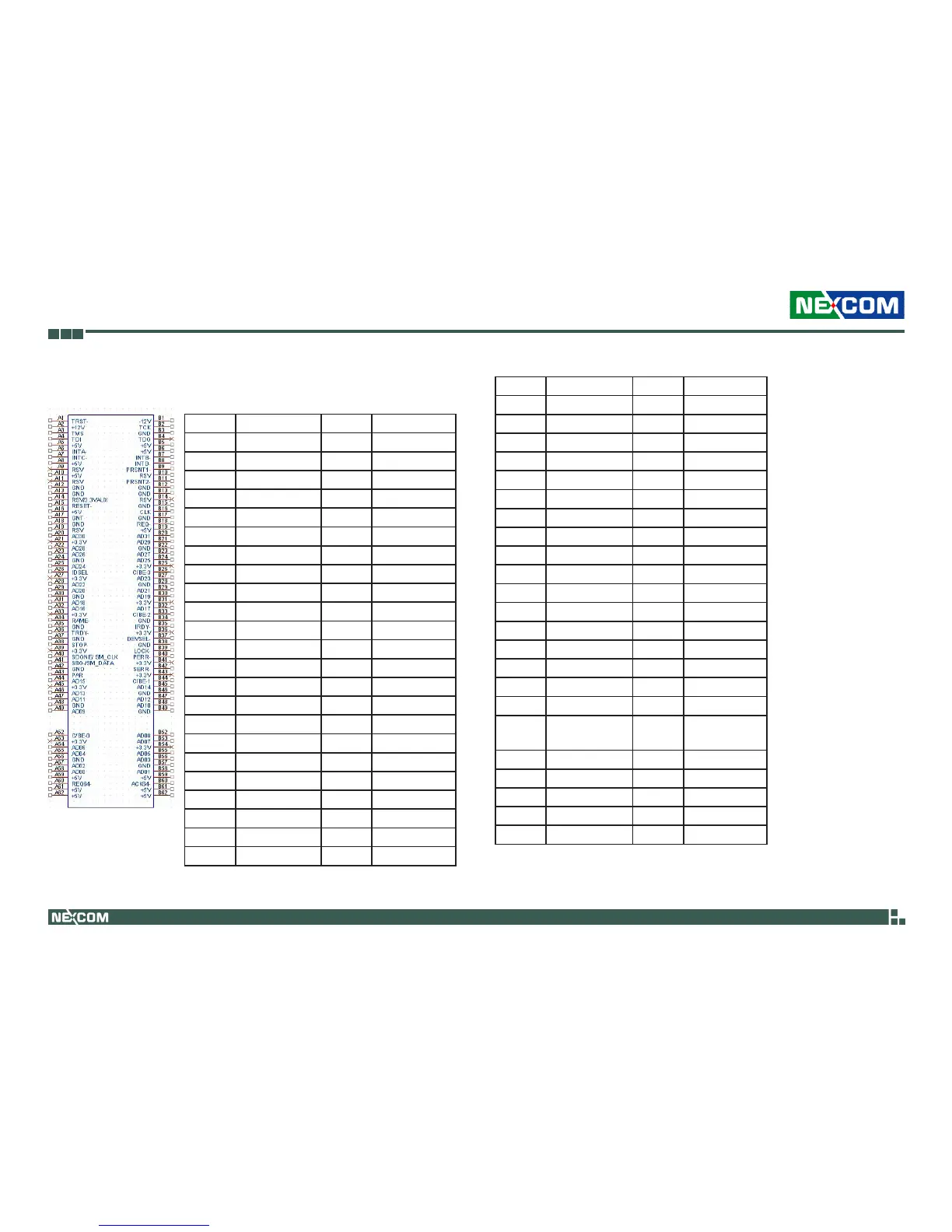

PCI
CN13
Pin Signal Pin Signal
A1 GND B1 -12V
A2 +12V B2 GND
A3 VCC5 B3 GND
A4 VCC5 B4 NC
A5 VCC B5 VCC5
A6 PCI_IRQ#A B6 VCC5
A7 PCI_IRQ#C B7 PCI_IRQ#B
A8 VCC5 B8 PCI_IRQ#D
A9 NC B9 GND
A10 VCC5 B10 PCI_REQ#1
A11 NC B11 GND
A12 GND B12 GND
A13 GND B13 GND
A14 3VSB B14 PCI_CLK1
A15 ICH_PCI_RST# B15 GND
A16 VCC5 B16 PCI_CLK0
A17 PCI_GNT#0 B17 GND
A18 GND B18 PCI_REQ#0
A19 PCI_PME# B19 VCC5
A20 PCI_AD30 B20 PCI_AD31
A21 VCC3 B21 PCI_AD29
A22 PCI_AD28 B22 GND
A23 PCI_AD26 B23 PCI_AD27
Pin Signal Pin Signal
A24 GND B24 PCI_AD25
A25 PCI_AD24 B25 VCC3
A26 PCI_AD28 B26 PCI_#3
A27 VCC3 B27 PCI_AD23
A28 PCI_AD22 B28 GND
A29 PCI_AD20 B29 PCI_AD21
A30 GND B30 PCI_AD19
A31 PCI_AD18 B31 VCC3
A32 PCI_AD16 B32 PCI_AD17
A33 VCC3 B33 PCI_CBE#2
A34 PCI_FRAME# B34 GND
A35 GND B35 PCI_IRDY
A36 PCI_TRDY# B36 VCC3
A37 GND B37 PCI_DEVSEL
A38 PCI_STOP# B38 GND
A39 VCC3 B39 PCI_LOCK#
A40 SMB_CLK_MAIN B40 PCI_PERR#
A41 SMB_DATA_
MAIN
B41 VCC3
A42 GND B42 PCI_SERR#
A43 PCI_PAR B43 VCC3
A44 PCI_AD15 B44 PCI_CBE#1
A45 VCC3 B45 PCI_AD14
A46 PCI_AD13 B46 GND
