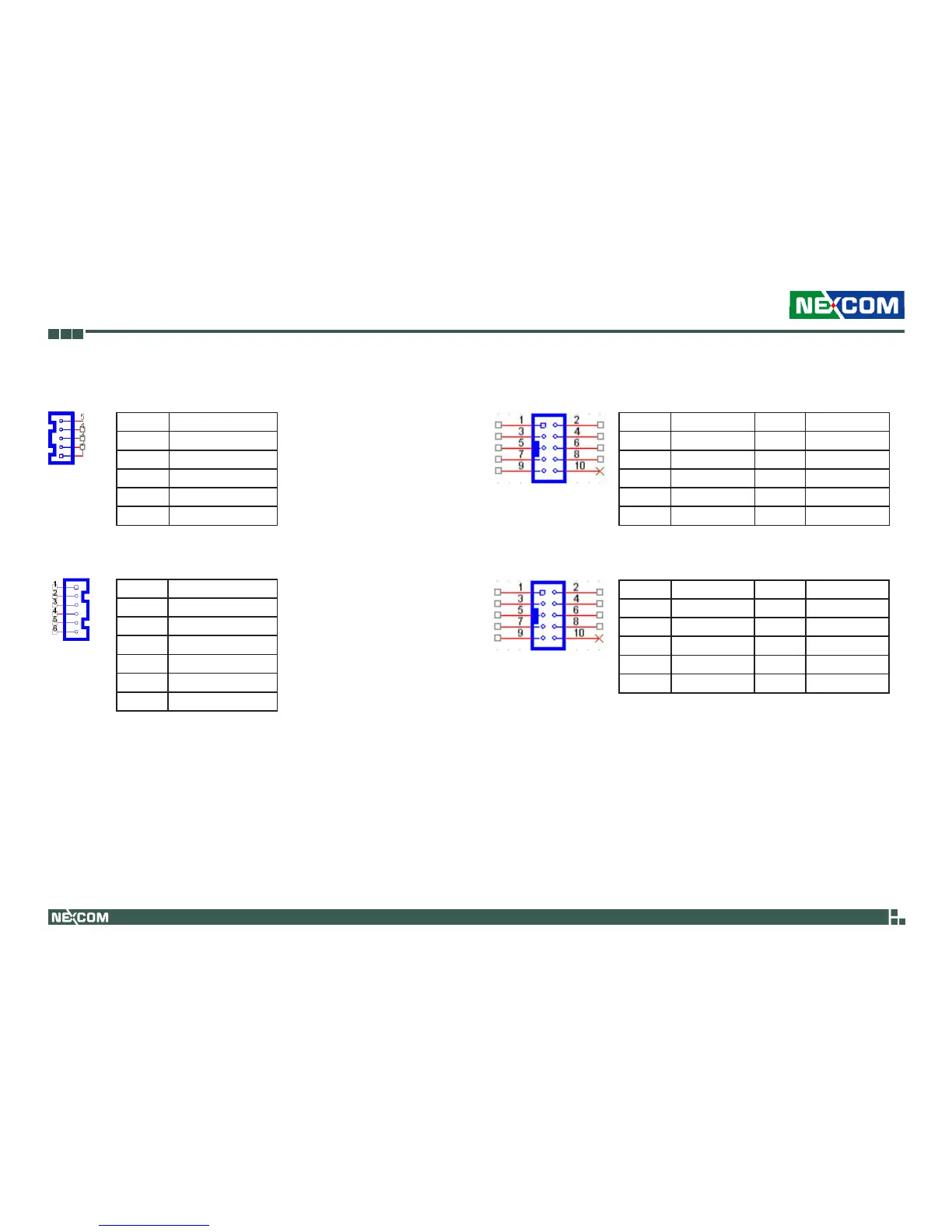

Chapter 2: Jumpers and Connectors
NDiS 161 User Manual
Audio
J11
Pin Signal
1 LOUT_R3
2 NC
3 NC
4 NC
5 LOUT_L3
KB/MS
J3
Pin Signal
1 K/M_VCC
2 LKBDAT
3 LKBCLK
4 LMDAT
5 LMCLK
6 KBGND
COM1
CN1
Pin Signal Pin Signal
1 SP_DCD1 2 SP_RXD1
3 SP_TXD 4 SP_TDR1
5 GND_SP 6 SP_DSR1
7 SP_RTS1 8 SP_CTS1
9 SP_RI1 10 GND_SP
COM2
CN2
Pin Signal Pin Signal
1 SP_DCD2 2 SP_RXD2
3 SP_TXD 4 SP_TDR2
5 GND_SP 6 SP_DSR2
7 SP_RTS2 8 SP_CTS2
9 SP_RI2 10 GND_SP
