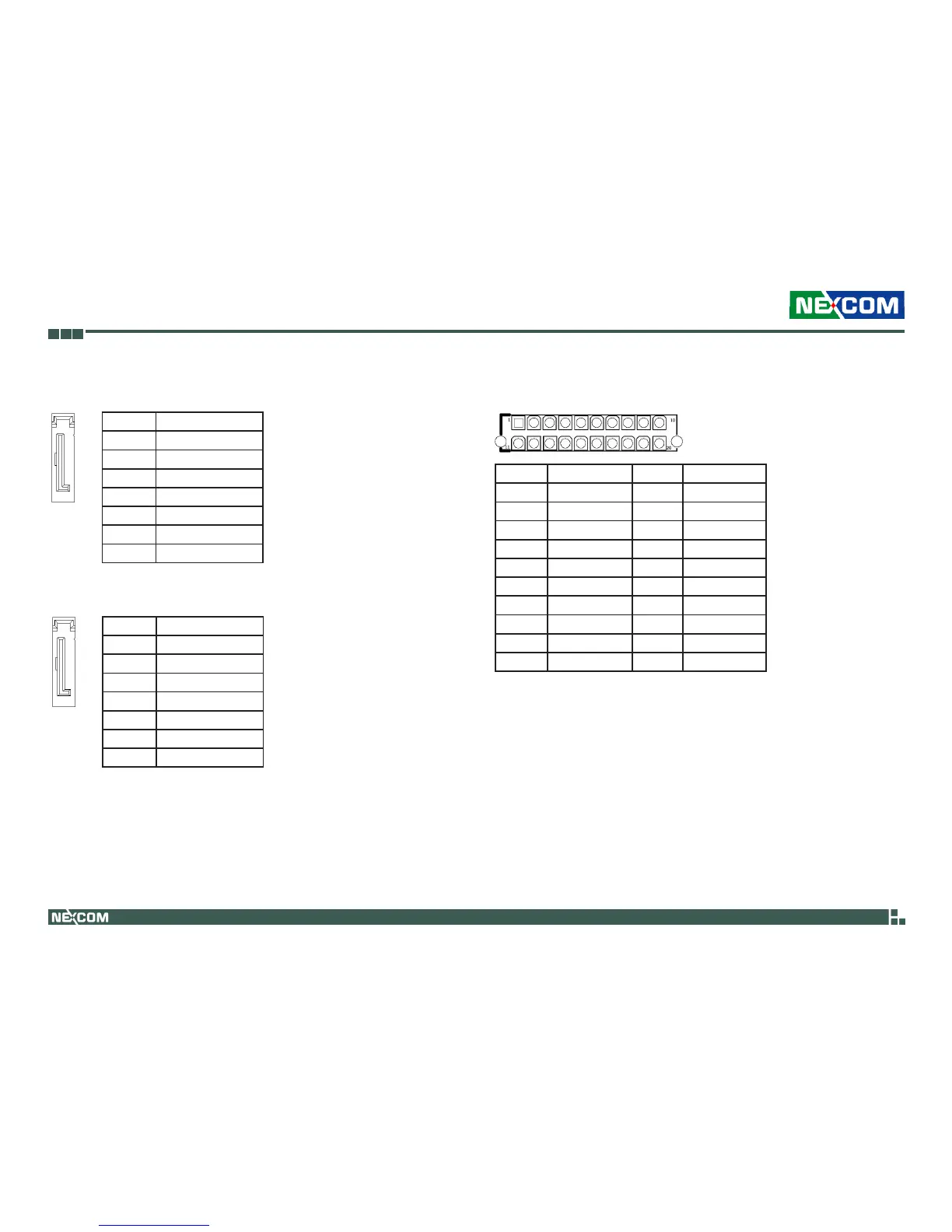

Nexcom NDiS 161 - Sata0 J6; Sata1 J8; ATX Power CN10

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved.
15
Chapter 2: Jumpers and Connectors
NDiS 161 User Manual
SATA0
J6
Pin Description
1 GND
2 TXP0
3 TXN0
4 GND
5 RXN0
6 RXP0
7 GND
SATA1
J8
Pin Description
1 GND
2 TXP1
3 TXN1
4 GND
5 RXN1
6 RXP1
7 GND
ATX Power
CN10
Pin Description Pin Description
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 GND 13 GND
4 +5V 14 Power On
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8 Power OK 18 -5V
9 +5VSB 19 +5V
10 +12V 20 +5V
