Nexcom NDiS 161 - Line-Out CN12; TV-Out CN5; S-Video CN4; DVI Cn3

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved.
19

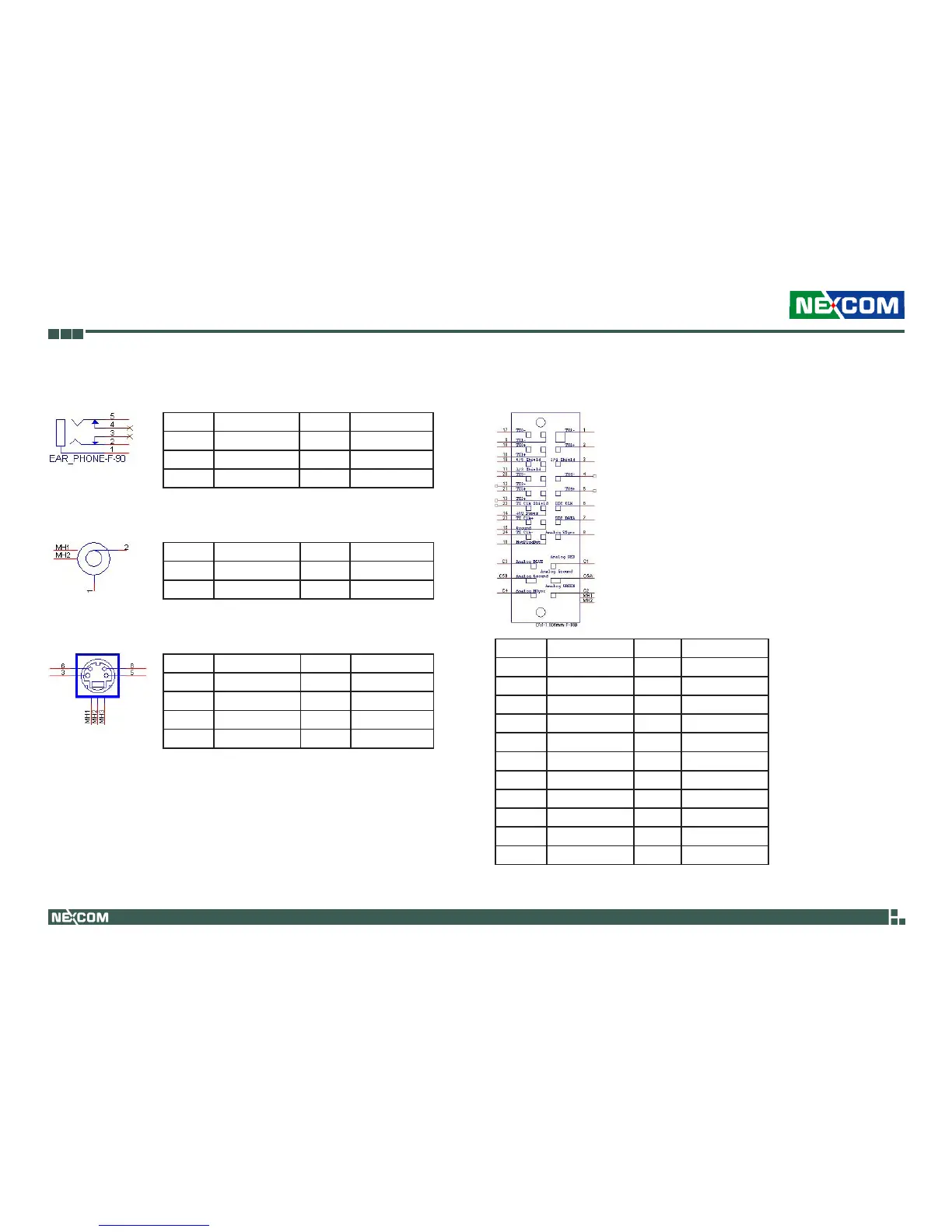

Chapter 2: Jumpers and Connectors
NDiS 161 User Manual
Line-out
CN12
Pin Signal Pin Signal
1 GND_AUD_CAS 2 LOUT_RBR
3 NC 4 NC
5 LOUT_LBR
TV-out
CN5
S-Video
CN4
Pin Signal Pin Signal
1 GND_CAS 2 CP_Pb
MH1 GND_CAS MH2 GND_CAS
Pin Signal Pin Signal
1 GND_TV_CAS 2 CP_Pb
3 GND_TV 5 GND_TV
6 CP_Pr 8 CP_Y
MH1 GND_CAS MH2 GND_CAS
DVI
CN3
Pin Signal Pin Signal
1 TDC_2# 2 TDC_2
3 GND 4 NC
5 NC 6 DVI_DDC_C
7 DVI_DDC_D 8 VS_VGA
9 TDC_1# 10 TDC_1
11 GND 12 NC
13 NC 14 DVI_VCC
15 GND 16 HPDET
17 TDC_0# 18 TDC_0
19 GND 20 CLK_V
21 DATA_V 22 NC
