Nexcom NDiS 161 - Mini Pcie CN11

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved.
18
Chapter 2: Jumpers and Connectors
NDiS 161 User Manual

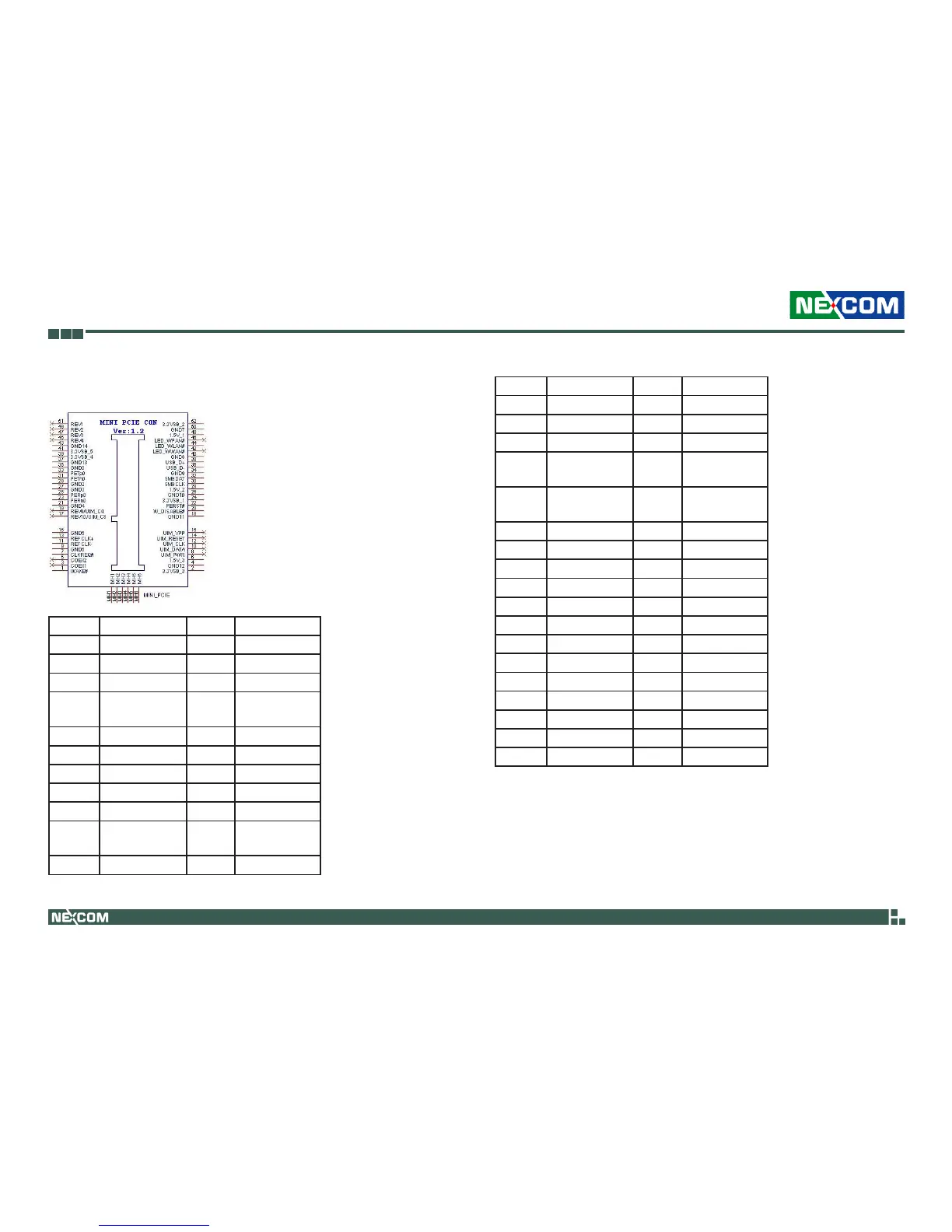

Mini PCIe
CN11
Pin Signal Pin Signal
1 PCIE_WAKE# 2 +V3.3A_MINI
3 NC 4 GND
5 NC 6 +V1.5S_MINI
7 PCIE_MINI_
CLKREQ#1
8 NC
9 GND 10 NC
11 CK_MPCIE_N 12 NC
13 CK_MPCIE_P 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 MINICARD1_
DIS#
21 GND 22 PLT_RST_BUF#
Pin Signal Pin Signal
23 PER_N1 24 +V3.3A_MINI
25 PER_P1 26 GND
27 GND 28 +V1.5S_MINI
29 GND 30 SMB_CLK_RE-
SUME
31 PET_N1 32 SMB_DATA_
REAUME
33 PET_P1 34 GND
35 GND 36 USB_6N
37 GND 38 USB_6P
39 +V3.3A_MINI 40 GND
41 +V3.3A_MINI 42 NC
43 GND 44 LED_WLAN_N
45 NC 46 NC
47 NC 48 +V1.5S_MINI
49 NC 50 GND
51 NC 52 +V3.3A_MINI
MH1 GND MH2 GND
MH3 GND MH4 GND
MH6 GND
