28
Chapter 3: System Setup
NDiS 161 User Manual

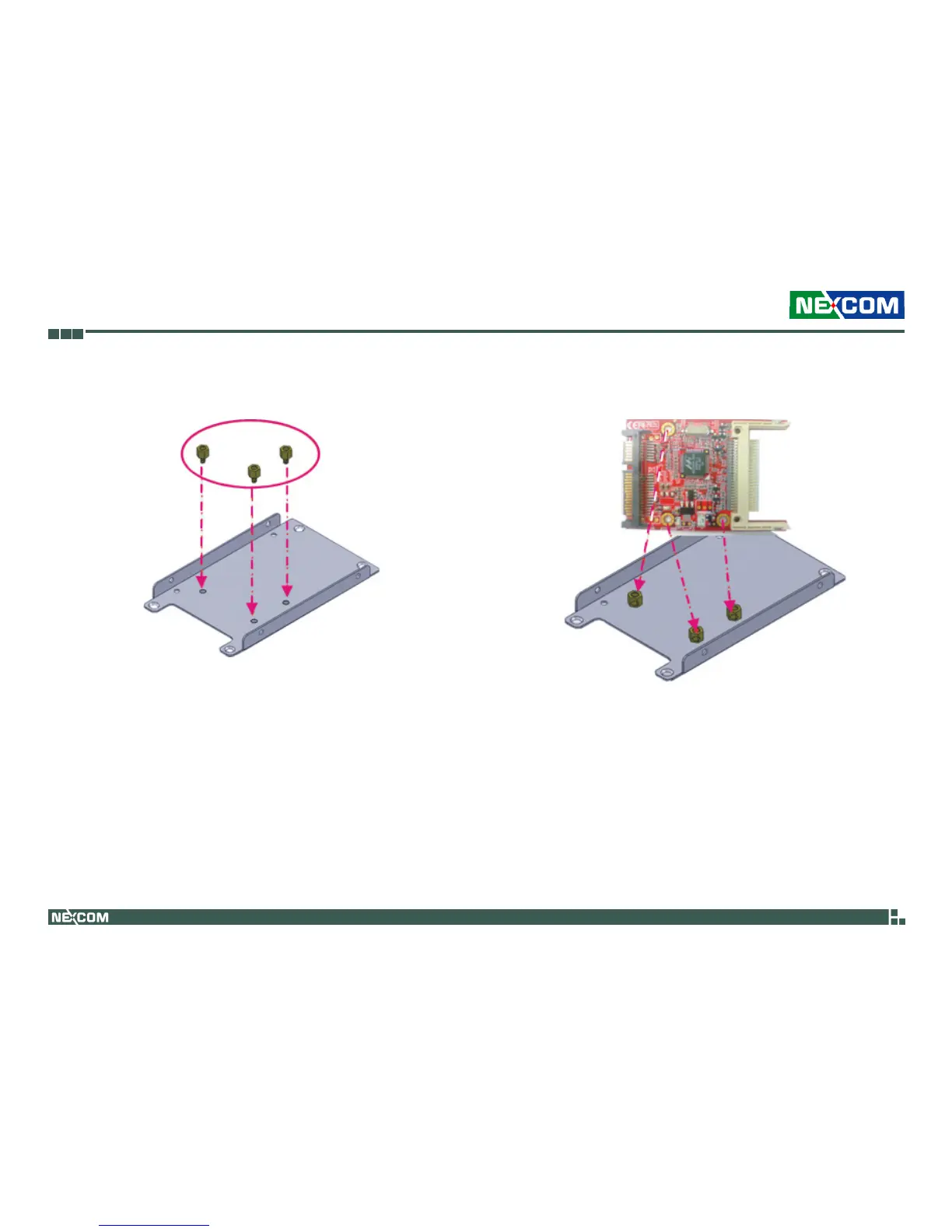

2. Attach the 3 copper studs (posts) on the drive bay as shown in the il-
lustration below.
3. Place the SATA-to-CF converter board onto the drive bay then use the
provided screws to secure the board to the bay.
