Chapter 3: System Setup
NDiS 161 User Manual

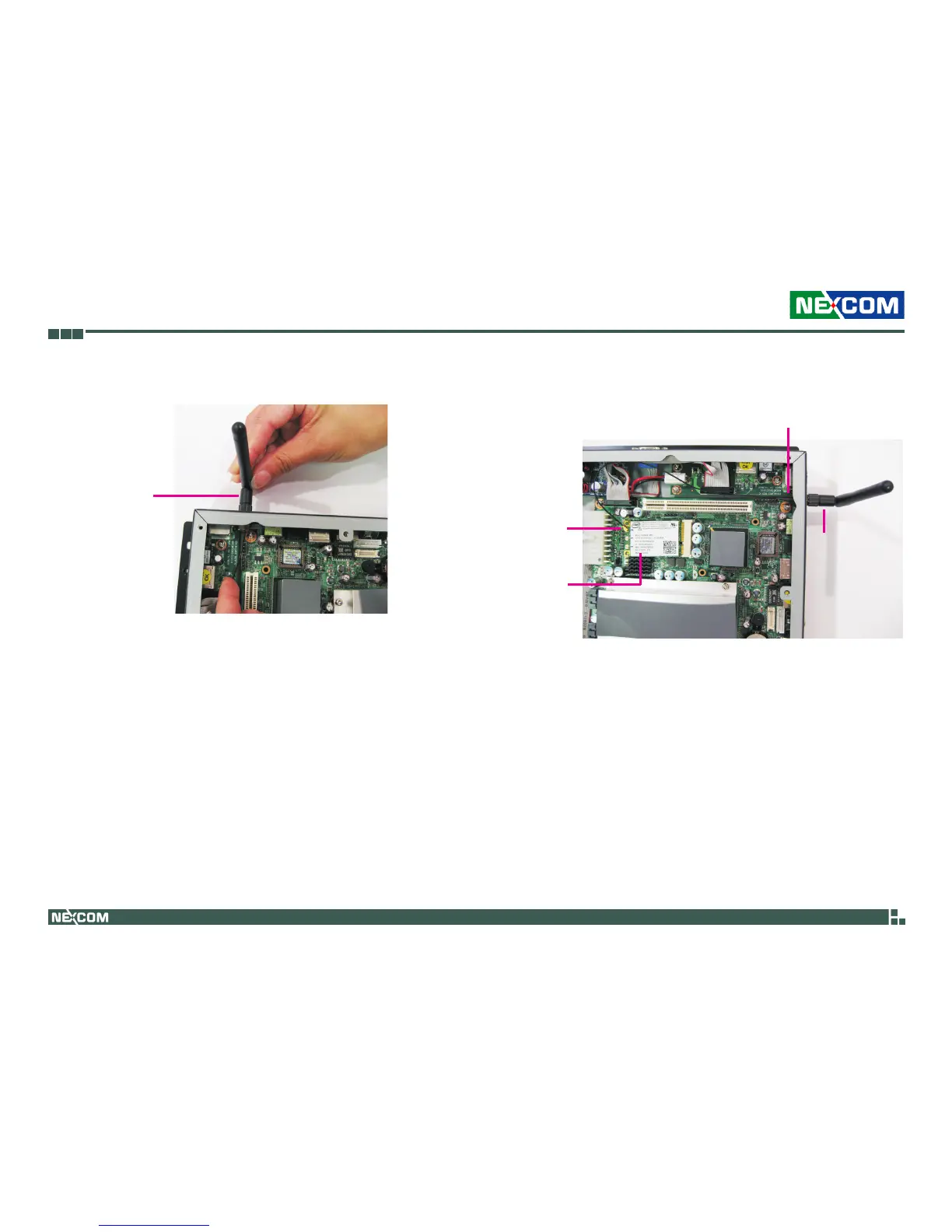

4. Now connect an external antenna to the WiFi antenna jack.
Antenna
5. The photo below shows the completed WiFi antenna setup.
RF cable attached to
the WiFi antenna hole
RF cable
attached to
the WiFi
module
WiFi
module
Antenna
