Note
Using rivets invalidates the warranty.
25 mm
41 mm
5.435 mm
48.5 mm
8 mm
3
6
m
m
14.2 mm
20.5 mm 20.5 mm
10.2 mm
1
2
.
2
m
m

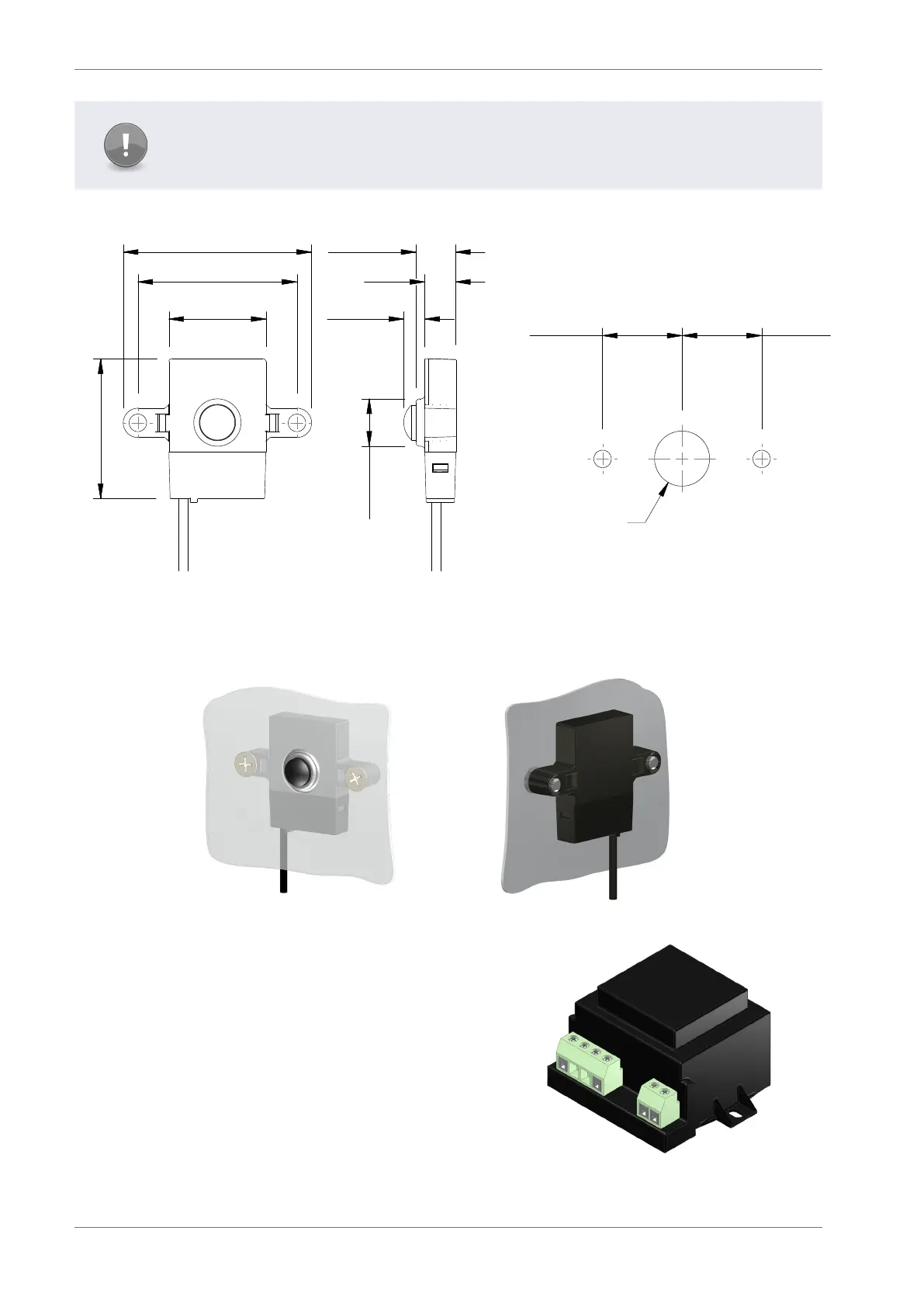

Overall dimensions of the motion sensor Dimensions of the mounting holes
Sample of a mounted motion sensor
2.4 Transformer
The CMS100 Nexo controller is powered up via the transformer
that is available in two options:
` 120VAC/50-60Hz - 12VAC Transformer
` 230VAC/50-60Hz - 12VAC Transformer
