Product Manual, Issue 8 CMS100
www.nexo.comPage 6

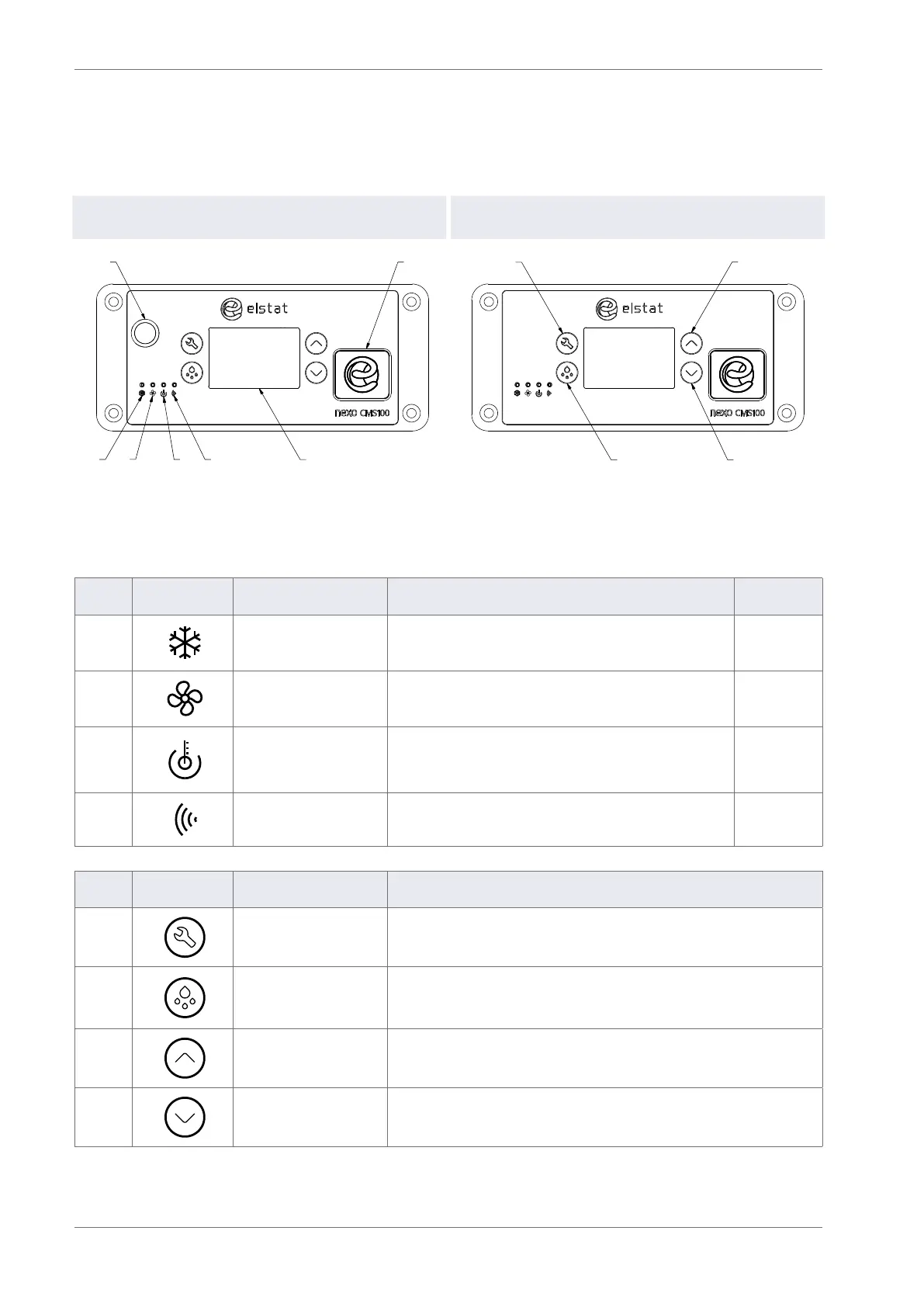

1.2 User interface
All Elstat controllers are made from food grade materials and are safe for internal installation. The
CMS100 controllers are available with either an integrated or a remote motion sensor.
Controller with integrated motion detection
(IMD)
Controller with remote motion detection
(RMD)
10
9
11
1 2 3 4
5
7
8
6
This variant should always be installed where the
sensor can ‘see’ activity. It is recommended that the
controller is installed externally on the cooler.
This variant of the controller can be installed
internally on the cooler but the remote motion
sensor must be installed where it can ‘see’ activity.
Item LED Indicator Name Function Colour
1
Compressor On when the compressor is running. Green
2
Evaporator fan On when the evaporator fan is running. Green
3
Saving temperature
disable
On if the saving temperature is disabled.
The controller maintains the Ready mode
temperatures at all times.
Red
4
Motion
On when motion sensor detects motion from
passing shoppers.
Red
Item Push Button Name Function
5
Set Accept/forward - selects menu options and parameters.
6
Defrost
Return/backward - De-selects menu options and parameters.
Activates a manual defrost
(only applicable if temp is below termination temp).
7
Up
Scrolls up menus.
Increases parameter values.
8
Down
Scrolls down menus. Decreases parameter values. Cancels the
rSF, d0 and Ht alarms.
