CMS100 Product Manual, Issue 8
www.nexo.com Page 15
2.1.3 Evaporator sensor
The evaporator sensor measures the temperature of the evaporator.

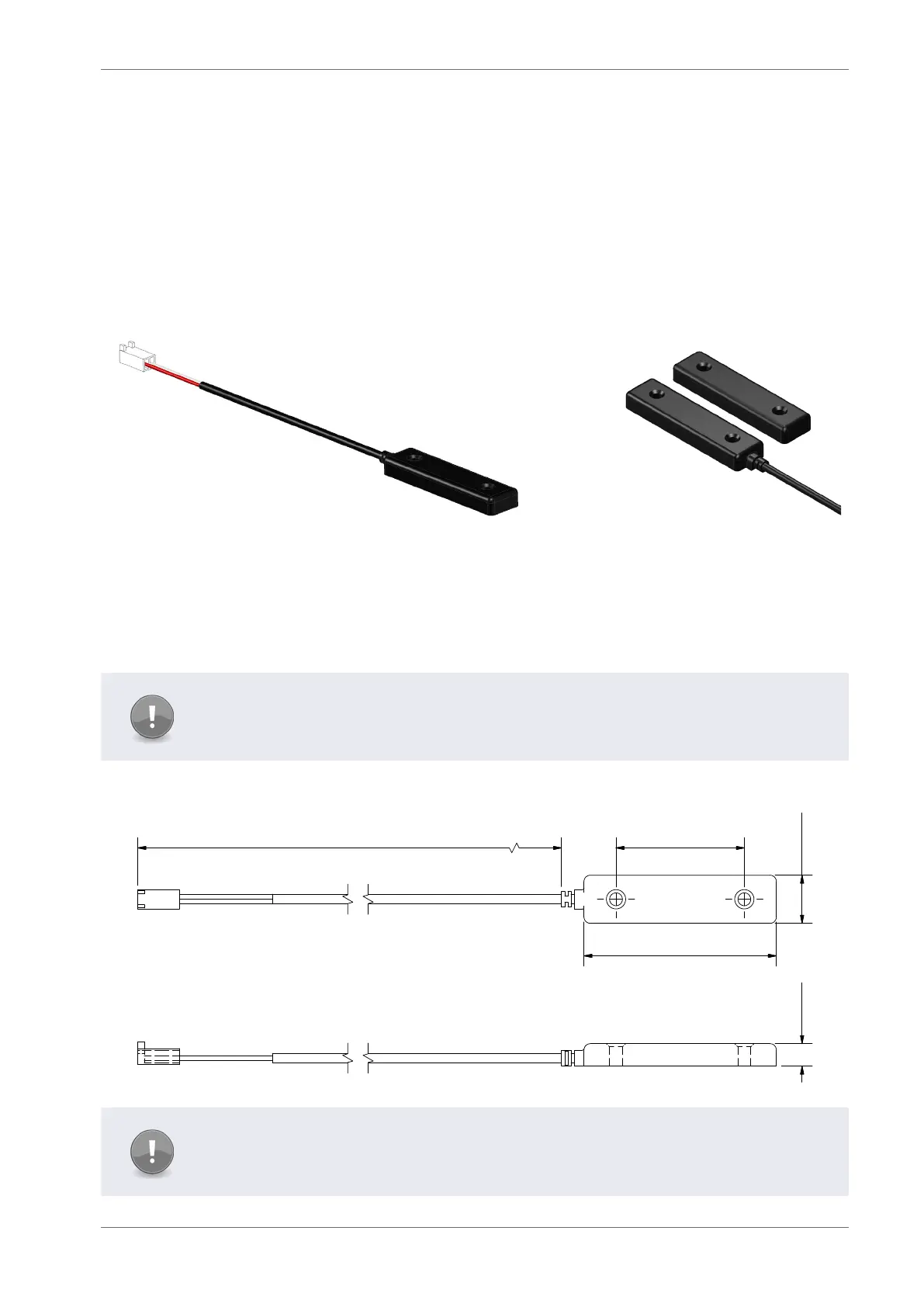

2.2 Door switch
Door switches are used to detect door openings. They are SELV components that are able to create an
open and closed circuit. The Elstat enhanced door switch, and activator, are over-moulded for increased
physical protection and resistance to water ingress.
Door switch cables are available with various cable lengths.
Door switches must be used with
the corresponding activator.
Door switches are usually mounted with the door switch on the cooler and the activator on the door. Both
components must be xed using counter sunk screws or bolts with the following characteristics:
` Head: countersunk, maximum diameter 5.0mm (0.24in)
Thread: maximum diameter 3.0mm (0.16in)
` The screws must be tightened to a maximum torque of 0.5Nm (0.37lb ft)
Note
If using non-Elstat door switches, ensure that they are double insulated.
Overall dimensions for the door switches are as shown.
60 mm
1
5
m
m
7
m
m
40 mm
L
Note
Door switches and activators supplied by Elstat must not be installed using rivets.
Using rivets invalidates the warranty.
