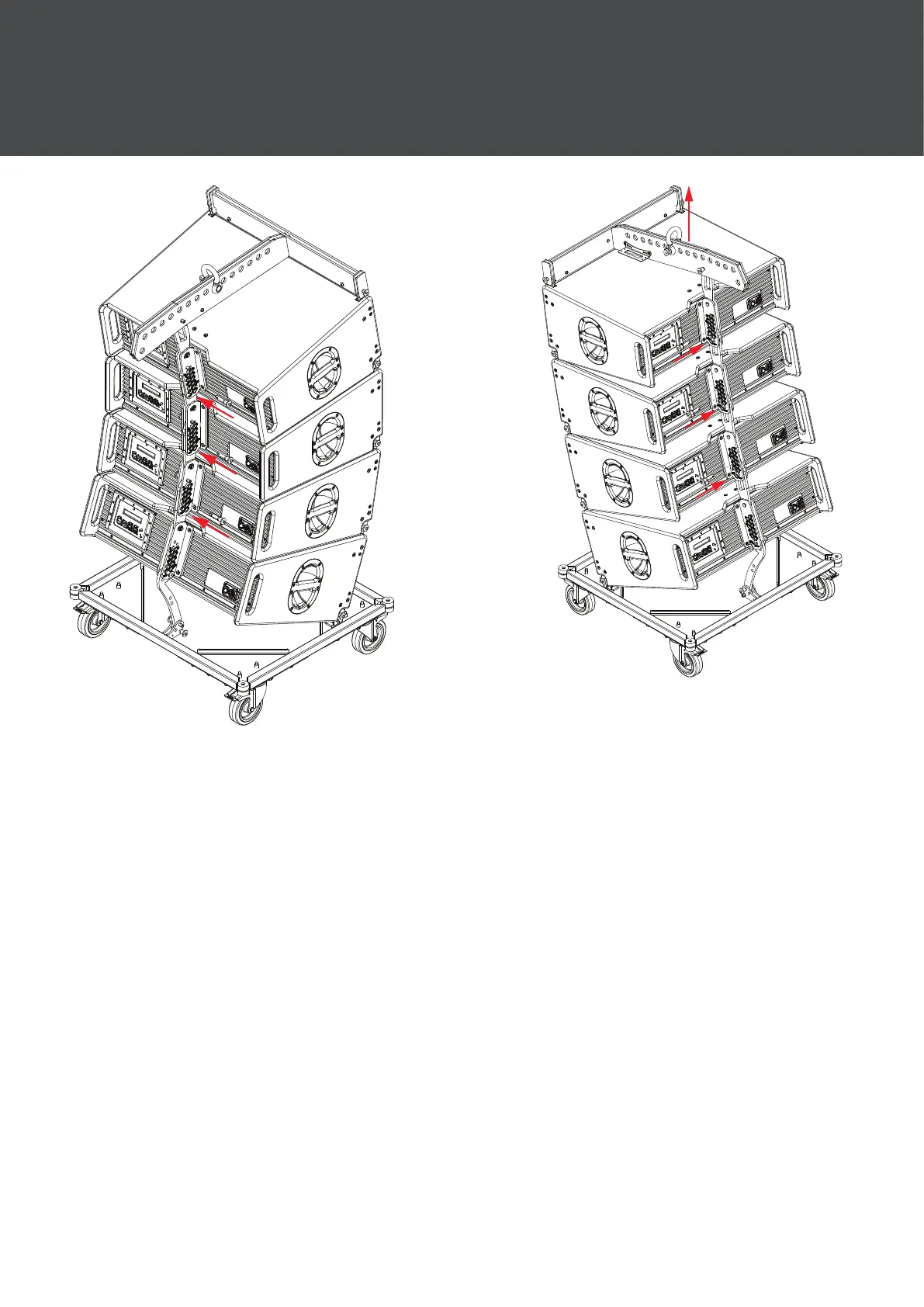

Step 3:
For the top three cabinet remove
the right hand pins and insert into
the required angle. Once they are in
place raise the y frame to engage
the pins.
Step 4:
Move the left hand pins into the
required hole to lock the rigging
assembly in place.
4 Mechanical Congurations
