4.3 Modulation
4-48 WF1945B

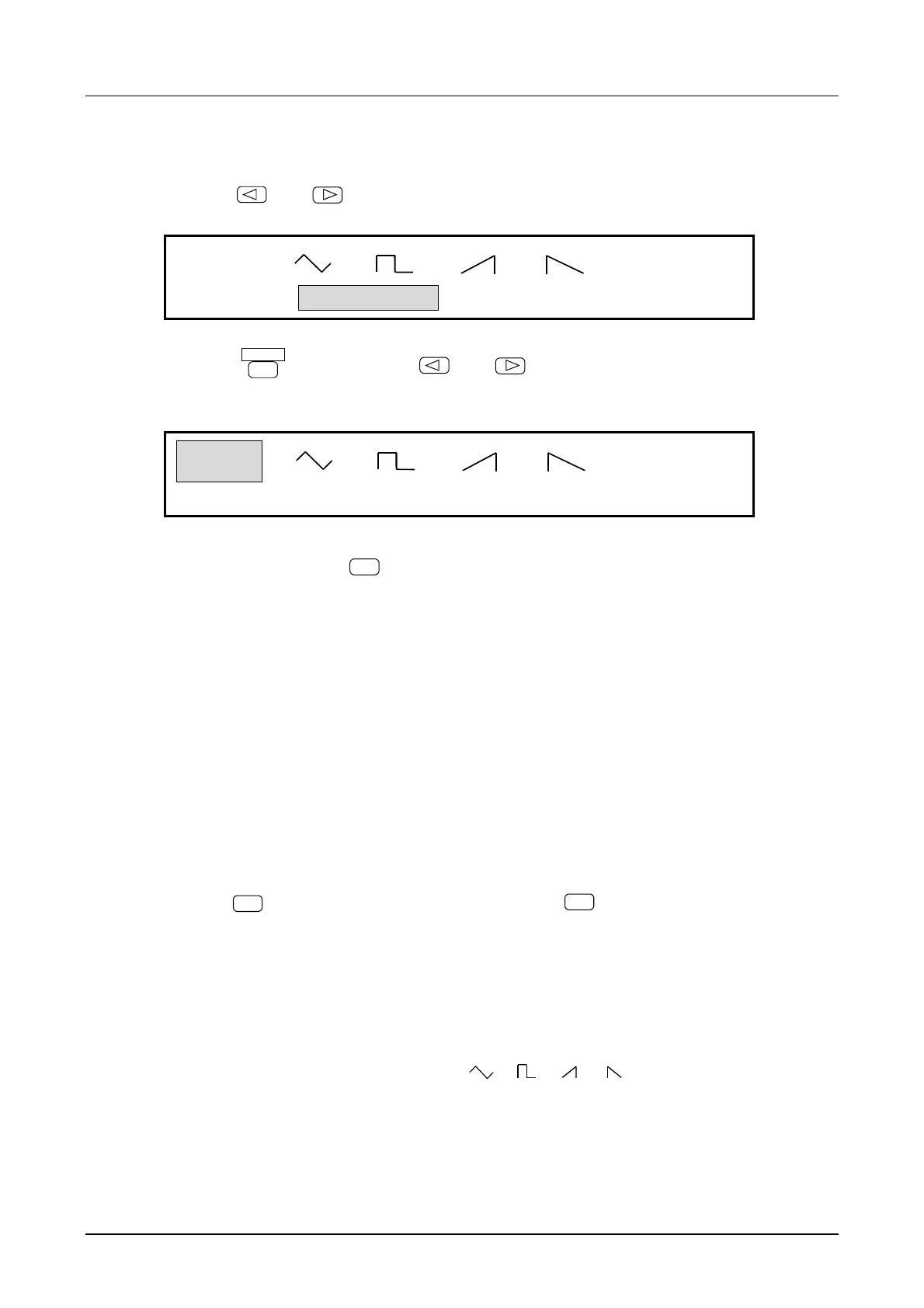

(4) Select modulation waveform (FUNCTION)
① Use the
and keys to produce the following display (FUNCTION flashes).
ＳＩＮ
ＯＦＳＭ：
3
ＦＵＮＣＴＩＯＮ
② Press the
ENTER
key, then use the and keys to produce the following display (SIN
flashes).
ＳＩＮ
ＯＦＳＭ：
3
ＦＵＮＣＴＩＯＮ
③ After selecting, press the
EXIT
key to release the setting mode.
The above completes DC offset modulation setting.
Other operations:
• Amplitude setting vs. maximum amplitudes
: Max. amplitude = Amplitude setting + DC offset deviation
• When the oscillation mode is changed to modulation (MODU), modulation occurs at the setting at that
time point.
To stop modulation
: Press the
STOP
key. Resume modulation by pressing the
START
key.
• Setting items at DC offset deviation (MODU menu)
TYPE: OFSM
DEVIATION (dc offset deviation) [V]
FREQ (modulation frequency) [Hz]
FUNCTION (modulation waveform) [SIN,
, , , ]
