4.2 Sweep
4-26 WF1945B
• START-STATE and STOP-STATE : Respectively set the output start and stop values. Since the
sweep auxiliary output becomes the respective start and stop
states, the full scale of the recorder can be adjusted and the
state of external equipment can be checked.
The Start-State is the same as pressing the
STOP
key (during
single sweep).
Relation ship between sweep values and sweep auxiliary output
"4.2 Sweep (■Sweep value and Z-MARKER/SYNC/
X- DRIVE outputs)", cf.
• Sweep type set to duty : Output waveform fixed to squarewave (variable duty) and
waveform (Function) cannot be selected.

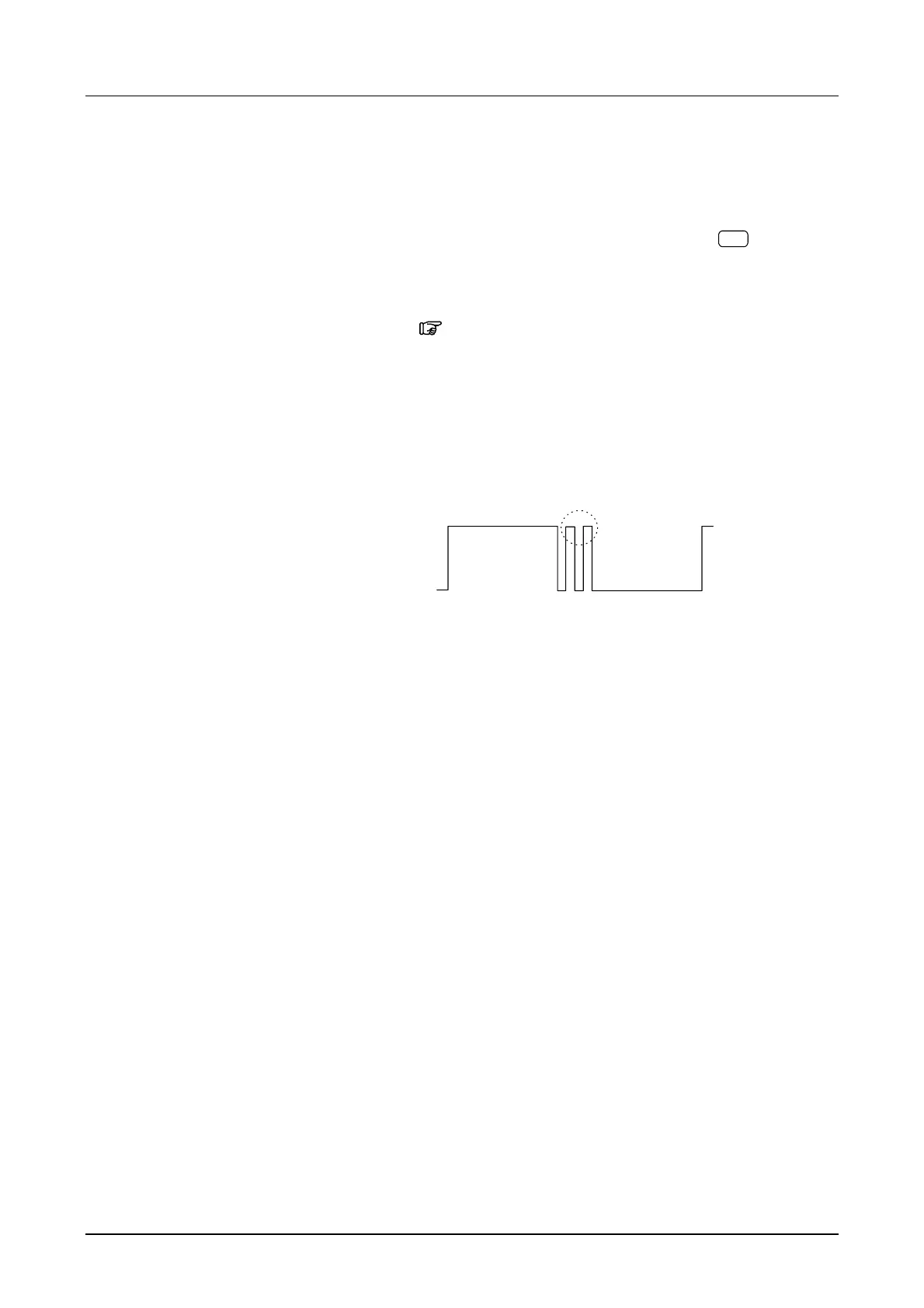

During sweep, multiple pulses may be produced within 1
period output as indicated in the figure.
