NF WF1945B - Sweep (Mode: Continuous)

4.2 Sweep
4-22 WF1945B
 Sweep (Mode: Continuous) (
MODE
→
SWEEP
→ MODE : CONT)

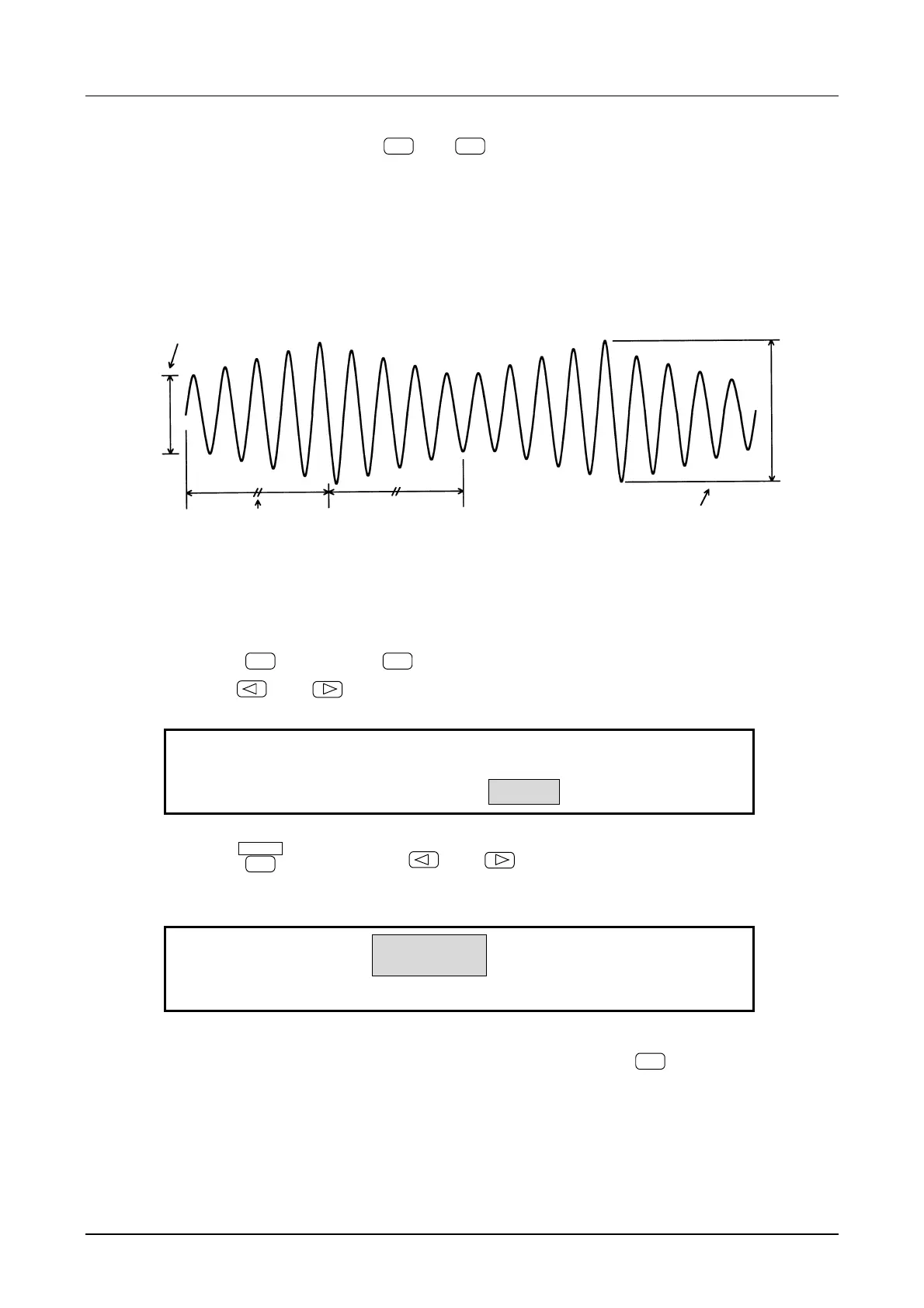

In a Sweep (Mode: Continuous), oscillation occurs by varying parameters such as the frequency and
amplitude continuously between the start and stop settings.
Operation is described for producing a waveform output with linear and continuously frequency.
The waveform is a sinewave with arbitrary Amplitude and DC offset.
Start amplitude: 1Vp-p
Stop amplitude: 2Vp-p
Sweep time: 2 seconds
Operation:
(1) Set sweep MODE to continuous (CONT)
① Press the
MODE
key, then the
SWEEP
key.
② Use the
and keys to produce the following display (MODE flashes).
ＳＩＮＧＬＥ ＣＯＮＴ ＧＡＴＥＤ
Ｆ－ＳＷＰ：ＴＹＰＥ ＳＯＵＲＣＥ ＭＯＤＥ
4
③ Press the
ENTER
key, then use the and keys to produce the following display
(CONT flashes).
ＳＩＮＧＬＥ ＣＯＮＴ ＧＡＴＥＤ
Ｆ－ＳＷＰ：ＴＹＰＥ ＭＯＤＥ ＦＵＮＣＴＩＯＮ ＳＴＡＲＴ
4
④ This completes setting the sweep mode to continuous. Press the
EXIT
key once to release the
setting mode.
