4.1 Burst oscillation
WF1945B 4-9
Oscillation stops at end of a hal
cycle, when gate signal is low level.
• Burst oscillation (Type: Trigger) setting items (BURST menu)
TYPE: TRIG
SOURCE (trigger source) [EXT
, EXT , INT [s]]
DELAY (trigger delay) [s]
MARK (oscillation cycle) [cycle]
STOP-LEVEL [OFF, ON[%]]
PHASE (phase when oscillation starts) [deg] * ENTRY menu
Burst oscillation (Type: Gate) (
MODE
→
BURST
→ TYPE : GATE)

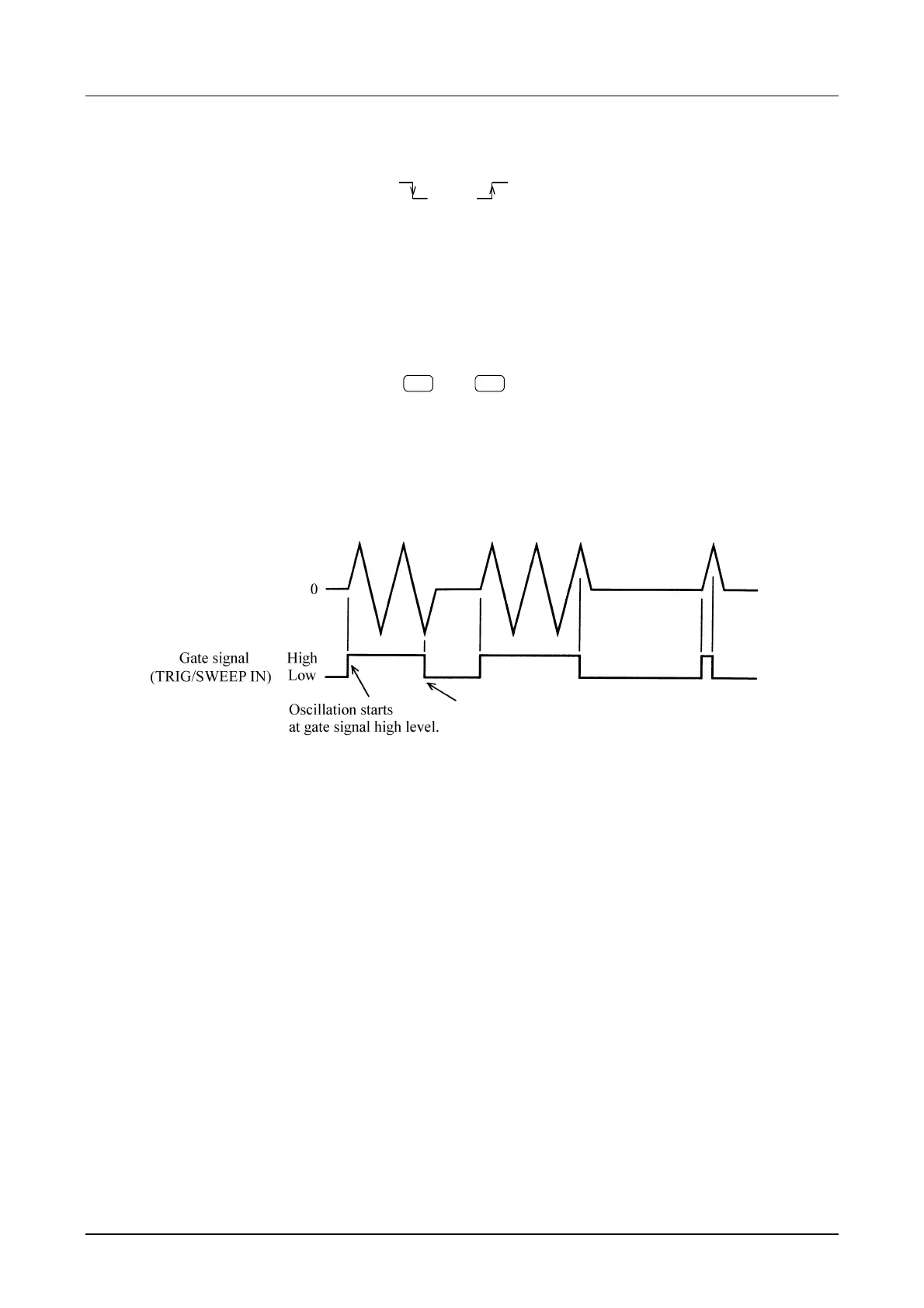

Burst oscillation (Type: Gate) is intermittent with start and stop according to the trigger signal level.
Operation is described with reference to an example of producing a waveform output such as indicated in
the figure in response to an external gate signal.
The example is a triangular waveform, DC offset 0 V, oscillation start phase 0 degrees, frequency and
amplitude arbitrary.
