5.1 Convenient Settings
5-6 WF1945B
Other:

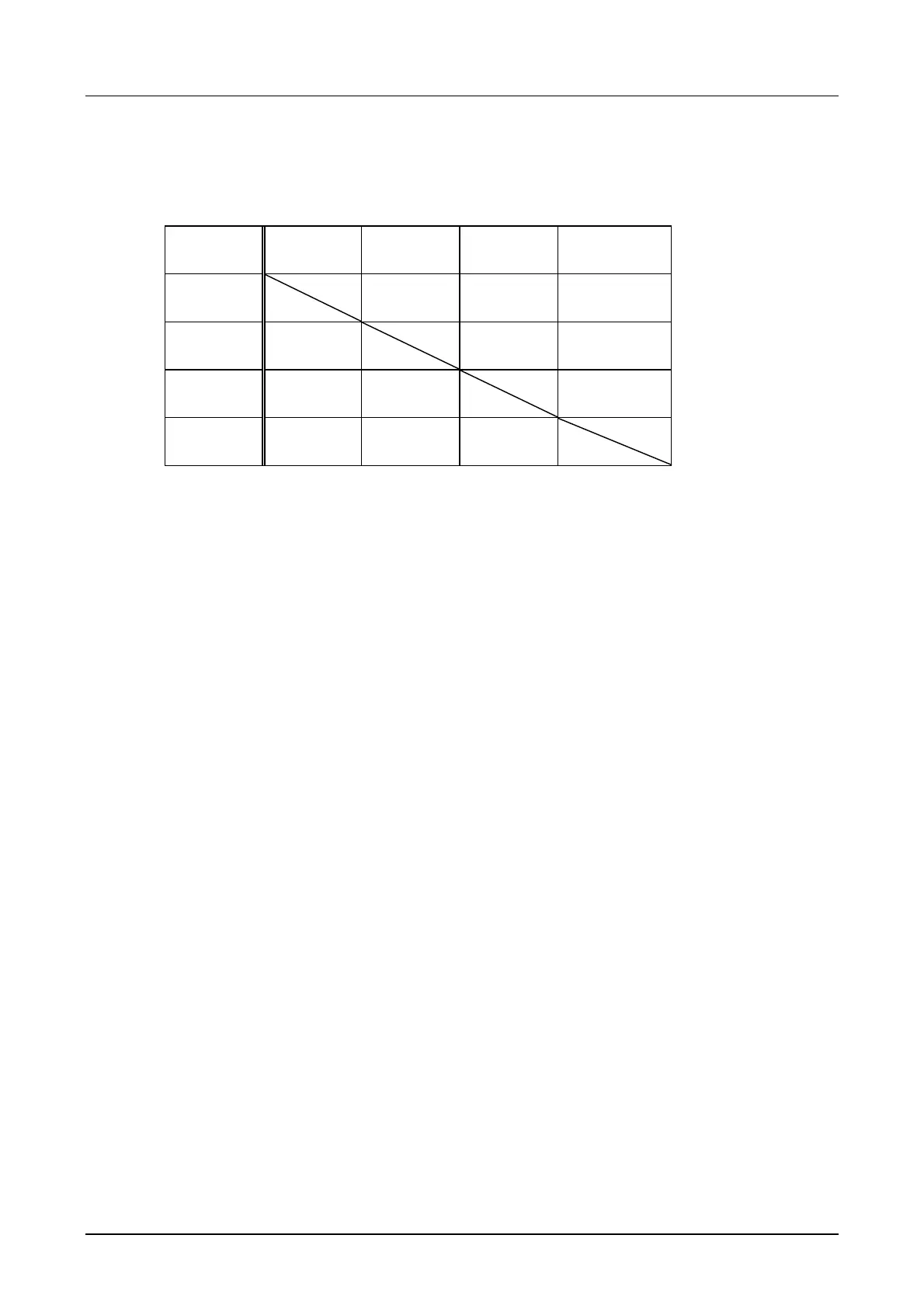

The table indicates the effects on other parameters when the amplitude, DC offset, high level or low level
is changed
Change
↓
Amplitude
(AMPTD)
DC offset
(OFFSET)
High level
(HIGH)
Low level
(LOW)
Amplitude
(AMPTD)
Unchanged Changed Changed
DC offset
(OFFSET)
Unchanged Changed Changed
High level
(HIGH)
Changed Changed Unchanged
Low level
(LOW)
Changed Changed Unchanged
• Due to the relationships between high and low level settings, relationship between amplitude and DC
offset settings, or the setting of the external addition and external AM, when the output voltage
exceeds the following values, the Over lamp flashes and the output is clipped in some cases.
10 V range: Approx. 11 V peak/open time
1 V range: Approx. 1.1 V peak/open time
